Hager BRS6513059016 squadretta piatta 130mm larghezza 65mm altezza bianco

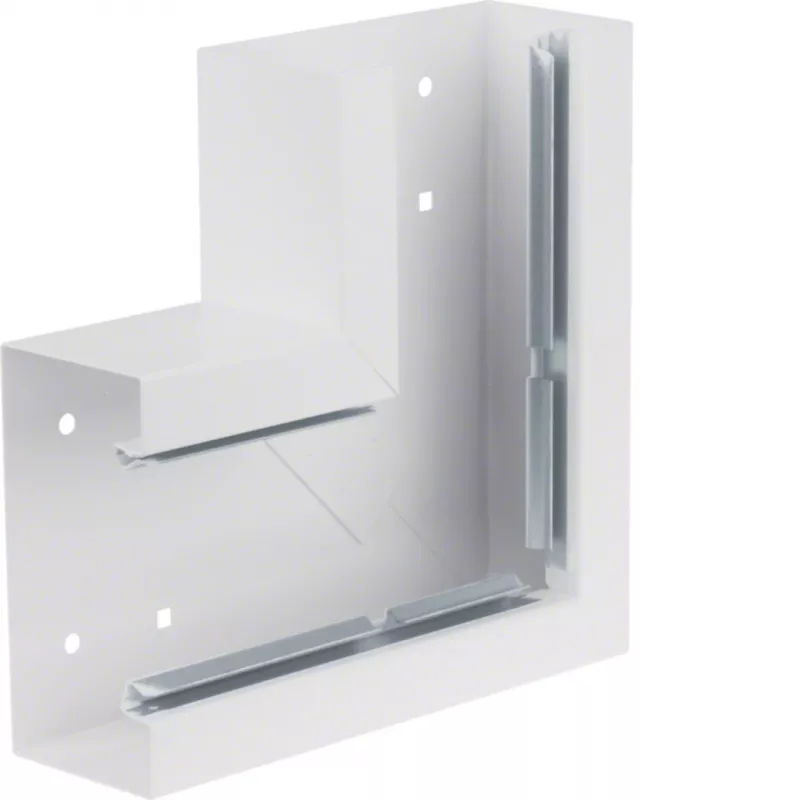

Hager BRS6513059016 Flat Angle for 130mm wide trunking, 65mm height, in pure white. This horizontal 90-degree corner piece is made from halogen-free PC/ABS, offering UV stability and impact resistance (IK07).

Overview

The Hager BRS6513059016 is a flat angle component designed for the Hager tehalit.BRS cable trunking system. It enables clean 90-degree horizontal bends in trunking runs with a width of 130 mm and height of 65 mm. The piece clips onto the trunking, ensuring a secure and seamless connection.

What stands out

• Halogen-free PC/ABS material for enhanced safety in case of fire
• Pure white (RAL 9010) finish blends with standard trunking
• UV stable for long-term indoor use without discoloration
• Impact resistance IK07 for durability in high-traffic areas

Technical details

• Product type: Flat angle / horizontal corner piece
• System compatibility: Hager tehalit.BRS cable trunking
• Trunking width compatibility: 130 mm
• Trunking height compatibility: 65 mm
• Angle: 90 degrees (horizontal)
• Material: PC/ABS (Polycarbonate/Acrylonitrile Butadiene Styrene)
• Colour: Pure white (RAL 9010)
• Halogen-free: Yes
• Protection class: IP40
• Impact resistance: IK07
• Operating temperature range: -5 °C to 60 °C
• Glow-wire test: 850 °C (IEC 60695-2-11)
• Mounting type: Clip-on / snap-on
• UV stability: Yes
• Application: Routing cables around horizontal 90-degree corners
• Number of pieces: 1

Our verdict

A precise and robust corner piece that maintains the integrity of your trunking installation. Its halogen-free and UV-stable construction ensures long-term performance and safety.
