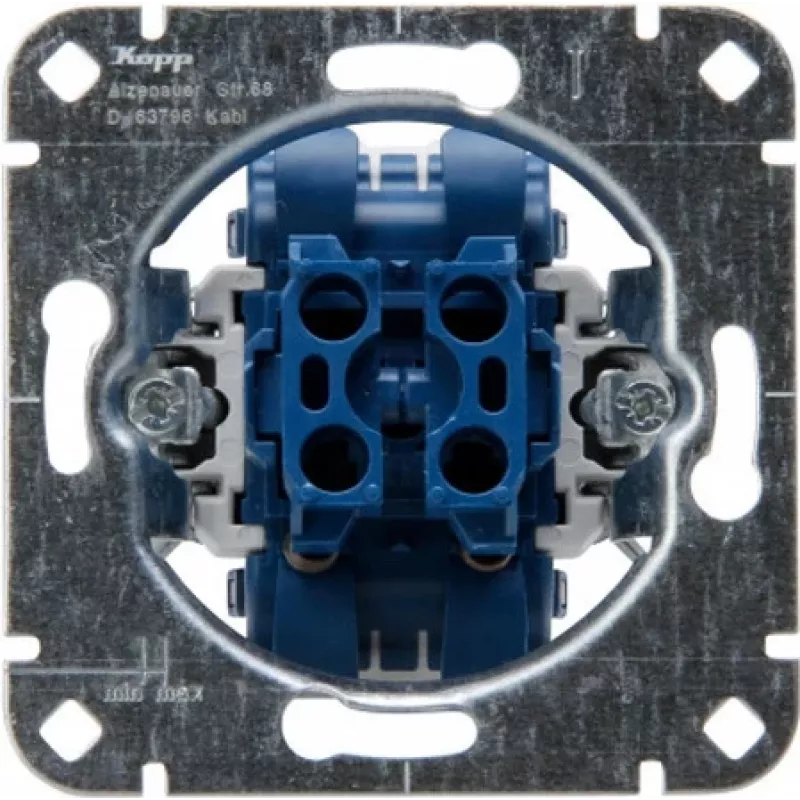

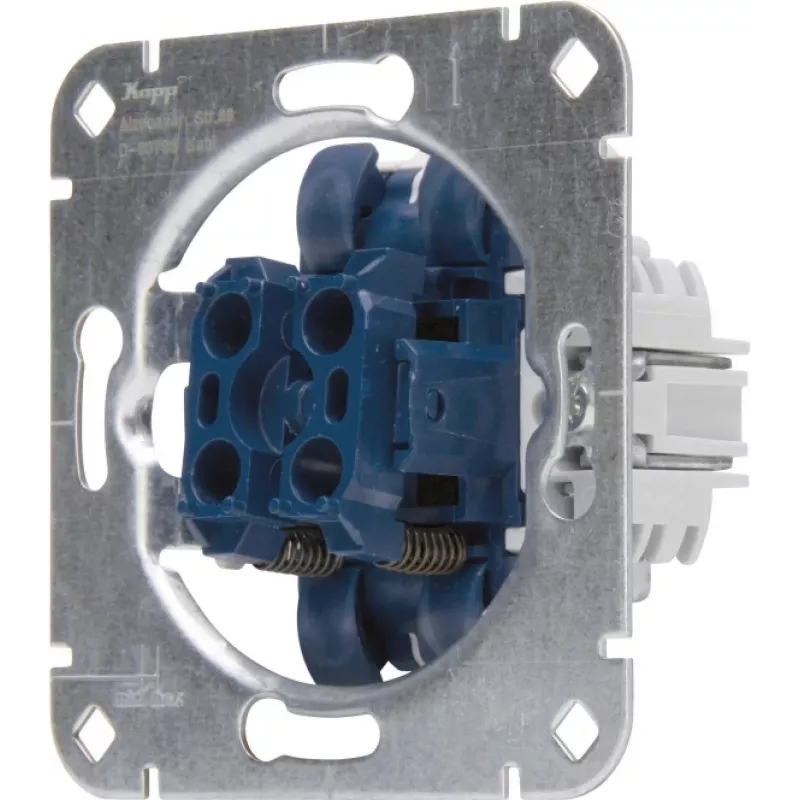

HEINRICH KOPP 507800006 Meccanismo doppio pulsante da incasso, 2x NO, 250V, 10AX, alluminio

Electricians and installers working on residential or commercial wiring projects can use this flush-mounted double push-button insert from HEINRICH KOPP to control lighting or other circuits with momentary switching. The aluminium finish complements modern switch ranges, and the two normally open contacts provide independent control for two functions.

Key specifications

• Product type: Push-button switch insert
• Switch type: Double push-button
• Mounting type: Flush-mounted (Unterputz)
• Number of contacts: 2
• Contact configuration: 2x Normally Open (NO)
• Switch function: Momentary
• Rated voltage: 250 V AC
• Rated current (resistive load): 10 A
• Rated current (inductive load): 10 AX
• IP protection rating: IP20
• Colour/Finish: Aluminium
• Connection type: Screw terminals
• Operating principle: Mechanical
• Number of actuators: 2
• Material (housing/base): Thermoplastic
• Compatibility: Standard flush-mounted boxes

Why choose it

The double push-button design allows control of two separate circuits from a single flush-mounted insert, saving space in standard wall boxes. Screw terminals ensure secure wiring, and the mechanical operating principle provides reliable momentary switching for applications such as staircases or pulse relays.

Ideal use cases

• Staircase lighting with impulse relays
• Two independent momentary controls in one gang
• Residential and commercial flush-mounted installations

Good to know

The insert is rated IP20 for indoor use and fits standard flush-mounted boxes. The aluminium colour coordinates with many modern switch plate designs.
