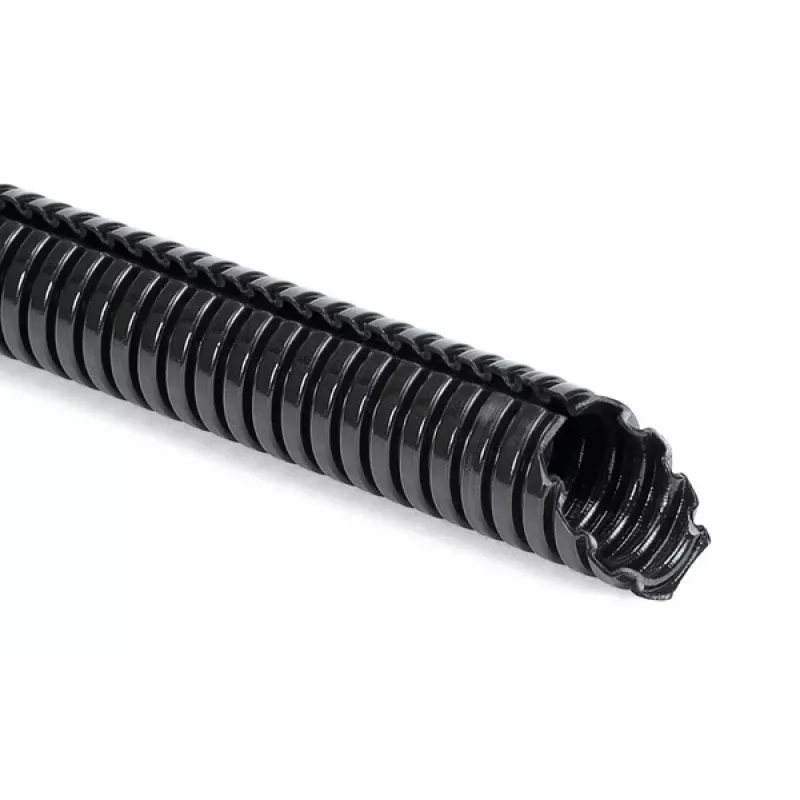

HellermannTyton 166-12013 HG-ELWS12-PA6-BK Guaina corrugata di protezione, nera, diametro interno 10 mm, 50 m

In industrial machinery and control cabinet wiring, protecting cable bundles from abrasion and mechanical stress is critical. The HellermannTyton HG-ELWS12-PA6-BK corrugated protective conduit provides a robust solution, made from polyamide 6 (PA6) for high impact resistance and flexibility. With a nominal size of NW12, it accommodates cables with an inner diameter of 10 mm and an outer diameter of 13 mm. The black conduit is supplied in a 50-meter roll, suitable for continuous runs in demanding environments.

Key specifications

• Material: Polyamide 6 (PA6)
• Colour: Black
• Nominal size: NW12
• Inner diameter: 10.0 mm
• Outer diameter: 13.0 mm
• Length: 50 m
• Operating temperature range: -40 °C to +120 °C (short-term +150 °C)
• Flammability rating: UL94 V2 (self-extinguishing)
• Compression strength: 320 N (Class 3)
• Halogen-free and silicone-free

Why choose it

The conduit offers high flexibility and impact resistance, with good UV and chemical resistance against oils, greases, fuels, alkalis, and weak acids. It meets EN 61386-23 standards, ensuring reliable performance in electrical installations.

Ideal use cases

• Protecting cable harnesses in automotive and machinery applications
• Organizing wiring in control cabinets and industrial equipment
• Outdoor installations requiring UV-resistant conduit

Good to know

The conduit is halogen-free and silicone-free, making it suitable for environments where these substances are restricted. It can be used with appropriate fittings to achieve IP66/IP67 protection.
