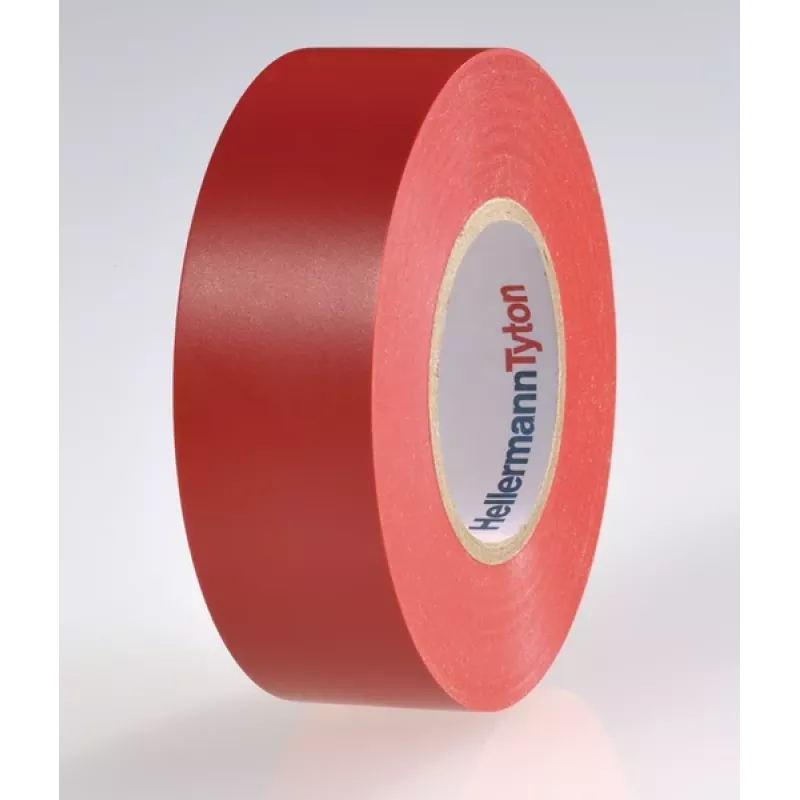

HellermannTyton HTAPE-FLEX15-25x25-PVC-RD nastro isolante elettrico in PVC rosso, 25 mm x 25 m, spessore 0,15 mm 710-00134

This red PVC electrical insulating tape provides reliable electrical insulation and bundling for a wide range of applications. With a width of 25 mm and a length of 25 m, it offers excellent coverage and flexibility. The tape features a rubber-based adhesive that ensures strong adhesion to various surfaces, while the PVC backing provides good dielectric strength and resistance to abrasion.

Advantages

The tape is flame retardant and self-extinguishing, enhancing safety in electrical installations. It has a high dielectric strength of over 40 kV/mm, making it suitable for insulating low-voltage connections up to 600 V. The tape remains flexible and maintains its adhesive properties across a temperature range of -10 °C to +90 °C, allowing use in diverse environments.

Suitable for

• Electrical insulation of wires and cables
• Bundling and harnessing wires
• Colour coding and marking
• Protection of surfaces from abrasion

Key specifications

• Material: PVC (Polyvinyl Chloride)
• Colour: Red
• Tape width: 25 mm
• Tape length: 25 m
• Tape thickness: 0.15 mm
• Adhesive type: Rubber-based
• Dielectric strength: > 40 kV/mm
• Operating temperature range: -10 °C to +90 °C
• Voltage rating: Up to 600 V
• Tensile strength: > 20 N/10mm
• Elongation at break: > 180 %
• Adhesion to steel: > 1.8 N/10mm
• Flame retardant: Yes (self-extinguishing)
• UV resistance: Limited
• Standards: IEC 60454-3-1 Type 10, VDE, RoHS, REACH

Recommendations

For best results, apply the tape to clean, dry surfaces at room temperature. Overlap each wrap by half the tape width to ensure complete insulation. Store in a cool, dry place away from direct sunlight to maintain adhesive quality.
