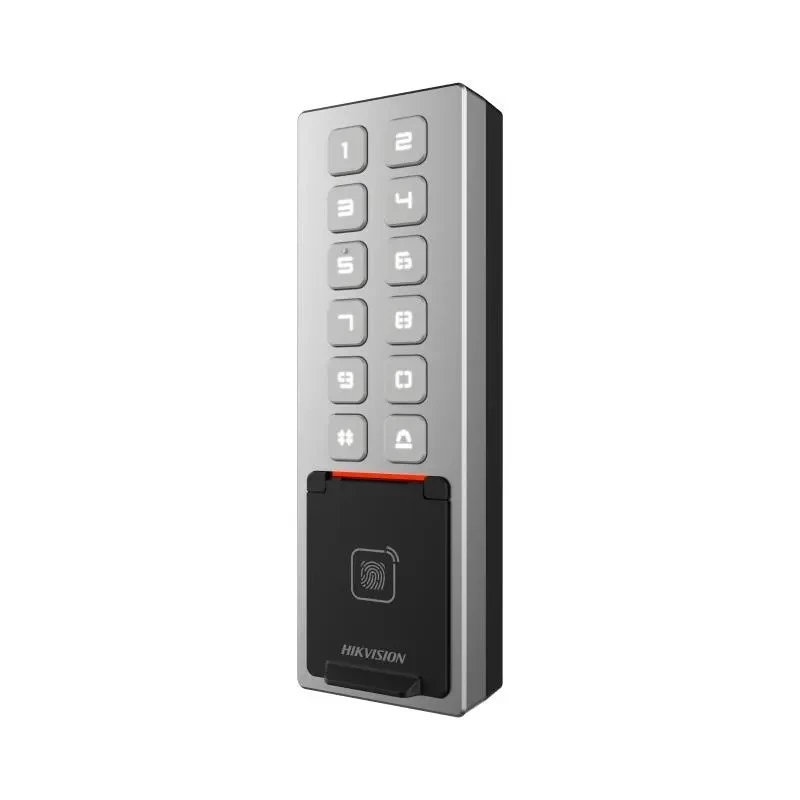

Hikvision DS-K1T805MBFWX Lettore controllo accessi con autenticazione impronta digitale, carta e password

The Hikvision DS-K1T805MBFWX is a high-performance access control reader designed for secure and efficient entry management. Featuring a 2.4-inch LCD display, it supports multiple authentication methods including fingerprint, Mifare card, and password, making it suitable for a wide range of commercial and residential applications. With a robust design and wall-mountable installation, this reader offers reliable access control with advanced features such as tamper alarm and door sensor integration.

Advantages

This access control reader provides versatile authentication options, ensuring high security and convenience. Its 2.4-inch LCD screen offers clear visual feedback, while the built-in fingerprint reader and card reader support up to 3,000 users. The device supports TCP/IP, Wi-Fi, RS-485, and Wiegand interfaces for flexible integration into existing systems. Additionally, the tamper alarm and door control interfaces enhance security, making it an ideal choice for modern access control needs.

Suitable for

• Office buildings and corporate facilities
• Residential complexes and gated communities
• Industrial and warehouse access points
• Educational institutions and hospitals
• Any environment requiring secure entry management

Key specifications

• Display: 2.4-inch LCD
• Fingerprint Capacity: 3,000
• Card Capacity: 3,000
• Event Capacity: 100,000
• Authentication Methods: Fingerprint, Mifare Card, Password
• Card Type: Mifare 1
• Communication: TCP/IP, Wi-Fi, RS-485, Wiegand (Input/Output)
• Network Interface: 10/100 Mbps Ethernet
• USB: 1x USB 2.0 (Type A)
• Alarm Input/Output: 1/1
• Door Control: Door Sensor, Exit Button, Tamper Alarm
• Power Supply: 12 VDC, 1 A
• Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Operating Humidity: 10% to 90% (non-condensing)
• Material: Plastic
• Installation: Wall Mounting

Recommendations

For optimal performance, pair this reader with a compatible Hikvision access control controller and power supply. Ensure proper network connectivity for remote management. Regular firmware updates are recommended to maintain security and functionality.
