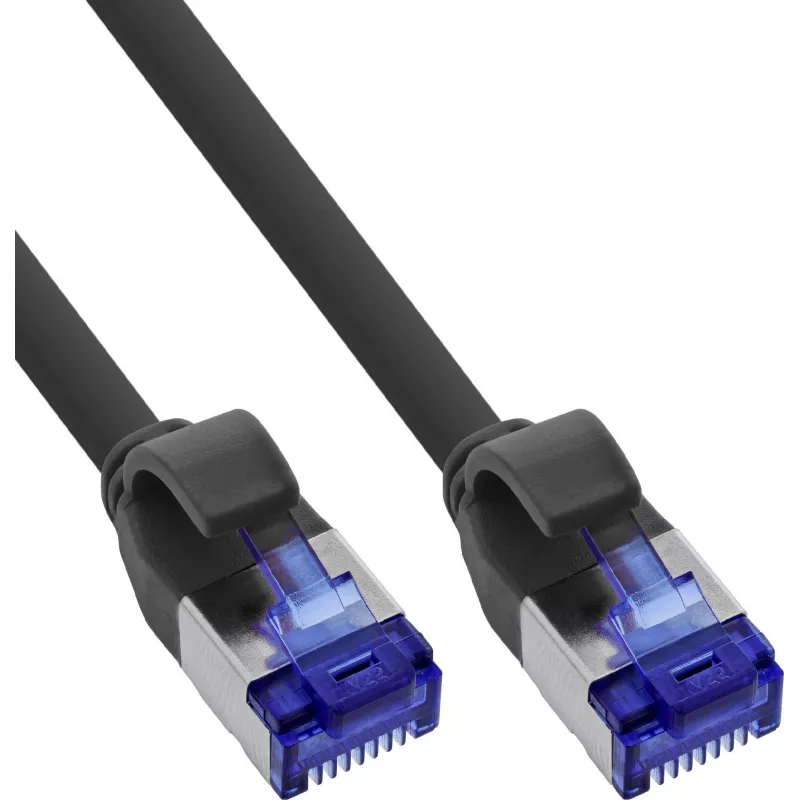

INLINE B-74914S confezione da 100 pz. cavo patch Slim Cat.6A S/FTP LSZH, 1,5 m, nero

For high-density 10G networks where space is tight, the INLINE B-74914S slim Cat.6A patch cable delivers full 500 MHz performance in a 3.8 mm jacket—roughly half the bulk of standard Cat.6A. This 100-piece bulk pack is built for structured cabling installers, data centres, and enterprise rollouts that need reliable, halogen-free connectivity at scale.

Highlights

• Cat.6A / Class EA performance up to 500 MHz, 10GBASE-T ready
• S/FTP shielding: each pair in metal foil plus overall braid for superior alien crosstalk resistance
• Slim 3.8 mm LSZH jacket saves space in patch panels and cable managers
• Gold-plated RJ45 connectors (50µ) with snagless boots for long-term reliability
• 100 cables per pack—ideal for large installations and consistent inventory

In daily use

Each 1.5 m cable is terminated with shielded RJ45 plugs wired to TIA/EIA 568B. The stranded AWG 30/7 copper conductors remain flexible even in dense bundles, while the LSZH jacket emits low smoke and zero halogens in case of fire—making it suitable for public buildings, schools, and offices with strict safety codes. PoE support up to 4PPoE (PoE++) means you can power access points, IP cameras, and other devices without a second cable run.

Full specifications

• Length: 1.5 m
• Colour: Black
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Jacket: LSZH (halogen-free, flame retardant)
• Conductor: Copper, AWG 30/7 stranded
• Outer diameter: approx. 3.8 mm
• Connectors: RJ45 male to RJ45 male, shielded, gold-plated (50µ)
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbps
• Wiring: TIA/EIA 568B
• PoE: PoE, PoE+, PoE++ (4PPoE)
• Pack quantity: 100 pieces

Final note

The INLINE B-74914S bulk pack gives you a consistent, install-ready supply of slim Cat.6A patch cables—combining high-frequency performance, fire safety, and space efficiency in one professional solution.
