InLine Cornice in gomma per disaccoppiamento vibrazioni dell'alimentatore

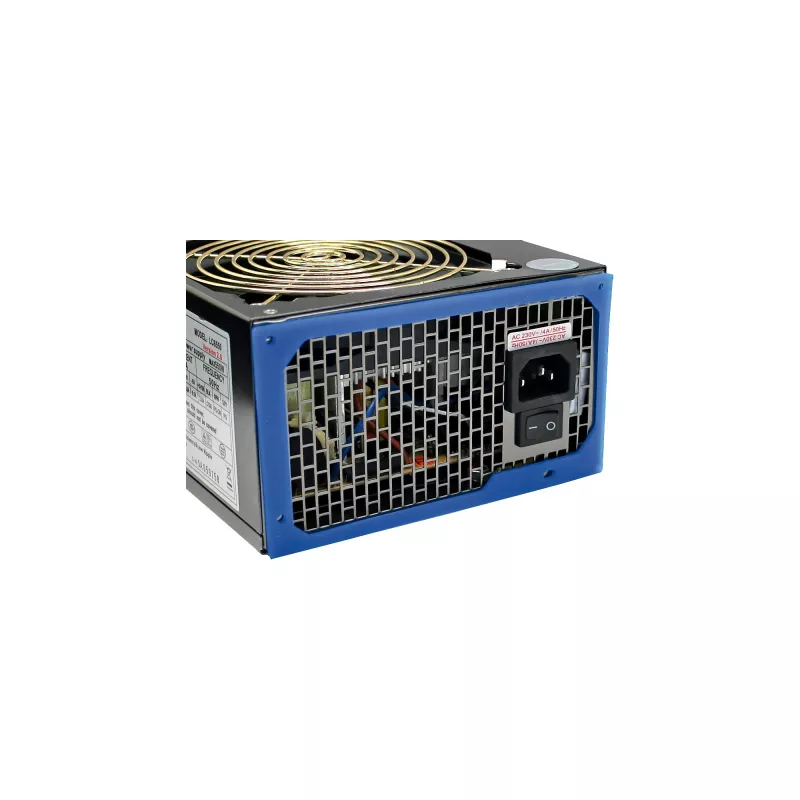

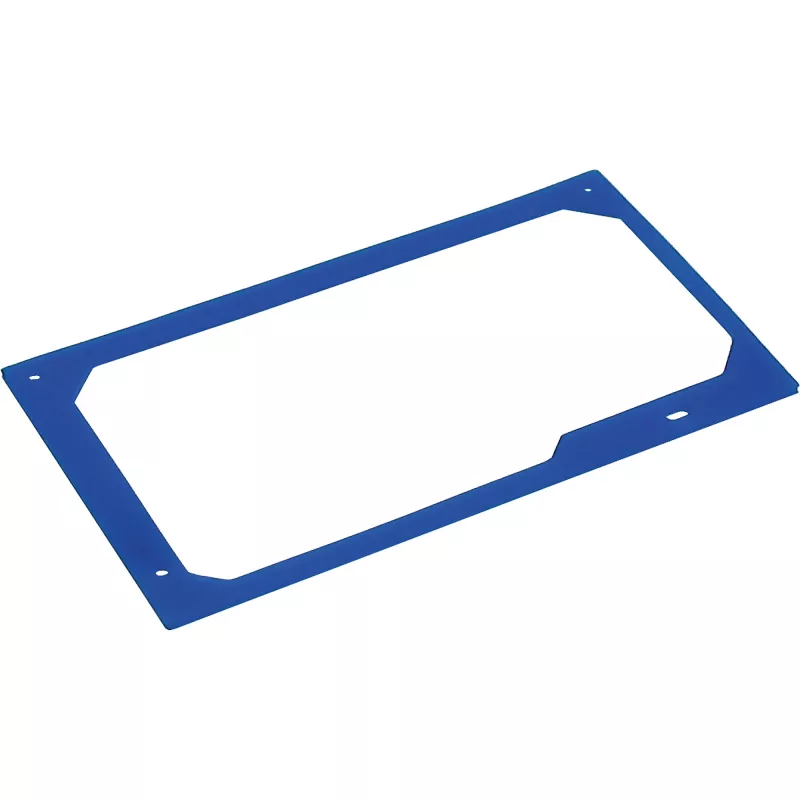

The InLine Rubber Frame InLine 00244B is a silicone mounting frame designed to isolate and stabilize computer power supplies. It fits between the power supply unit and the PC case to reduce vibration transmission and prevent unwanted movement. The frame is blue, 2 mm thick, 147 mm long and 83 mm wide; the package contains one piece.

Advantages

The silicone construction provides effective vibration decoupling and shock absorption to reduce operational noise and mechanical wear. Its dimensions and form factor allow straightforward installation between standard ATX-style power supplies and cases, helping to maintain component stability. Durable material ensures long-term performance in typical desktop environments.

Suitable for

• Mounting ATX or similarly sized PC power supplies that require vibration isolation
• Reducing noise and mechanical transmission in desktop computer builds
• Use in home, office, or workshop systems where PSU stability is important

Key specifications

• Material: Silicone (rubber)
• Color: Blue
• Thickness: 2 mm
• Length: 147 mm
• Width: 83 mm
• Quantity: 1 piece
• Manufacturer brand: InLine
• MPN: 00244B
• EAN: 4043718132805

How to use

Place the rubber frame between the power supply unit and the PC case alignment surface so that the frame cushions the mounting area. Align the PSU with the case mounting holes, then secure it using the original screws through the frame and into the case. Ensure the frame sits flat and does not obstruct connectors or airflow; tighten screws to a firm but not excessive torque to preserve the silicone’s isolating properties.

Recommendations

For best results, inspect the frame periodically for signs of wear or deformation and replace if damaged. Use the InLine 00244B with power supplies and cases that match the stated dimensions to ensure proper fit and effective vibration isolation.
