Kit pannello LCD Phanteks PH-HRLCD_WT01 universale 5V 80mm

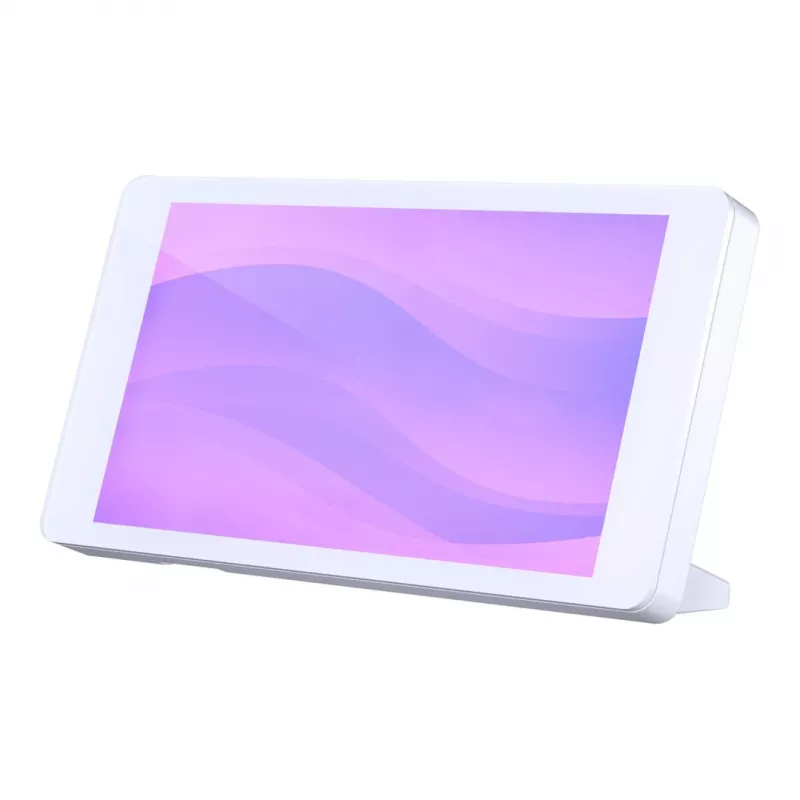

The Phanteks 5.5” Hi-Res Display (PH-HRLCD_WT01) is a universal LCD panel kit designed to serve as a compact secondary screen inside or outside a PC case. The 5.5-inch panel features a high resolution of 2160 × 1440 pixels and connects to a 5V input. Constructed from ABS and polycarbonate, the module measures approximately 80 mm wide, 150.9 mm deep and 16.4 mm high and is intended to provide clear visual feedback and enhance the appearance of a system.

Advantages

The display delivers a high-resolution 5.5-inch screen suitable for detailed visual output while maintaining a compact footprint. Multiple mounting options — magnetic attachment, fan-mount compatibility and detachable legs — allow flexible placement either inside the case or externally. The ABS and polycarbonate construction offers durability and a finished look that integrates with most PC builds.

Suitable for

• Displaying system information (temperatures, fan speeds, voltages)
• Showing custom images, animations or widgets
• Use as a dedicated secondary display for streaming or chat monitoring

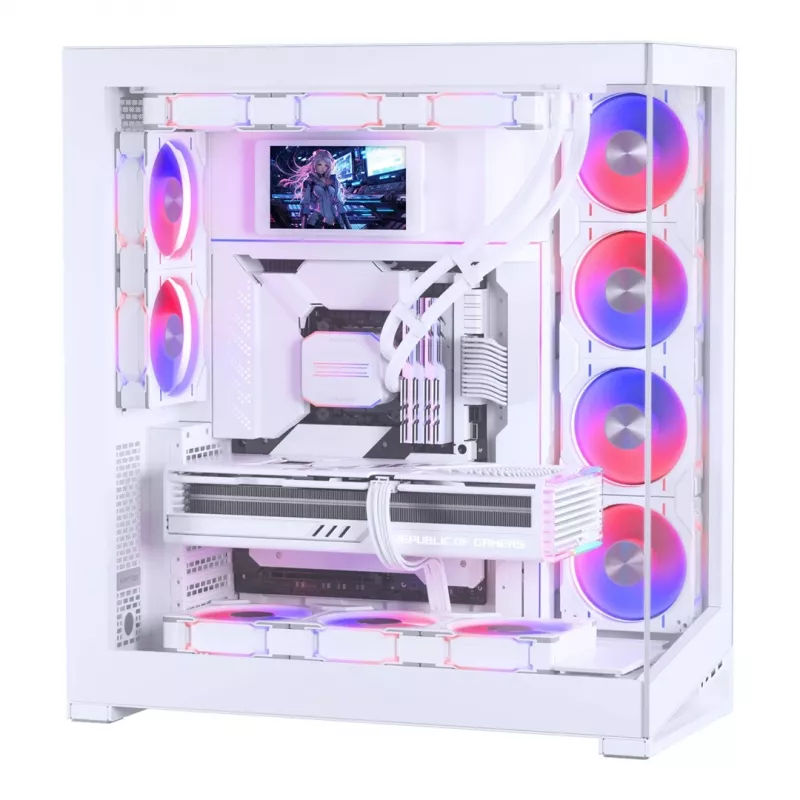

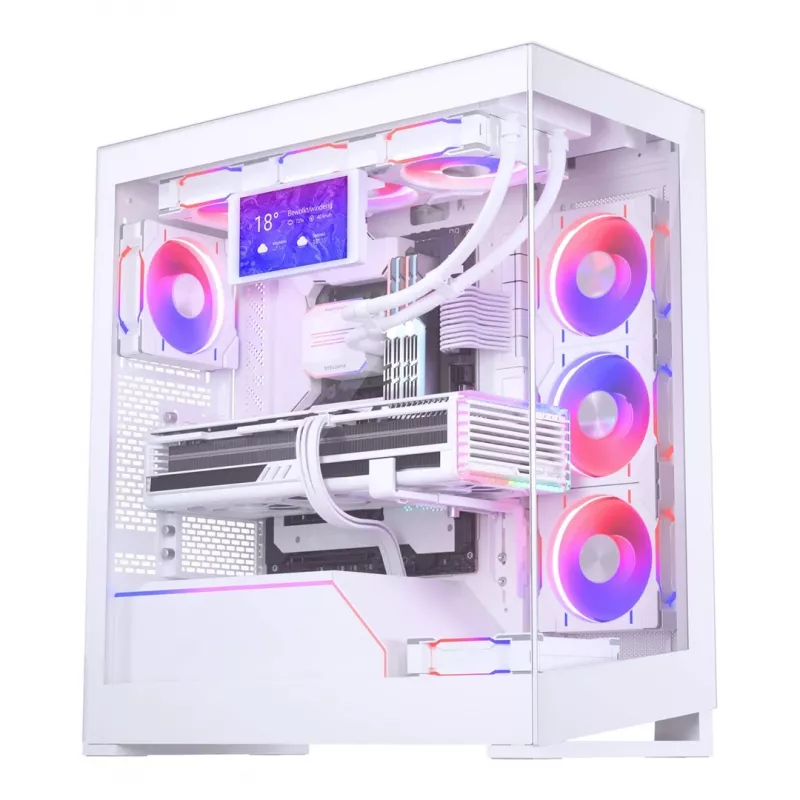

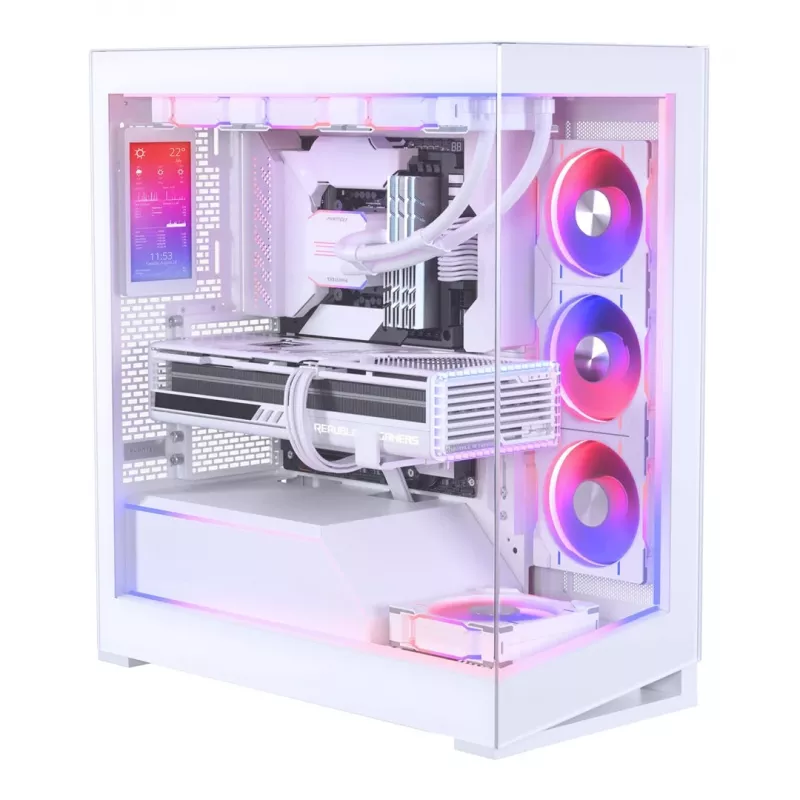

• Installation inside a PC case or mounted externally on a desk

Key specifications

• Model: Phanteks PH-HRLCD_WT01
• Screen size: 5.5 inches
• Resolution: 2160 × 1440 pixels
• Power input: 5V
• Dimensions (approx.): 80 mm (W) × 150.9 mm (D) × 16.4 mm (H)
• Materials: ABS, polycarbonate

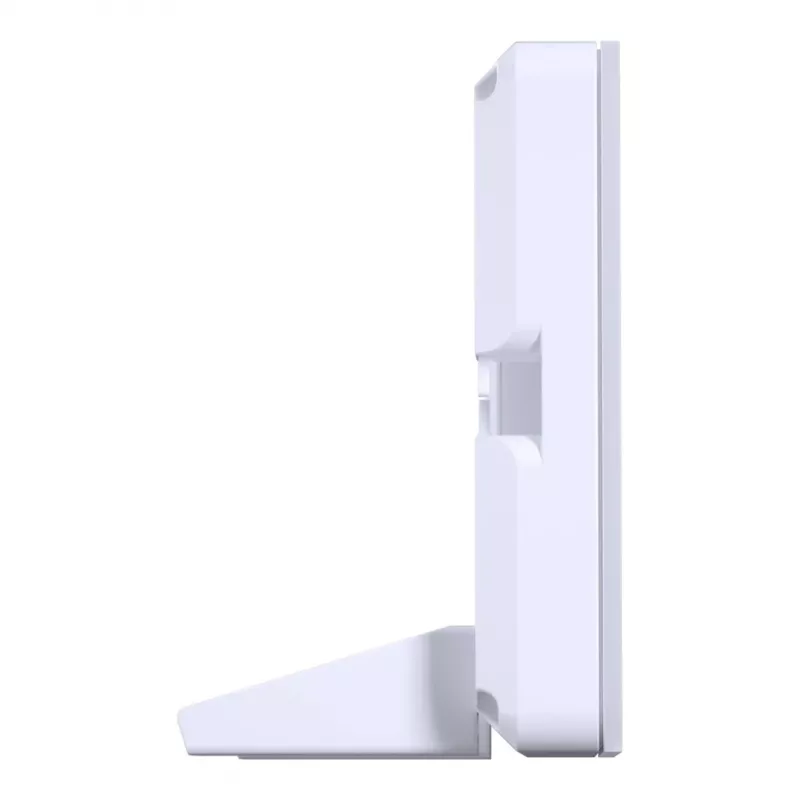

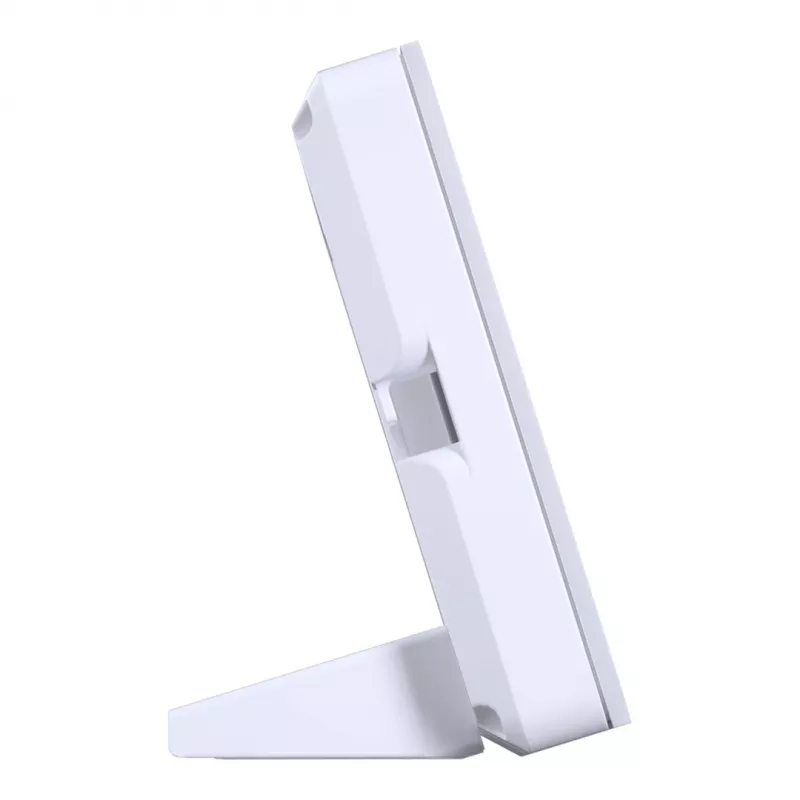

• Mounting options: magnets, fan-mount, included legs for external use

How to use

Install the panel according to the chosen mounting method: attach magnetically to a compatible metal surface inside the case, use the fan-mount option aligned with an 80 mm fan location, or fit the included legs to place the display externally on a desk. Connect the display to a 5V power source and to the host system following the manufacturer’s connection instructions (cables and control interface as supplied). Configure the display using the provided software or firmware controls to select the desired widgets, images or system readouts.

Recommendations

Place the display where it has clear visibility and adequate airflow; avoid obstructing airflow when used inside the case. Use the fan-mount option only with compatible 80 mm locations and ensure power is supplied at the specified 5V to prevent damage. For best results, update the display firmware and use manufacturer-provided utilities to manage content and appearance.
