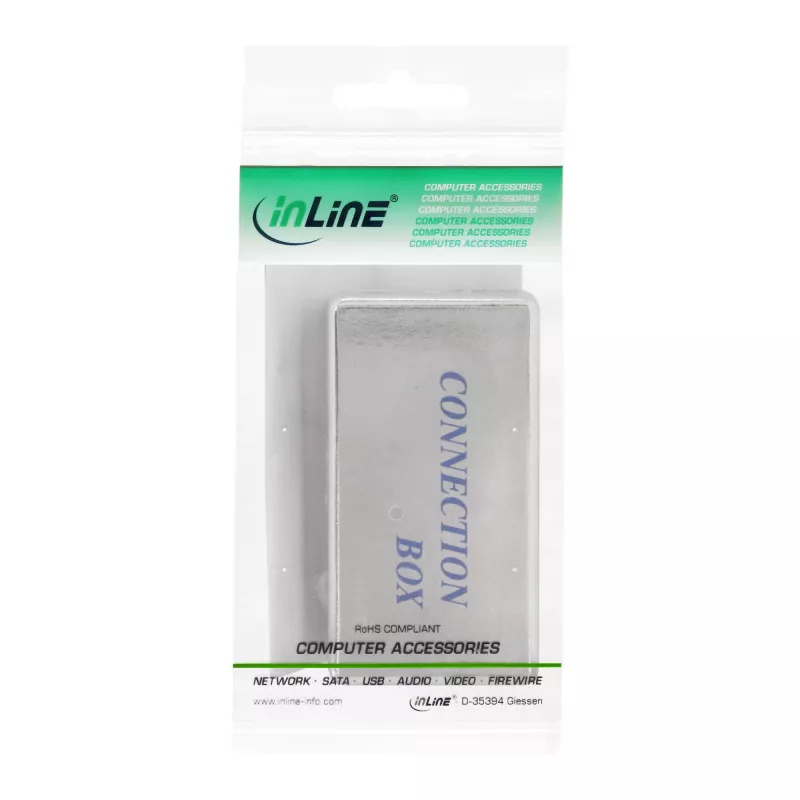

InLine Modulo di connessione LSA Cat.5e schermato 69993

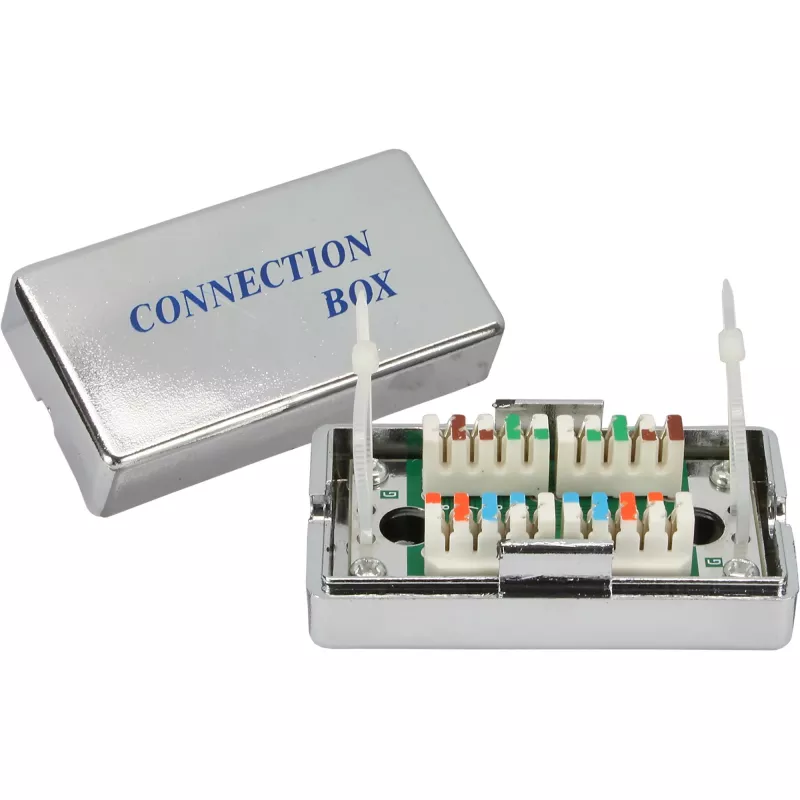

InLine Cat.5e LSA connection module shielded 69993 is a shielded connection module for installation cables that enables two rigid LAN cable conductors to be joined securely. The internal LSA module ensures a professional termination that minimises signal loss and reduces the risk of disturbances or interference in data transmission, making the module suitable for standard LSA installations in both home and professional networks.

Advantages

The shielded design improves protection against electromagnetic interference, while the built-in LSA termination provides reliable contact and consistent performance. The module is compact and straightforward to install, offering low insertion loss and compatibility with Cat.5e cabling standards. Each pack contains one module for single-point connections.

Suitable for

Key specifications

How to use

Prepare the rigid Cat.5e cable conductors according to standard installation practice, insert each conductor into the corresponding slot of the LSA module and use the appropriate LSA punch-down tool to secure the wires. Ensure the shielding is properly connected to maintain continuity of the cable shield. Verify the connection with a cable tester to confirm continuity and signal quality after installation.

Recommendations

Use compatible LSA punch-down tools and follow cable installation standards. Test the assembled connection with a network tester to ensure correct wiring and acceptable signal performance. Maintain shielding continuity by correctly bonding the module to the cable shield or ground.
