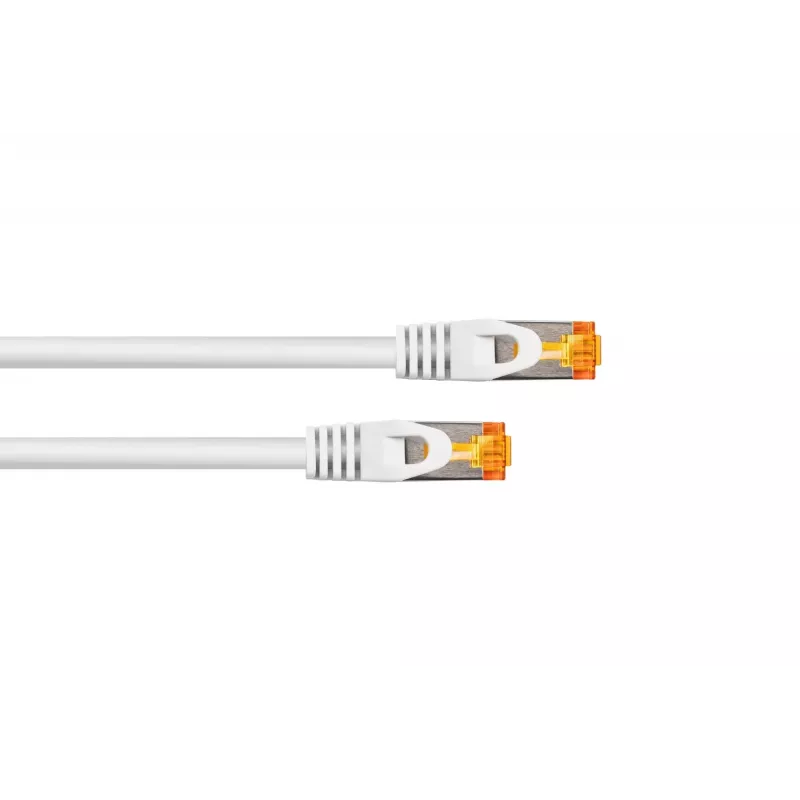

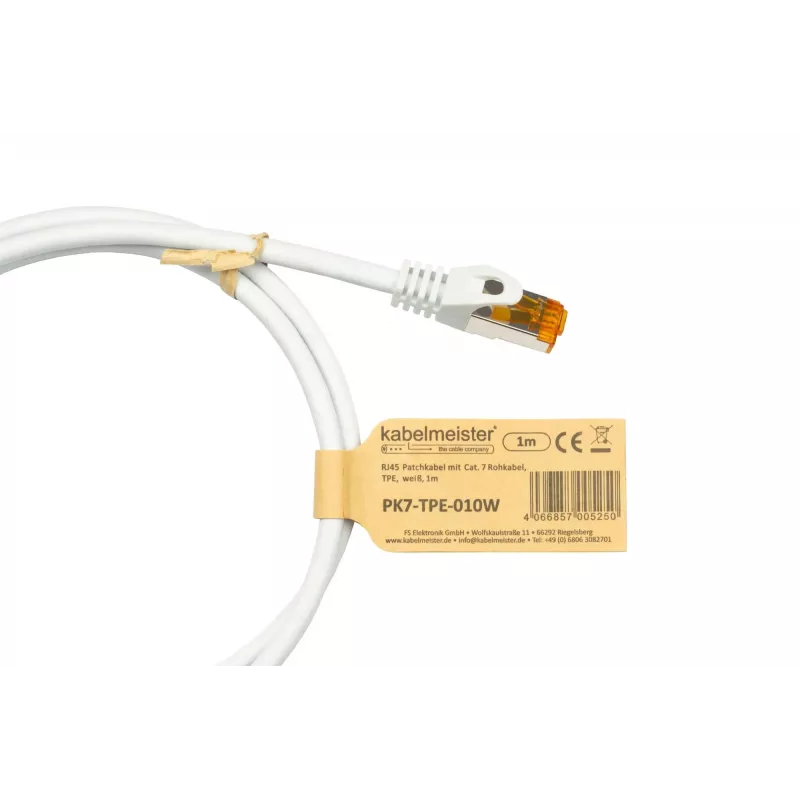

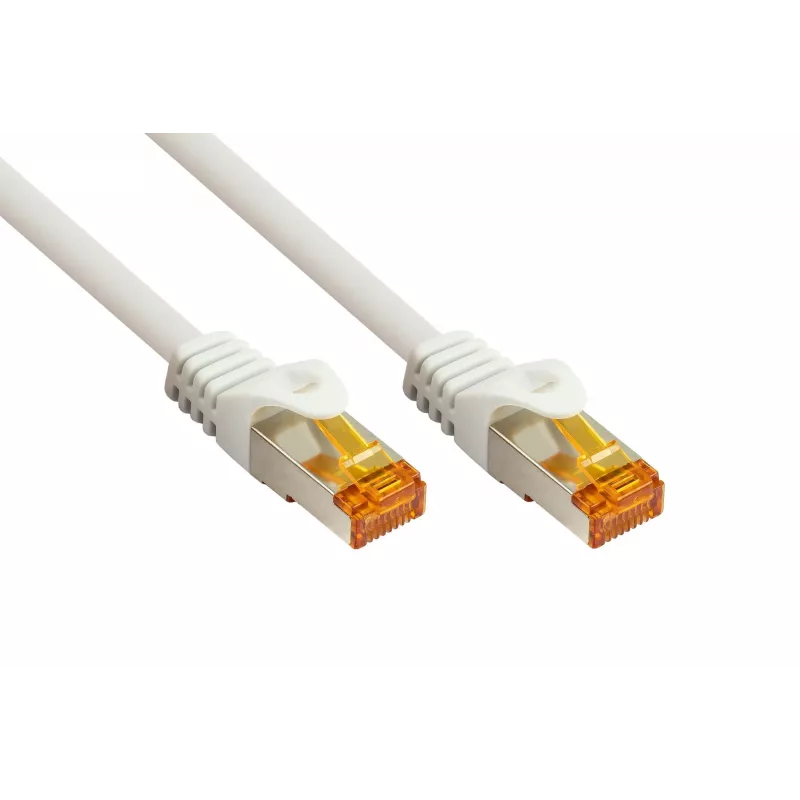

Kabelmeister cavo patch RJ45 Cat.7 S/FTP, guaina TPE, senza alogeni, bianco, 7,5 m

High-performance RJ45 patch cable engineered for 10 Gigabit Ethernet, combining Cat.7 raw cable with a highly flexible TPE jacket. The halogen-free, flame-retardant design ensures safety in dense installations, while the S/FTP shielding (PiMF) and gold-plated contacts deliver reliable, interference-free data transmission up to 600 MHz. Ideal for data centers, server rooms, and high-speed LAN connections.

Advantages

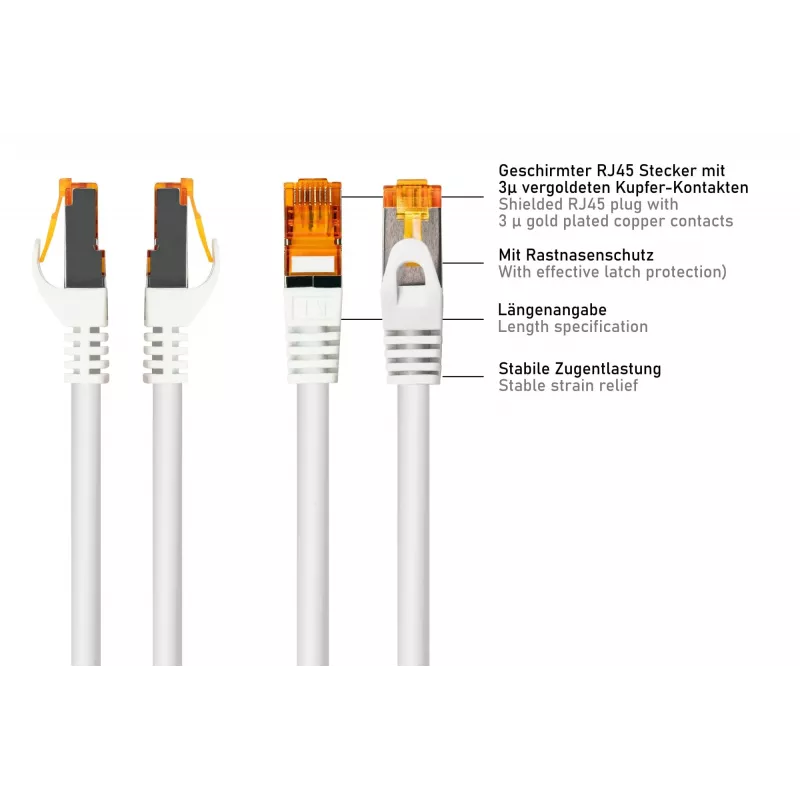

This cable offers superior signal integrity thanks to its S/FTP construction: each twisted pair is individually foil-shielded, and an overall braided shield protects against alien crosstalk. The TPE jacket provides exceptional flexibility, making it easy to route in tight spaces without kinking. Halogen-free materials emit low smoke and toxic gases in case of fire, enhancing safety. Gold-plated connectors resist corrosion and ensure consistent contact over thousands of insertions. The snagless boot protects the locking tab from damage during installation.

Suitable for

• 10GBASE-T networks and high-speed data centers
• Connecting servers, switches, and storage devices
• Professional installations requiring halogen-free cabling
• Environments with high EMI/RFI interference
• Long-distance runs up to 7.5 meters without signal loss

Key specifications

• Category: Cat.7 (600 MHz bandwidth)
• Shielding: S/FTP (PiMF) – pairs in metal foil, overall braided shield
• Conductor: Copper, AWG 26/7 stranded
• Jacket: TPE (thermoplastic elastomer), halogen-free, highly flexible
• Connectors: RJ45 male to RJ45 male, gold-plated (50 µm) contacts
• Wiring: TIA/EIA 568B
• Length: 7.5 m
• Color: White
• Data rate: up to 10 Gbps
• Impedance: 100 Ohm
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair this cable with Cat.7 or higher rated components. Avoid sharp bends and excessive pulling force during installation. The cable is suitable for both indoor and protected outdoor use, but not for direct burial or continuous outdoor exposure.
