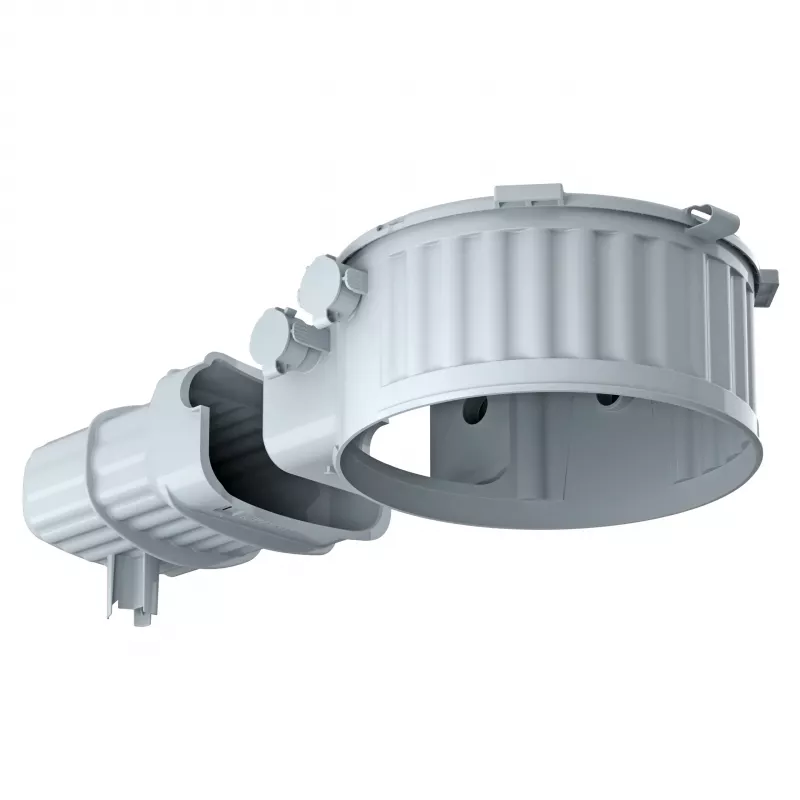

Kaiser Elektro HaloX 180 scatola di installazione con tunnel da 190 mm

Universal installation housing for hollow walls and suspended ceilings, featuring an extendable tunnel that increases installation depth to 190 mm. The halogen-free plastic construction with glow-wire resistance up to 850°C ensures safety in recessed spotlight and loudspeaker applications.

Advantages

Air-tight and sound-insulating design maintains building envelope integrity. Multiple flexible cable entries accommodate various wiring and conduit configurations. Suitable for LED luminaires without power limitation.

Suitable for

• Recessed spotlights
• Loudspeakers
• Electrical devices in hollow walls and suspended ceilings

Key specifications

• Outer diameter: 180 mm
• Installation opening diameter: 160 mm
• Base housing depth: 100 mm
• Maximum installation depth with tunnel: 190 mm
• Extendable tunnel length: 190 mm
• Material: halogen-free plastic
• Glow-wire test: 850°C
• Protection class: IP20
• Maximum luminaire power (halogen): 50 W
• Maximum luminaire power (LED): unlimited
• Colour: orange

Recommendations

For installations requiring additional depth, the integrated tunnel provides flexibility while maintaining fire safety and acoustic performance.
