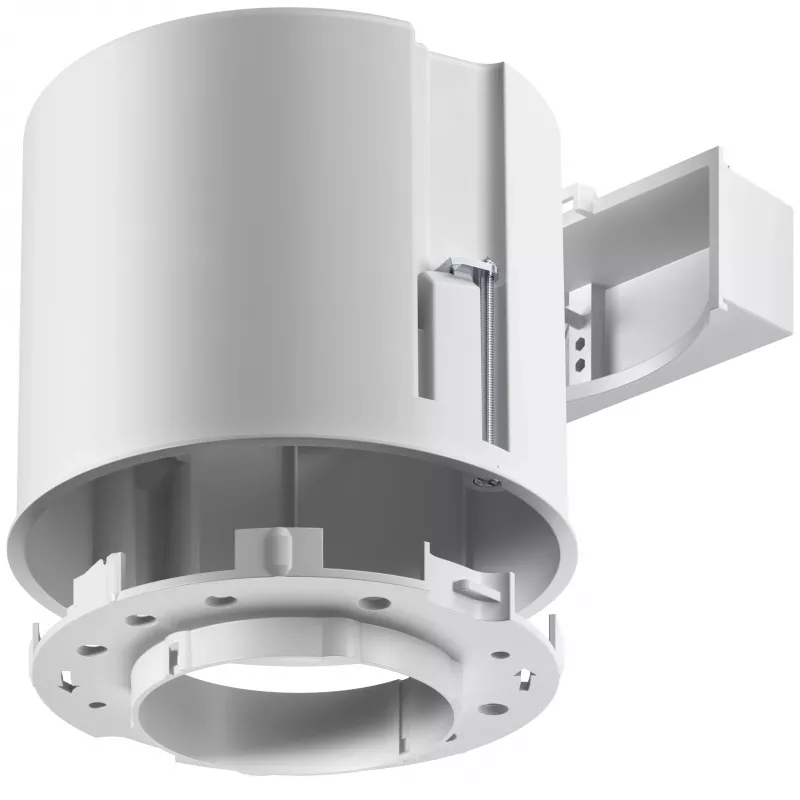

Kaiser Elektro KAIS Thermox 9300-01 Custodia tagliafuoco per solai cavi, incasso a soffitto 68 mm

The Kaiser Elektro KAIS Thermox 9300-01 is a high-quality fire protection housing designed for installation in hollow and suspended ceilings. It provides a safe and compliant enclosure for recessed luminaires and downlights, ensuring fire resistance up to F90 according to DIN 4102-2. This model features a 68mm luminaire installation diameter and is made from fire-resistant composite material, offering excellent thermal insulation and air tightness.

Advantages

This fire protection housing ensures maximum safety and compliance with fire regulations. Its airtight construction prevents the spread of smoke and flames, while the integrated cable entries allow for flexible wiring. The housing is halogen-free and provides sound insulation, making it ideal for residential and commercial buildings.

Suitable for

• Recessed luminaires and downlights in hollow ceilings
• Suspended ceilings requiring fire protection
• Installations requiring F30, F60, or F90 fire resistance

Key specifications

• Product Type: Fire Protection Housing
• Application: Hollow Ceilings, Suspended Ceilings
• Suitable For: Recessed Luminaires, Downlights
• Fire Resistance Class: F30, F60, F90 (according to DIN 4102-2)
• Luminaire Installation Diameter: 68 mm
• Max. Luminaire Height (Internal): 110 mm
• Max. Luminaire Wattage: 75W (Halogen), higher for LED
• Material: Fire-resistant composite material
• Air Tightness: Yes
• Cable Entries: 4x M20/M25 flexible entries
• Protection Class: IP20
• Mounting Type: Direct installation in ceiling cut-out
• External Diameter: 180 mm
• Overall Height: 120 mm
• Certification: VDE, CE, DIN
• Color: Grey
• Halogen-free: Yes
• Sound Insulation: Yes

Recommendations

For optimal safety and compliance, always ensure that the housing is installed by a qualified professional and that the luminaire used does not exceed the specified maximum wattage and dimensions.
