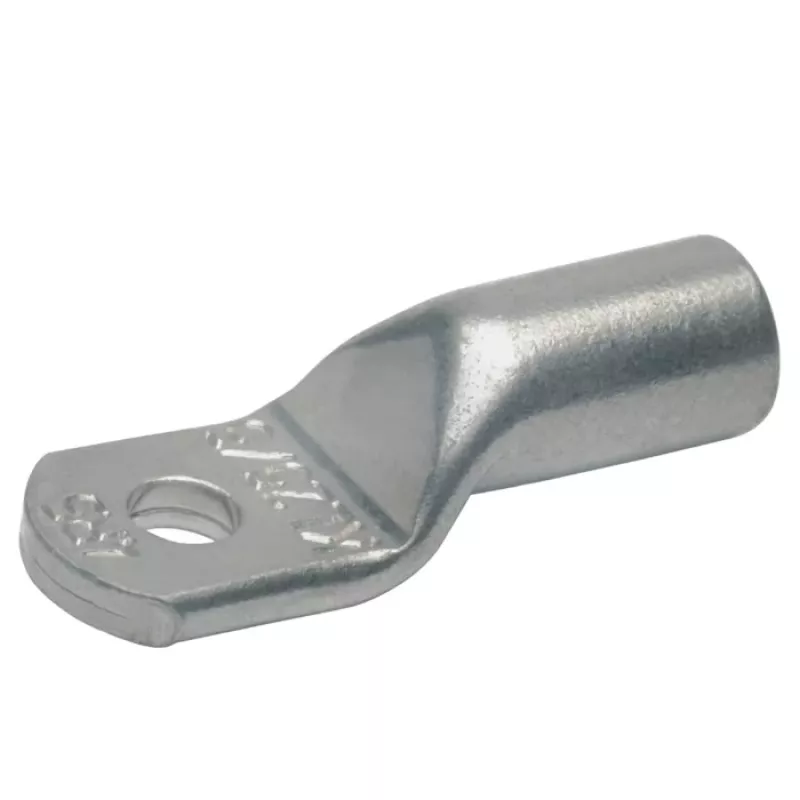

KLAUKE 11R12 capocorda a tubo, 185 mm², M12, rame stagnato, dritto

The KLAUKE 11R12 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, this lug ensures excellent conductivity and corrosion resistance. It is suitable for fine-stranded, multi-stranded, and solid copper conductors, making it a versatile choice for various wiring applications.

Advantages

Tin-plated surface provides superior protection against oxidation and corrosion, ensuring long-term performance. The straight design allows for easy installation in tight spaces. Compliant with DIN 46235, guaranteeing dimensional accuracy and reliability.

Suitable for

• Power distribution systems
• Industrial control panels
• Electrical installations requiring secure crimp connections
• Automotive and marine wiring

Key specifications

• Cable cross-section: 185 mm²
• Bolt hole diameter: M12 (12.5 mm inner diameter)
• Material: Electrolytic copper (E-Cu), tin-plated
• Design: Straight
• Tube inner diameter: 18.5 mm
• Tube outer diameter: 22.5 mm
• Palm width: 30 mm
• Palm thickness: 4 mm
• Operating temperature: -55°C to +105°C
• RoHS compliant and halogen-free

Recommendations

For optimal performance, use with appropriate crimping tools and ensure proper conductor preparation. Always follow manufacturer guidelines for installation.
