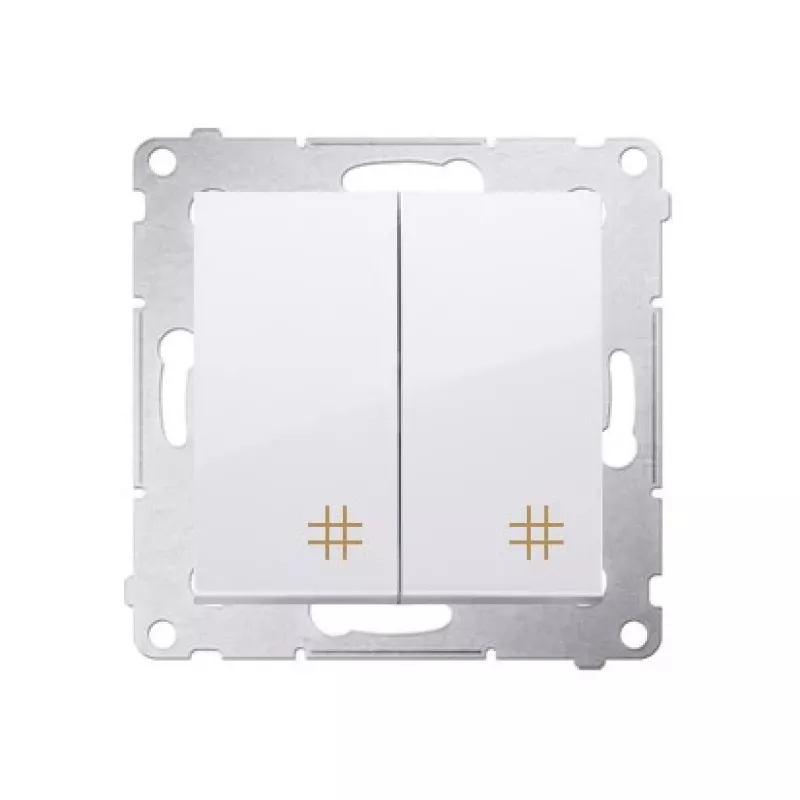

KONTAK-SIMON Simon 54 modulo deviatore intermedio, bianco, 10AX 250V, morsetti a molla

The KONTAK-SIMON Simon 54 Premium intermediate switch module offers a clean and functional solution for controlling lighting from three or more locations. Built for flush mounting, it uses tool-free spring terminals that accept solid conductors from 1.5 to 2.5 mm², making installation quick and reliable. The module is rated at 10 AX, 250 V AC and conforms to EN 60669-1.

Highlights

• Intermediate switch (crossover) for multi-point lighting circuits
• White thermoplastic cover that matches the Simon 54 range
• Fast spring terminals for 1.5–2.5 mm² solid wire
• 10 AX switching capacity at 250 V AC
• Flush-mount, 1-module design for standard enclosures
• Halogen-free materials and IP20 protection

In daily use

When you need to operate a light from three or more positions, an intermediate switch is the key component. Place this module between two two-way switches to create a versatile control network. The white finish blends with any interior, while the compact module size fits easily into existing mounting boxes. The spring terminals grip the conductor firmly, so no screws are needed – just strip and insert.

Full specifications

• Product type: Intermediate switch module
• Series: Simon 54 Premium
• Colour: White
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Connection: Spring terminals (4 terminals)
• Terminal capacity: 1.5 – 2.5 mm² (solid)
• Mounting: Flush type
• Protection rating: IP20
• Material: Thermoplastic, halogen-free
• Operating temperature: -5 to +35 °C
• Standards: EN 60669-1
• Rocker(s): 1
• Module size: 1 module

Final note

This Simon 54 module is a safe, dependable choice for three-way or four-way switching in domestic and commercial installations. Pair it with matching Simon 54 switches for a consistent look.
