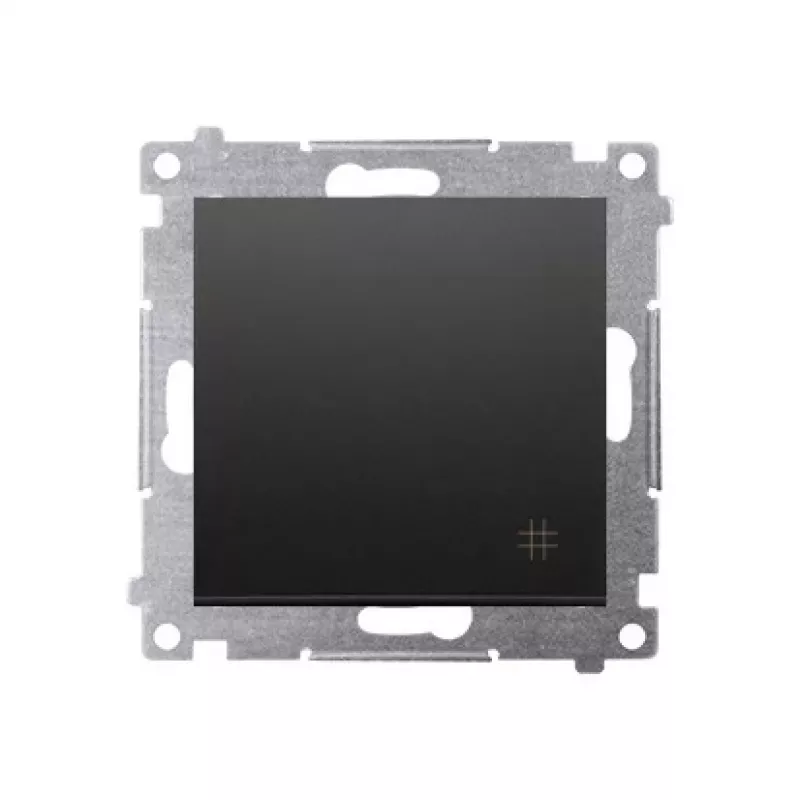

KONTAK-SIMON Simon 54 modulo deviatore intermedio, nero opaco, morsetti a molla, 10AX 250V

From long hallways to large open-plan offices, controlling a lighting circuit from multiple points requires precise switching. This Simon 54 intermediate module from KONTAK-SIMON delivers exactly that, allowing you to add as many control points as needed without compromising on style or safety. The black matt finish and compact 1-module form factor make it a versatile choice for modern interiors.

Key specifications

• Series: Simon 54 Premium
• Function: Intermediate (cross) switch
• Rated voltage: 250 V AC
• Rated current: 10 AX
• Connection: Spring terminals
• Front face dimensions: 45 x 45 mm
• Installation depth: approx. 33 mm
• Material: High-quality thermoplastic
• Protection rating: IP20
• Operating temperature: -5 °C to +35 °C
• Humidity resistance: 93% RH (non-condensing)
• Compliance: PN-EN 60669-1
• Compatible with Simon 54 frames and cover plates
• No indicator light

Why choose it

Engineered for reliability and ease of installation, this module features spring terminals that ensure quick, secure wiring without the need for screwdrivers. The premium Simon 54 series guarantees a flawless fit with stylish frames, delivering consistent performance and a long service life. Its silent operation and minimalist design make it ideal for contemporary homes and commercial spaces alike.

Ideal use cases

• Staircase lighting systems requiring three or more control points
• Long corridors and hallways in hotels and offices
• Living rooms and meeting rooms with multiple entrance points

Good to know

The intermediate switch is used in conjunction with two-way switches to enable control from multiple locations. It is designed for flush mounting and supports a maximum load of 10 AX for both resistive and inductive loads. To maintain aesthetic consistency, pair this module with any Simon 54 frame. The module's IP20 rating makes it suitable for indoor use in dry environments.
