Kramer C-SC/SC/OM4-33 10m cavo patch in fibra ottica OM4 duplex multimodale, SC a SC, aqua 94-0703033

Engineered for high-speed data transmission, this 10-meter OM4 duplex multimode fiber patch cable supports 40 Gigabit Ethernet up to 150 meters and 100 Gigabit Ethernet up to 150 meters, making it ideal for data centers and storage area networks. With SC male connectors on both ends and a 50/125 µm core/cladding diameter, it delivers reliable performance at 850 nm and 1300 nm wavelengths.

Overview

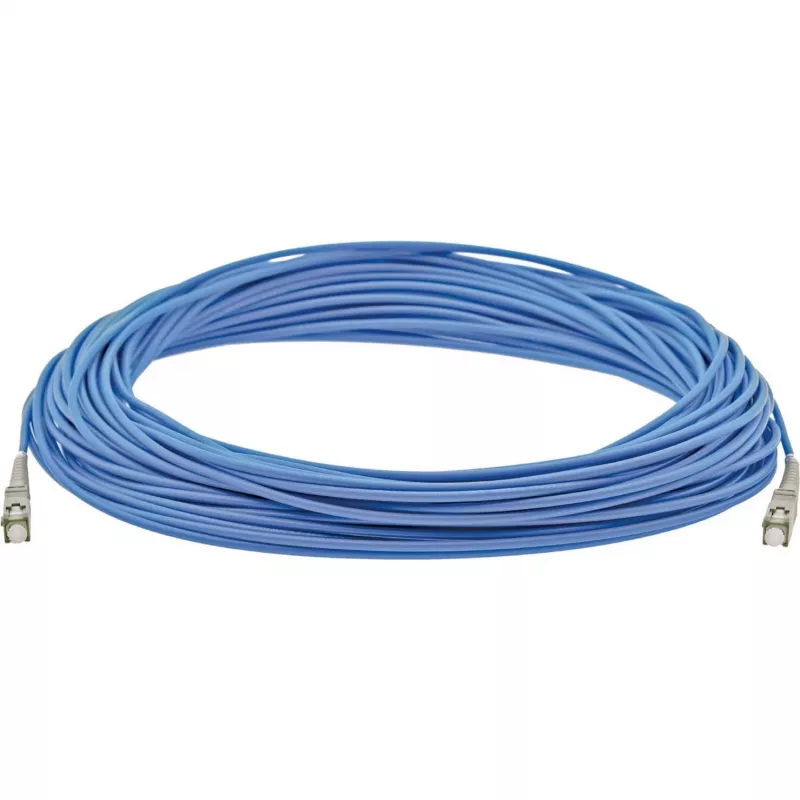

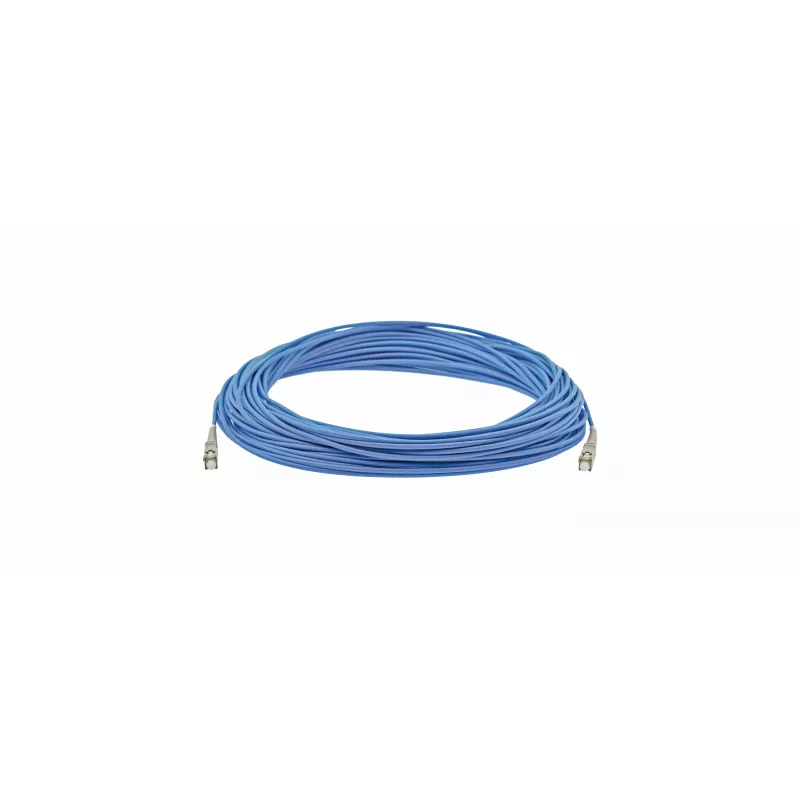

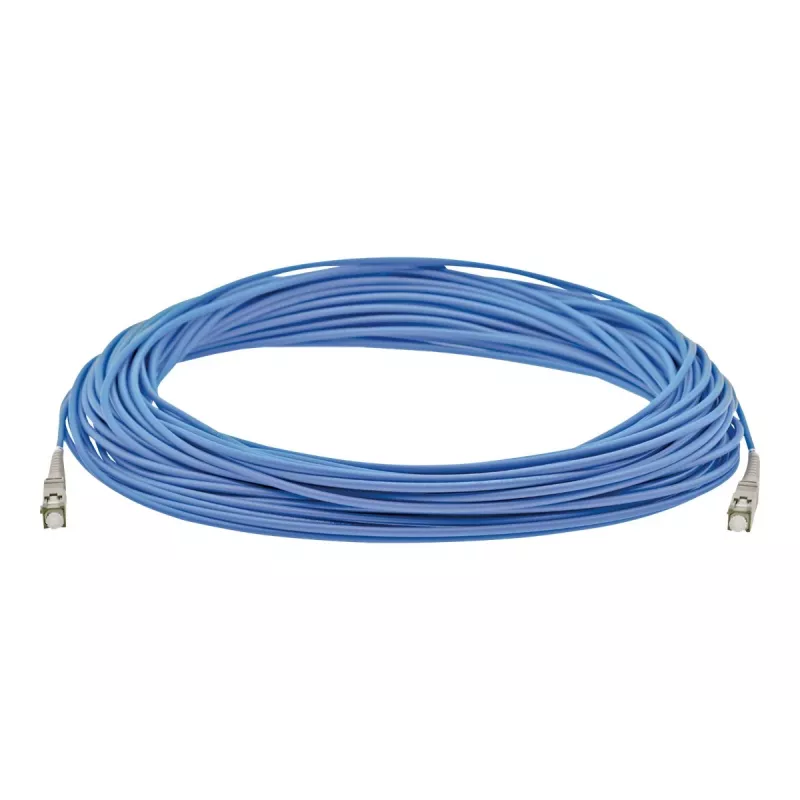

The Kramer C-SC/SC/OM4-33 is a duplex fiber optic patch cable featuring OM4 multimode fiber with an aqua jacket. It is terminated with SC male connectors on both ends, providing a physical contact (PC) polish for low insertion loss. The cable is designed for high-density network environments where consistent, high-bandwidth connectivity is critical.

What stands out

• OM4 fiber supports 10 Gigabit Ethernet up to 550 meters, 40 Gigabit Ethernet up to 150 meters, and 100 Gigabit Ethernet up to 150 meters.
• Duplex construction with two fibers enables bidirectional communication.
• SC connectors offer a push-pull locking mechanism for secure connections.
• Aqua jacket color identifies OM4 multimode fiber per industry standards.

Technical details

• Cable type: Fiber optic patch cable
• Fiber mode: Multimode
• Fiber grade: OM4
• Core/cladding diameter: 50/125 µm
• Connector A: SC male
• Connector B: SC male
• Cable length: 10 m
• Number of fibers: 2 (duplex)
• Wavelength support: 850 nm, 1300 nm
• Max data rate: 10 GbE up to 550 m; 40 GbE and 100 GbE up to 150 m
• Application: High-speed network connectivity, data centers, SANs
• Compatibility: Ethernet, Fibre Channel, InfiniBand
• Jacket color: Aqua
• Connector polish: PC (Physical Contact)

Our verdict

A dependable OM4 duplex patch cable for demanding network infrastructures, offering high bandwidth and low latency over 10 meters.
