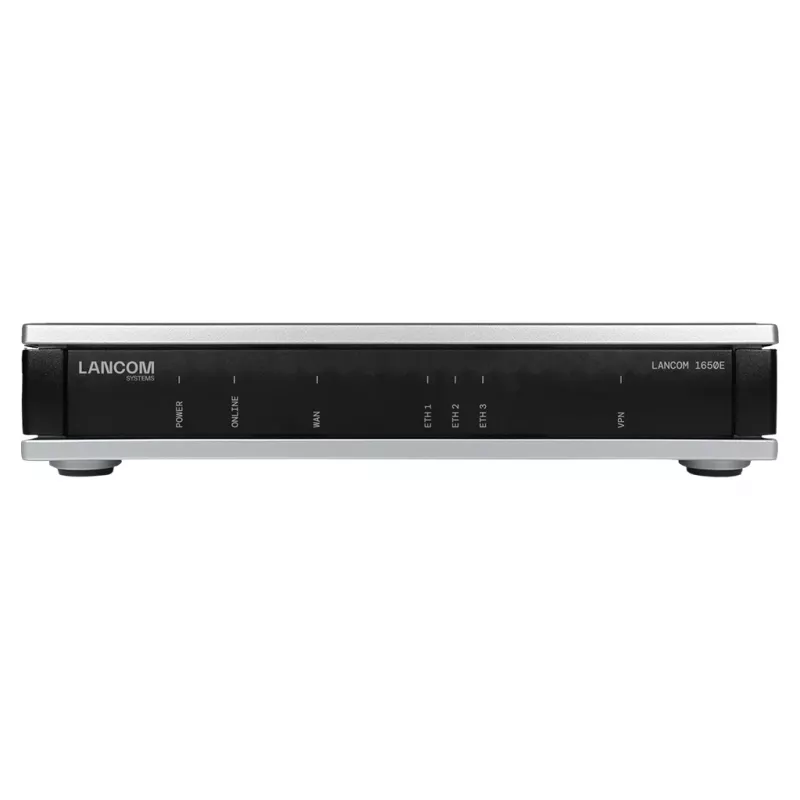

LANCOM 1650E router VPN business con SD-WAN, 4x LAN Gigabit, 1x WAN Gigabit, 2x USB 3.0

The LANCOM 1650E stands out as a dedicated VPN router and SD-WAN gateway for branch offices, offering secure site-to-site connectivity and advanced WAN management without the complexity of larger enterprise appliances. Its fanless design and dual-core processing deliver reliable performance for small to medium-sized networks.

Highlights

• Business VPN router with SD-WAN support for optimized WAN traffic
• Equipped with 4 Gigabit Ethernet LAN ports, 1 Gigabit Ethernet WAN port, and 2 USB 3.0 ports
• Supports up to 25 concurrent VPN tunnels (IPSec, OpenVPN, L2TP, PPTP)
• Stateful inspection firewall, DoS protection, VLAN (802.1Q), and QoS (802.1p)
• Managed via web GUI, CLI, SNMP, or LANCOM Management Cloud

In daily use

The LANCOM 1650E provides secure, high-performance connectivity for branch offices and remote sites. With a firewall throughput of up to 1 Gbps and IPSec VPN throughput up to 500 Mbps, it handles demanding traffic while maintaining security. Its dual-core CPU and 512 MB RAM ensure smooth operation even with multiple VPN tunnels and advanced routing protocols like OSPF and BGP.

Full specifications

• Device type: VPN Router
• WAN interface: 1x Gigabit Ethernet (RJ-45)
• LAN interfaces: 4x Gigabit Ethernet (RJ-45)
• USB ports: 2x USB 3.0 Type A
• VPN protocols: IPSec, OpenVPN, L2TP, PPTP
• Maximum concurrent VPN tunnels: 25
• Firewall throughput: up to 1 Gbps
• IPSec VPN throughput: up to 500 Mbps
• Routing protocols: Static, RIPv1/v2, OSPFv2, BGP
• Management: Web GUI, CLI, SNMP, LANCOM Management Cloud
• Security: Stateful inspection firewall, DoS protection, VLAN (802.1Q), QoS (802.1p)
• Processor: Dual-core CPU
• Memory: 512 MB RAM, 512 MB Flash
• Power supply: External 12V DC adapter
• Power consumption (max): 12 W
• Operating temperature: 0–40 °C
• Mounting: Desktop or wall-mountable
• IPv6 support: Yes

Final note

The LANCOM 1650E is a robust SD-WAN gateway for secure branch networking, combining high VPN performance with comprehensive management options.
