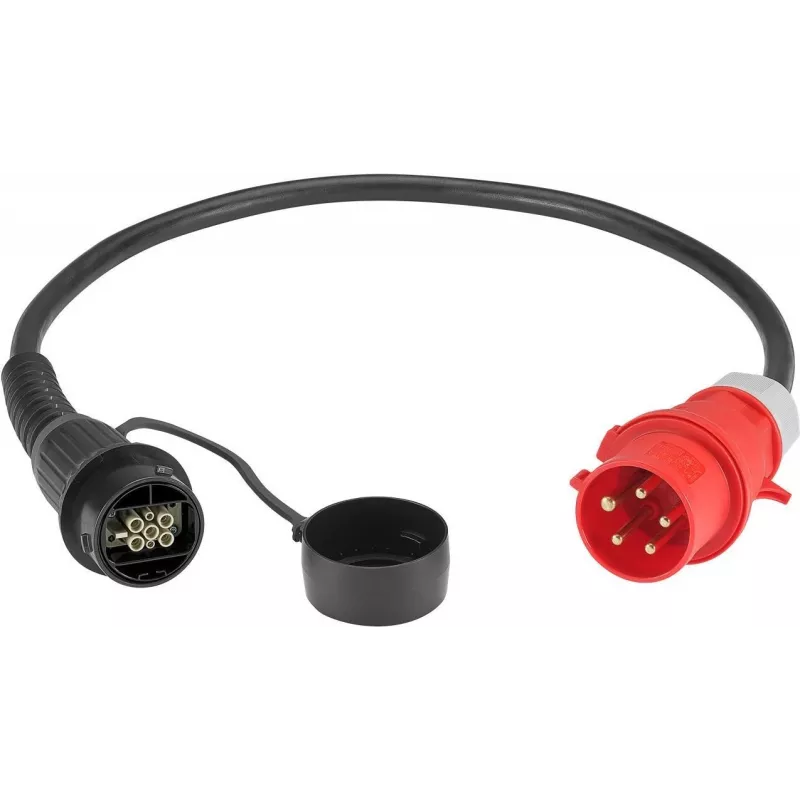

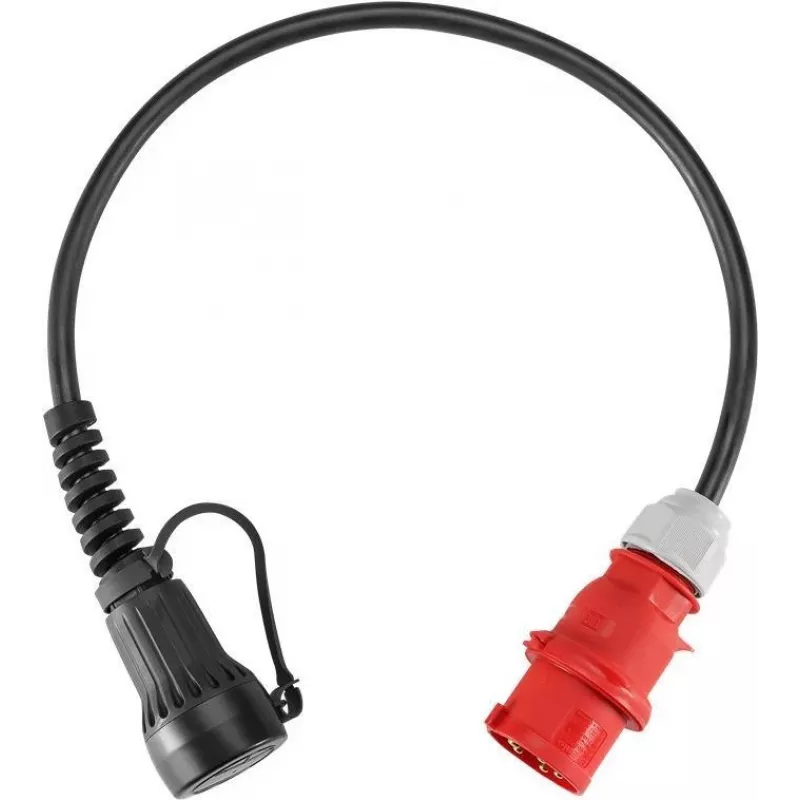

LAPP MOBILITY adattatore di ricarica CEE universale, fino a 22 kW, a 3 fasi (64706)

Charging an electric vehicle from a high-power CEE industrial socket often requires a dedicated wallbox or a fixed charging station. The LAPP MOBILITY CEE Charging Adapter Universal solves this by letting you connect your Type 2 charging cable directly to a 400 V CEE 32 A socket, enabling mobile 22 kW three-phase charging wherever such sockets are available.

Who is it for

EV drivers who need a portable, high-power charging solution for locations with CEE industrial sockets, such as workshops, farms, campsites, or temporary installations. It is suitable for all electric vehicles with a Type 2 inlet when used with a separate Type 2 charging cable.

Main features

• Converts a CEE 32 A 5-pin socket to a Type 2 socket for EV charging
• Supports three-phase charging up to 22 kW (32 A, 400 V)
• Integrated temperature monitoring for safe operation
• Robust housing with IP44 splash protection
• Short 0.5 m adapter cable for flexible positioning

Specifications

• Input connector: CEE 32 A, 5-pin (red)
• Output connector: Type 2 socket (female)
• Rated current: 32 A
• Rated voltage: 400 V AC
• Frequency: 50/60 Hz
• Max charging power: 22 kW
• Phases: 3-phase
• Cable length (adapter side): 0.5 m
• Housing material: high-grade thermoplastic
• Operating temperature: -25°C to +40°C
• Colour: black / red

Tips

Always check that the CEE socket is protected by a suitable RCD and circuit breaker before charging. Use a Type 2 charging cable rated for at least 32 A to take full advantage of the adapter's power capability.
