Lettore barcode portatile Datalogic PD9630-HP 1D/2D Nero Giallo

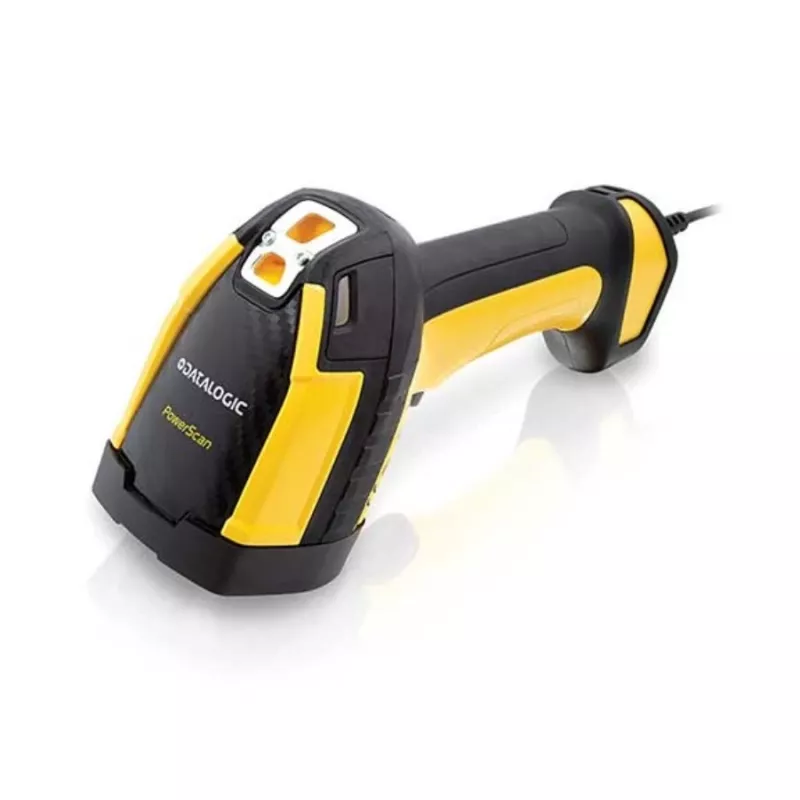

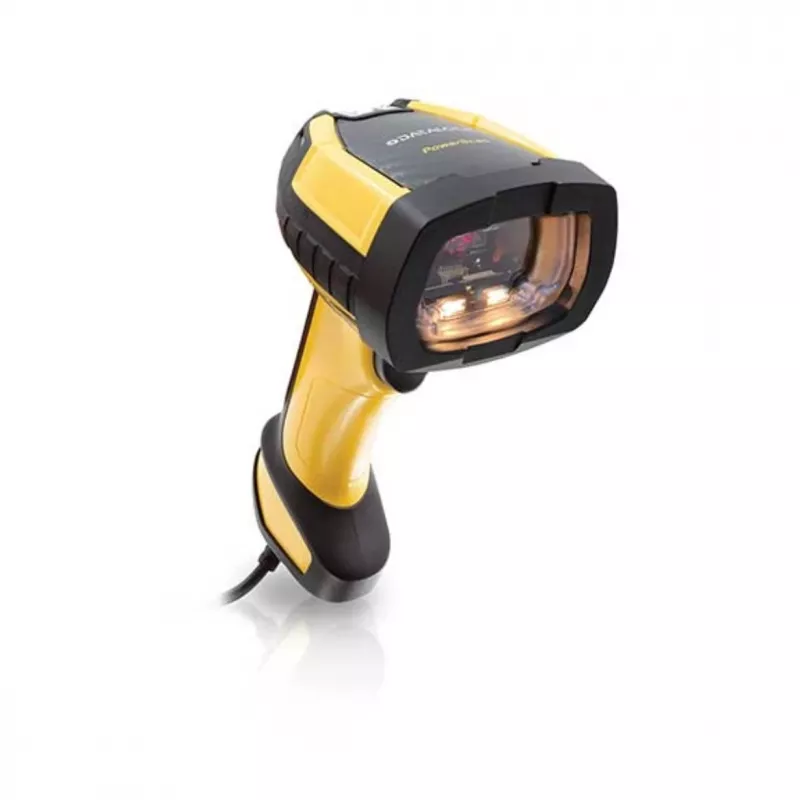

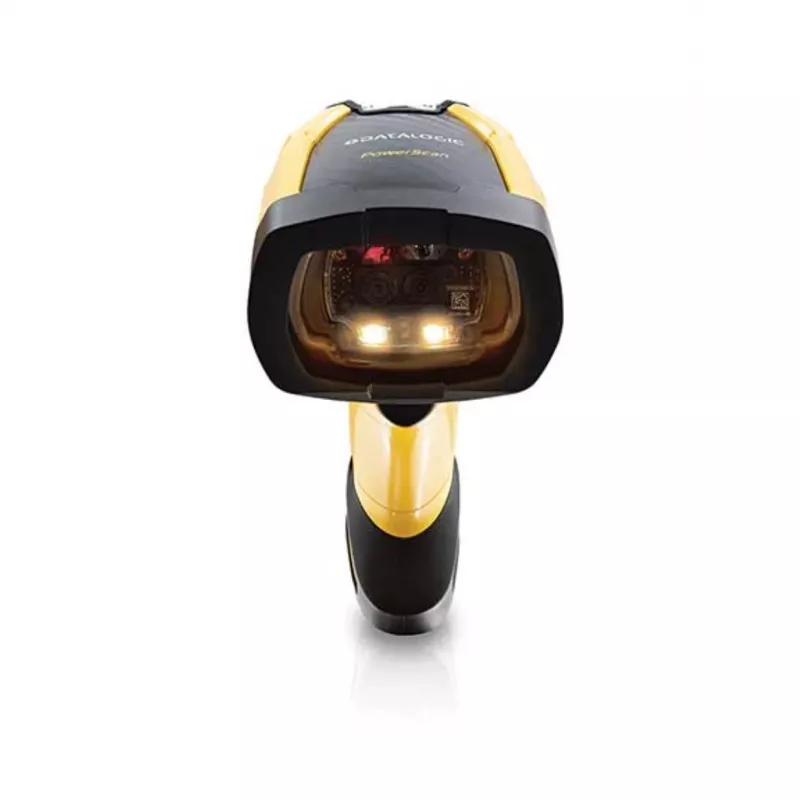

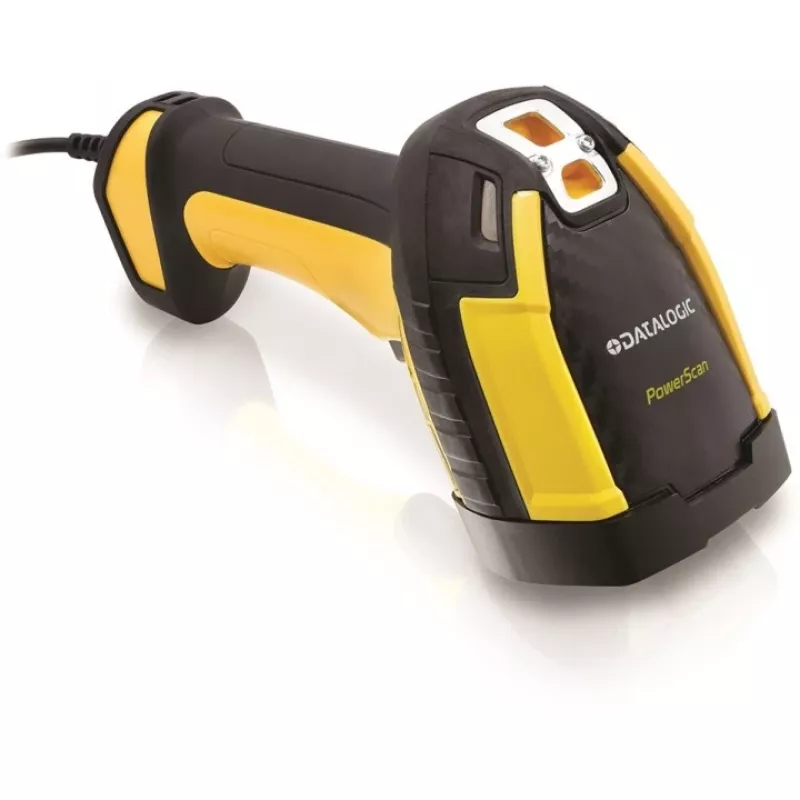

PowerScan PD9630-HP High Performance USB/RS-232 Multi-Interface is an ultra-rugged area imager designed for industrial handheld use. It features a balanced ergonomic shape to reduce operator fatigue, an intuitive aiming system for high first-pass reading rates, and multi-interface connectivity including USB and RS-232, with optional Ethernet for standard or industrial networks.

Advantages

The PowerScan PD9630-HP combines an ultra-rugged housing with improved ergonomics to withstand harsh environments and reduce wrist strain during repetitive scanning. Three optical configurations (Standard Range, High Performance, and Document Capture) address varying needs from general barcode reading to high-density codes and wide-angle document capture. Operator feedback is enhanced through Datalogic’s 3 Green Lights (3GL™), a loud beeper, vibration, a Green Spot directly on the code, and dual Good Read LEDs for visible confirmation at any angle. Motionix™ motion-sensing automatically switches between handheld and presentation modes based on user movement.

Key specifications

• Model: PowerScan PD9630-HP
• Interfaces: USB, RS-232, optional Ethernet
• Optical options: Standard Range, High Performance, Document Capture
• Form factor: Ultra-rugged area imager, handheld
• Feedback: 3 Green Lights (3GL™), beeper, vibration, Green Spot, dual Good Read LEDs
• Motion sensing: Motionix™ for automatic mode switching

How to use

Hold the scanner in a natural grip to take advantage of its balanced ergonomics. Aim the scanner so the aiming pattern aligns with the barcode or document; the aiming system and Green Spot help ensure accurate targeting. Use the appropriate optical model for your application: Standard Range for general use, High Performance for high-density barcodes and extended depth of field, or Document Capture for wide-angle codes and document scanning. Connect via USB or RS-232, or install the optional Ethernet module for networked environments. Allow Motionix™ to detect user movement to switch automatically between handheld and presentation scanning modes.

Recommendations

Choose the optical option that matches your typical barcode types and reading distances, and enable Motionix™ to streamline transitions between handheld and hands-free operation. For networked installations, fit the optional Ethernet interface.
