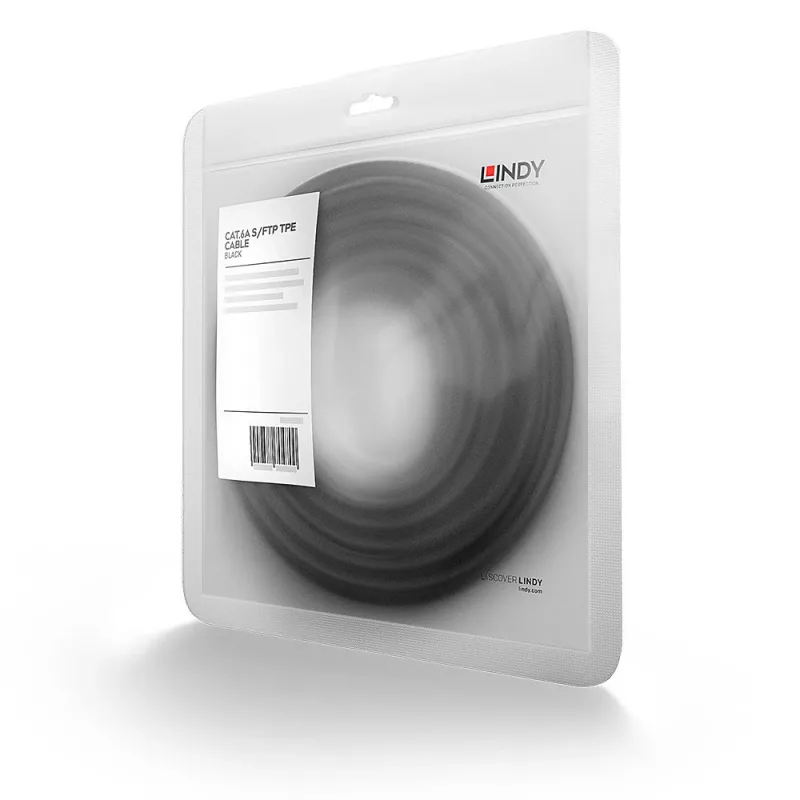

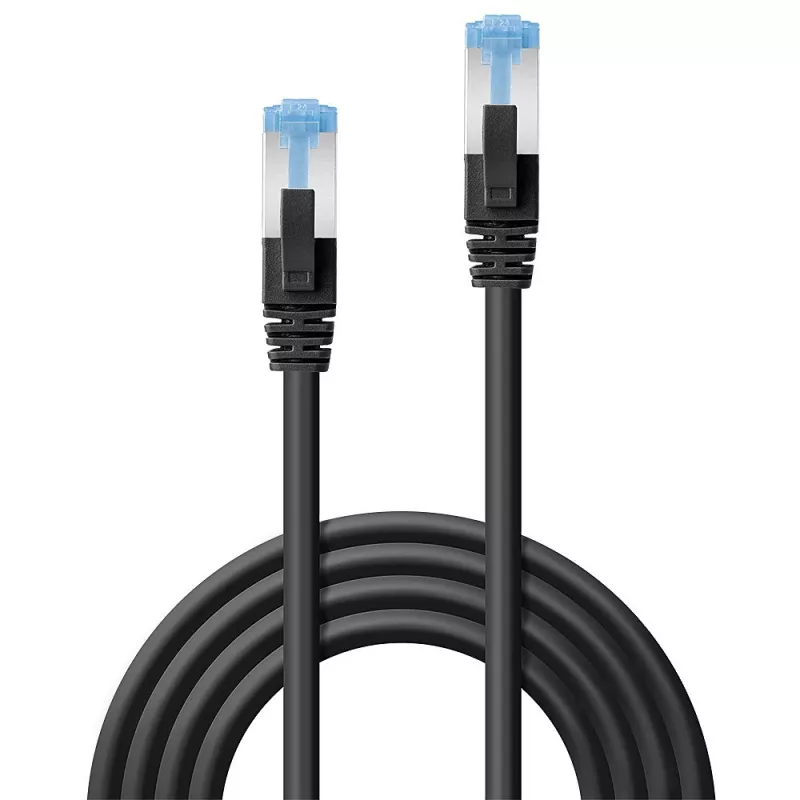

Lindy 47416 Cavo di rete nero 5 m Cat6a S/FTP (S-STP)

The Lindy 47416 is a 5 m Cat6A networking cable with S/FTP construction (pairs in metal foil) and a 6.0 mm diameter TPE sheath. It supports 10/100/1000Base-T and 10GBase-TX transmission, meets Class EA / Category 6A performance and is suitable for frequencies up to 500 MHz. Both ends terminate in shielded RJ45 connectors with gold-plated contacts and a snagless, latch-protected design. The cable is compatible with PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) and is finished in black.

Advantages

The cable’s S/FTP design with individually foil-shielded pairs and an overall shield reduces crosstalk and external interference, improving signal integrity for high-speed networks. Gold-plated contacts on shielded RJ45 plugs ensure reliable connectivity and corrosion resistance. Its Cat6A Class EA specification and 27 AWG conductors allow stable Gigabit and 10 Gigabit transmission over the specified length. The TPE sheath provides flexibility and durability while maintaining a slim 6.0 mm diameter for easier routing.

Suitable for

• Office and data center horizontal cabling
• High-speed Ethernet connections up to 10GBase-T
• PoE and PoE+ powered devices such as IP phones, cameras and access points
• Patch panels, switches and network endpoints

Key specifications

• Length: 5 m
• Standard: Category 6A / Class EA
• Construction: S/FTP (pairs in metal foil), 4 pairs, 27 AWG
• Diameter: 6.0 mm
• Sheath material: TPE

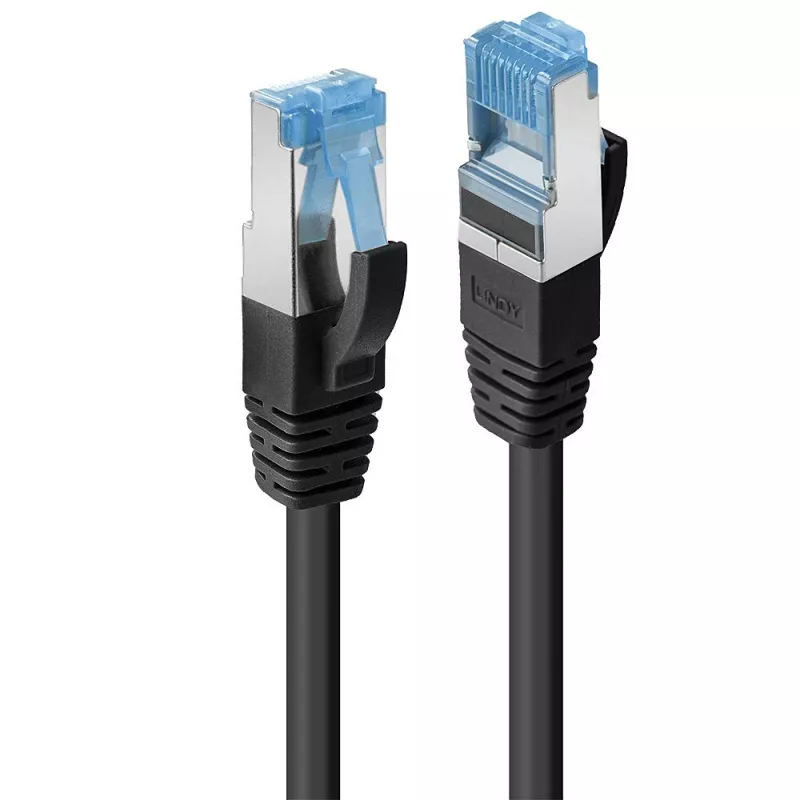

• Connectors: Shielded RJ45 (blue/transparent), snagless, gold-plated contacts
• Data rates: 10/100/1000Base-T, 10GBase-TX
• Frequency: up to 500 MHz
• Standards: ISO/IEC 11801:2002, EN 50173, Fluke channel test ISO 11801 Class EA
• Power over Ethernet: IEEE 802.3af / IEEE 802.3at
• Color: Black

How to use

Connect the shielded RJ45 plug at each end to the corresponding RJ45 ports on network devices such as switches, patch panels or NICs. Ensure the shield is properly grounded at least at one end when used in environments with significant electromagnetic interference to maintain the effectiveness of the S/FTP shielding. Route the cable without excessive bending (avoid tight bends below the manufacturer’s recommended bend radius) and secure it with appropriate cable management to prevent strain on the connectors.

Recommendations

For optimal 10G performance, use within recommended horizontal cabling lengths and verify installation with channel certification testing (Fluke or equivalent) to confirm Class EA parameters. Ground shielding when required and avoid running the cable parallel to strong power lines for extended distances.
