Lindy 47664 Cavo di rete giallo 3 m Cat7 S/FTP (S-STP)

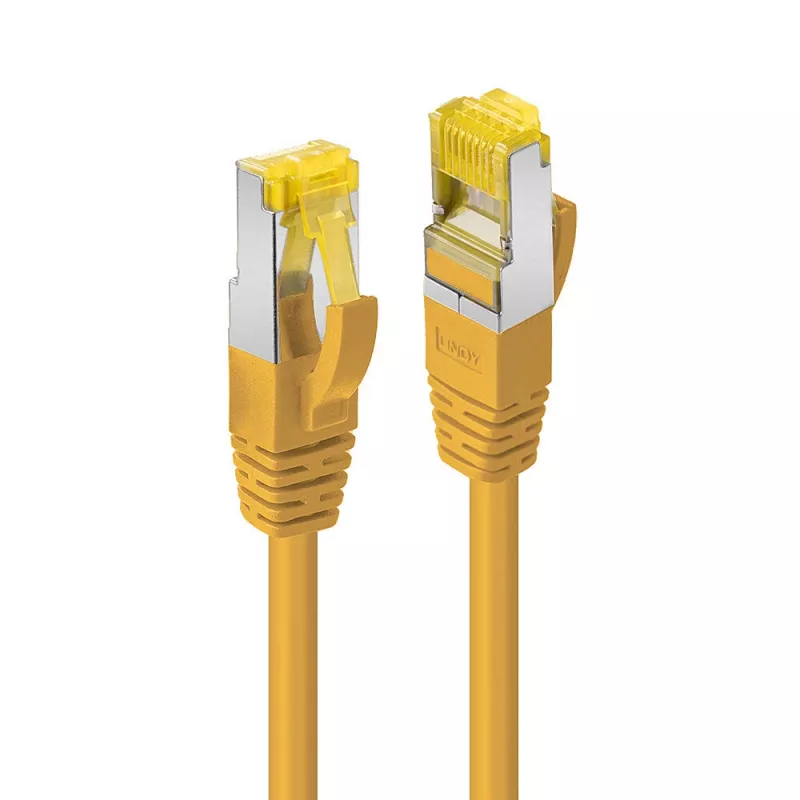

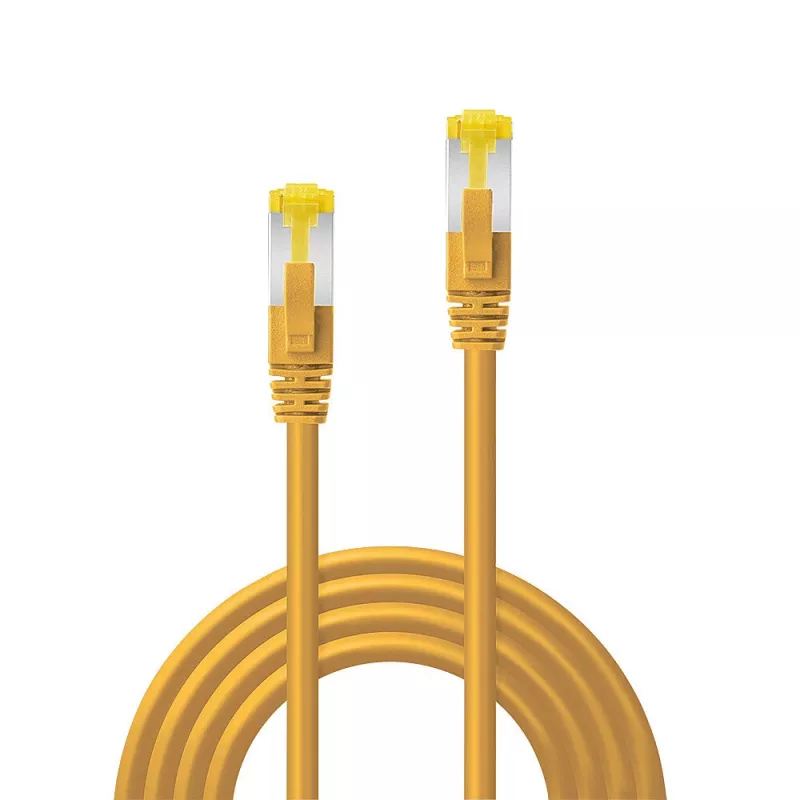

Cat.7 S/FTP network cable supporting bandwidths up to 600 MHz, equipped with gold-plated RJ‑45 contacts and a snagless strain relief. Designed for applications requiring reliable 10GBase‑T connections, the cable uses fully braided shielding with individual foil shielding for each pair and is manufactured and tested to ISO/IEC 11801. The product is available in multiple lengths and colours and is supplied individually in a protective polybag.

Advantages

The S/FTP construction (braided overall shield plus foil per pair) reduces electromagnetic interference and crosstalk, supporting stable data transmission up to 600 MHz and 10GBase‑T speeds. Gold‑plated contacts provide corrosion resistance and long‑term reliable connections, while the snagless strain relief protects the connector latch during installation and removal. The cable is ISO/IEC 11801 compliant and individually packaged.

Suitable for

• Data centre and server room patching
• Rack mounting in network and control cabinets
• 10GBase‑T Ethernet links and high‑speed LANs
• Environments requiring reduced electromagnetic interference

Key specifications

• Cable category: Cat.7 (S/FTP)
• Bandwidth/operating frequency: up to 600 MHz
• Connector type: RJ‑45 to RJ‑45
• Shielding: braided overall shield + foil per pair (S/FTP)
• Standards: manufactured and tested to ISO/IEC 11801
• Available lengths: 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m, 7.5 m, 10 m, 15 m, 20 m, 30 m
• Available colours: Black, Blue, Grey, Red, White, Yellow, Green

How to use

Connect one RJ‑45 plug to the network port of your switch, router or network device and the other plug to the server, workstation or patch panel. Ensure the connector latch engages fully and route the cable without sharp bends or excessive pulling to avoid mechanical stress. When installing in racks, secure the cable with appropriate cable management to maintain bend radius and shielding effectiveness.

Recommendations

For best performance, use the cable for links up to the rated 10GBase‑T speed and within the specified lengths. Avoid running the cable parallel to high‑voltage power lines to minimise potential interference and always observe correct bend radius and strain relief practices during installation.
