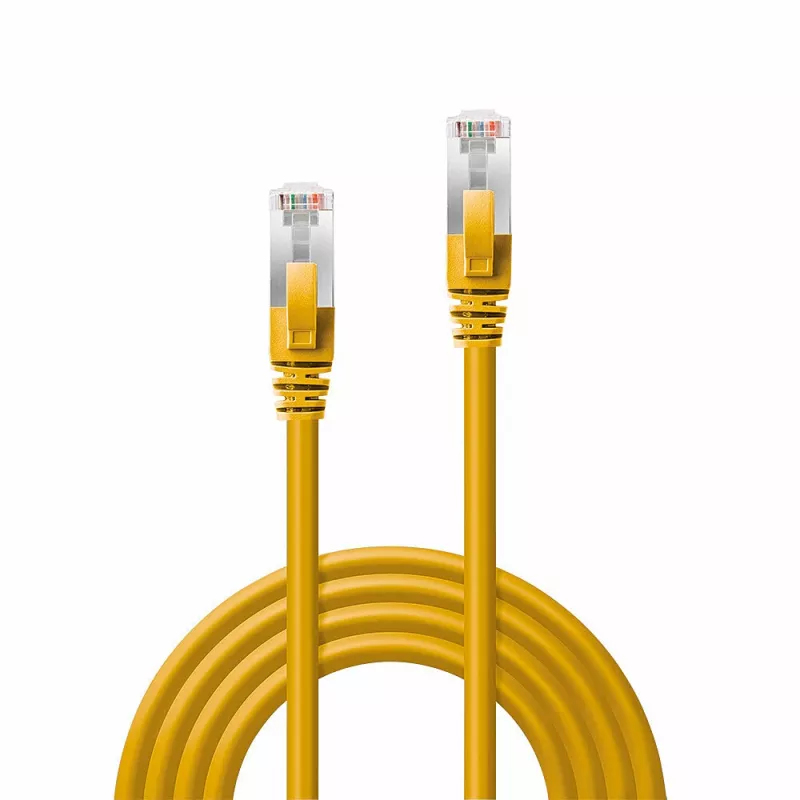

Lindy 47867 cavo di rete giallo 7,5 m Cat6a S/FTP (S-STP)

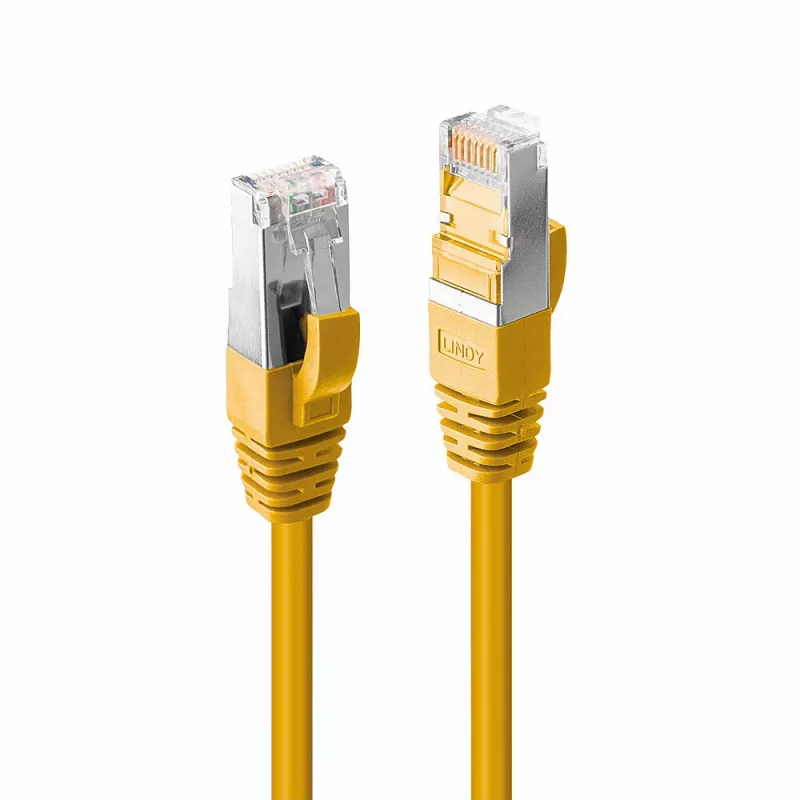

The Lindy 47867 networking cable is a 7.5 m Cat6A S/FTP Ethernet cable designed for data networks requiring up to 10 GBase-T performance. It features foil shielding for each twisted pair and an overall braided shield to reduce electromagnetic interference, gold-plated RJ-45 contacts for reliable mating, and a snagless connector design. The sheath is made of low-smoke, zero-halogen (LSZH) material, suitable for installations where reduced smoke and no halogen emissions are required.

Advantages

Supports up to 500 MHz operating frequency and 10 Gigabit Ethernet (10GBase-T) performance, while S/FTP construction (foil for pairs plus braid overall) provides high immunity to crosstalk and external interference. Gold-plated contacts improve contact reliability and corrosion resistance over time. The snagless strain-relief design protects the connector latch during installation and removal, and the LSZH jacket reduces smoke and eliminates toxic halogen emissions in case of fire. The cable is individually packaged in a polybag.

Suitable for

• High-speed Ethernet links up to 10 GBase-T
• Server rooms, data centers and office LANs
• Structured cabling where reduced EMI is required
• Public buildings and other areas demanding low-smoke, halogen-free cables

Key specifications

• Standard: Cat6A (ISO/IEC 11801 compliant)
• Shielding: S/FTP (foil per pair + overall braid)
• Bandwidth: up to 500 MHz
• Length: 7.5 m
• Connectors: RJ-45 to RJ-45, gold-plated contacts
• Jacket: LSZH (low smoke, zero halogen)
• Colour: Yellow

How to use

Connect each RJ-45 end to the corresponding Ethernet ports on network devices such as switches, routers or NICs. Ensure connectors are fully inserted until the latch engages; the snagless design helps prevent latch damage during plugging and unplugging. Route the cable to avoid sharp bends and sources of strong electromagnetic interference for optimal performance. The cable is ready to use out of the polybag packaging.

Recommendations

For reliable 10 GBase-T operation, maintain proper installation practices: avoid tight bends (respect the manufacturer’s minimum bend radius), keep cable runs away from high-voltage power lines, and use compatible Cat6A-rated patch panels and keystone jacks. Inspect connectors for damage before installation and replace if deformation is observed.
