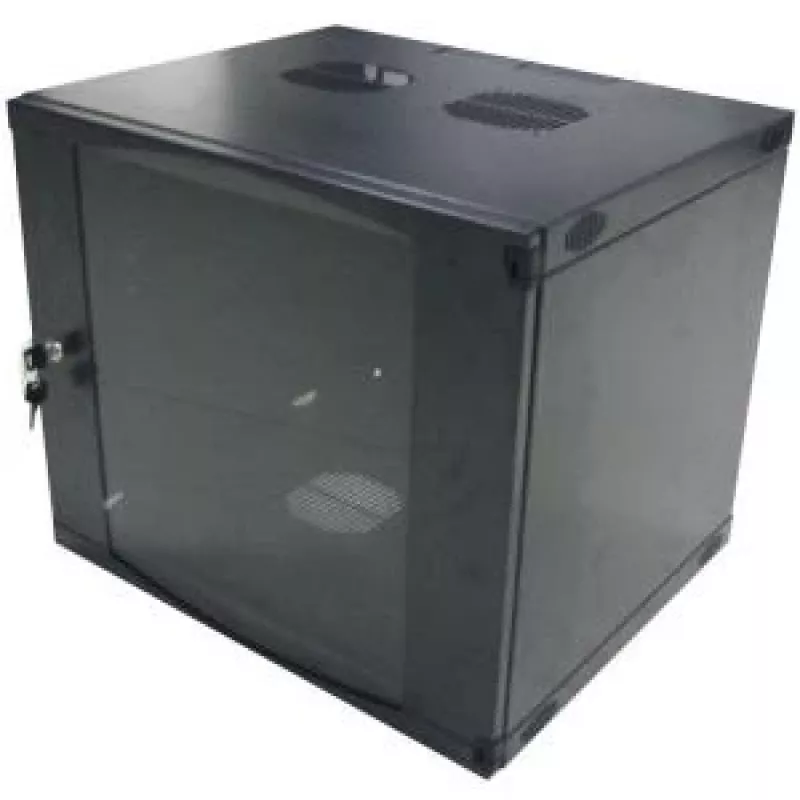

LogiLink Case da parete 19 pollici monoblocco 9U, Flat-Pack, nero

For installations where floor space is at a premium, this 9U wall-mount cabinet offers a secure, space-saving housing for 19-inch equipment. Its flat-pack design reduces shipping volume and allows easy transport to upper floors or tight spaces, while the 1.2 mm cold-rolled steel body with powder coating ensures long-term durability. The tempered glass front door with lock protects your devices from unauthorized access, and the removable side panels simplify cable routing and maintenance.

Highlights

• 9U wall-mount enclosure for standard 19-inch equipment
• Flat-pack (unassembled) design for convenient handling and storage
• Solid 1.2 mm SPCC cold-rolled steel construction with powder-coated finish
• Tempered glass front door with lock for security
• Removable side panels for easy access during installation
• Passive ventilation via perforated top and bottom panels
• Complies with IEC 297-2 and DIN 41494 standards

In daily use

Mount this cabinet on a wall in a network closet, workshop, or office to keep switches, patch panels, and other 19-inch devices organized and protected. The 500 mm usable depth accommodates most standard equipment, and the top and bottom cable entry points allow clean, professional cable management. With a maximum static load capacity of 60 kg, it supports multiple devices without compromising stability. The IP20 protection rating makes it suitable for indoor environments where dust and moisture are controlled.

Full specifications

• Rack type: Wall-mount enclosure
• Rack units: 9U
• Form factor: 19-inch
• External dimensions (W x D x H): 500 x 570 x 470 mm
• Usable depth: 500 mm
• Material: SPCC cold-rolled steel
• Color: Black (RAL 9005)
• Door type: Tempered glass front door
• Lock type: Lockable front door
• Side panels: Removable
• Assembly: Flat pack (unassembled)
• Max. static load capacity: 60 kg
• Protection class: IP20
• Cable entry: Top and bottom
• Ventilation: Passive (perforated top/bottom)
• Compliance: IEC 297-2, DIN 41494/Part 7, DIN 41494/Part 1
• Mounting type: Wall mounting
• Finish: Powder coated

Final note

A practical choice for secure, space-efficient network installations, this cabinet combines robust construction with easy assembly and maintenance.
