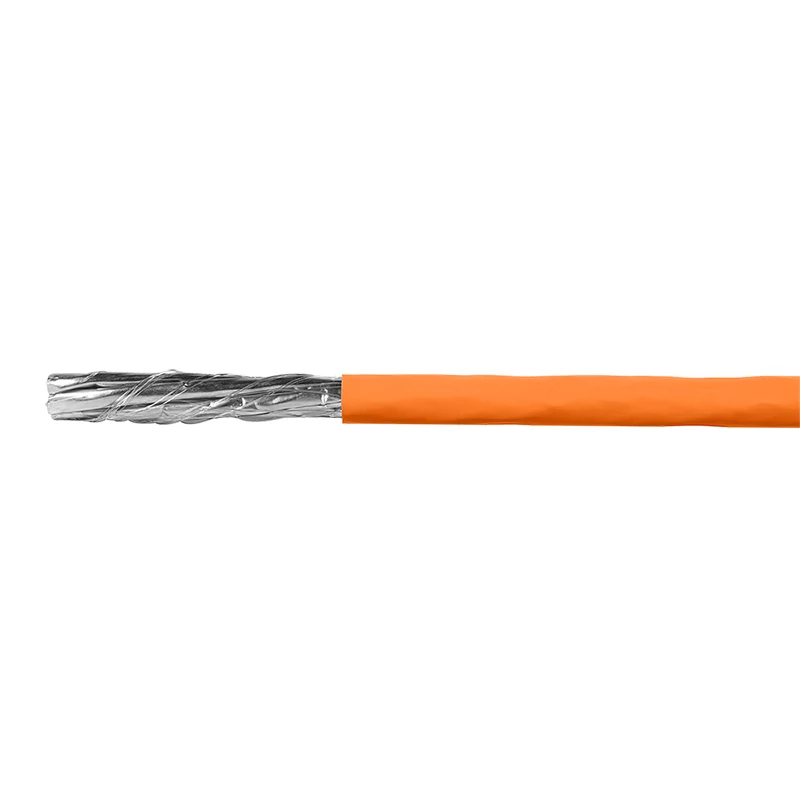

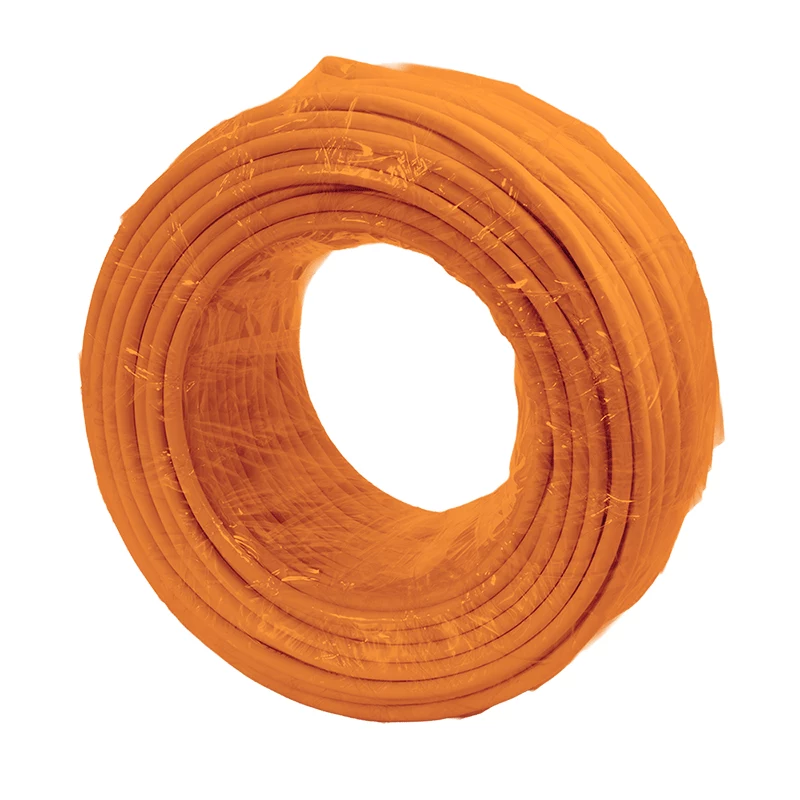

LogiLink cavo di installazione Cat.7 600 MHz 23 AWG CCA, S/FTP 20 m, arancione

Experience 10 Gigabit Ethernet performance with this 600 MHz Cat.7 installation cable, engineered for high-speed structured cabling in demanding environments.

Overview

The LogiLink CPV0087 is a premium Cat.7 bulk cable delivering reliable 10GBASE-T connectivity over 20 metres. Its S/FTP construction—individual foil shielding for each pair plus an overall tinned copper braid—provides exceptional immunity to electromagnetic interference (EMI) and alien crosstalk, making it ideal for data centres, office networks, and industrial applications. The orange LSZH jacket ensures safety in public spaces by emitting low smoke and zero halogen in case of fire.

What stands out

• Supports up to 10 Gigabit Ethernet for high-speed data transfer
• 600 MHz bandwidth exceeds Cat.6a specifications

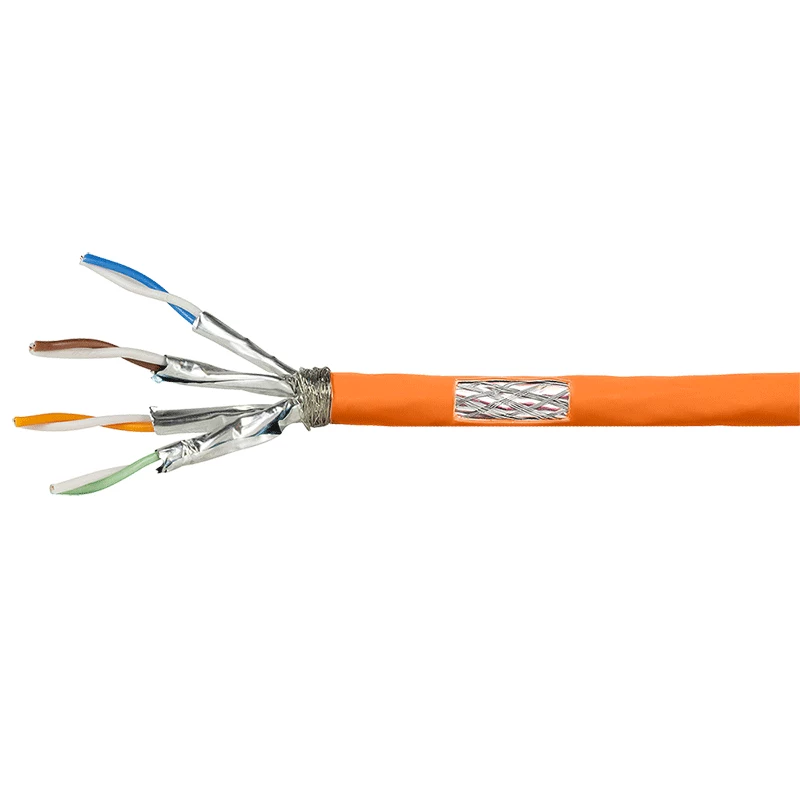

• S/FTP shielding with PIMF pairs minimises crosstalk and EMI
• CCA conductors offer a cost-effective alternative to solid copper
• LSZH jacket is flame-retardant and safe for indoor use

Technical details

• Cable category: Cat.7
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Frequency: 600 MHz
• Conductor material: CCA (Copper Clad Aluminum)
• Wire gauge: 23 AWG
• Length: 20 m
• Colour: Orange
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Number of pairs: 4
• Pair shielding: PIMF (Pairs in Metal Foil)
• Overall shielding: Tinned copper braid
• Impedance: 100 Ohm
• Outer diameter: approx. 7.5 mm
• Operating temperature: -20°C to 60°C
• Standards: ISO/IEC 11801, EN 50173

Our verdict

A robust and reliable Cat.7 cable that delivers top-tier performance for high-speed networking, with excellent shielding and a safety-focused jacket.
