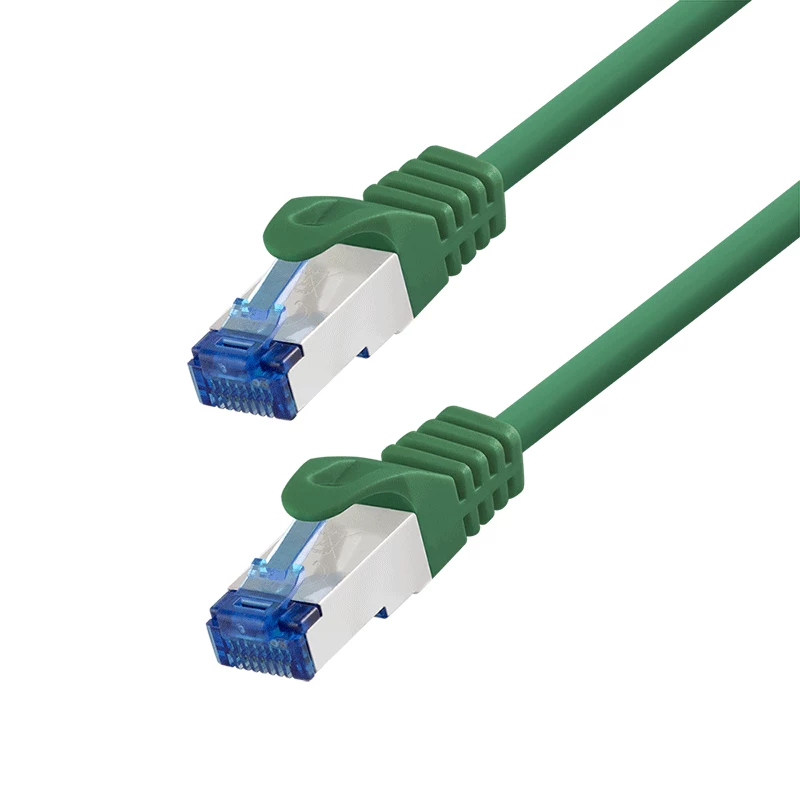

LogiLink cavo patch Cat.6A S/FTP LSZH, CCA, verde, 5 m, EconLine

When a network technician at a mid-sized enterprise needs to connect a high-performance workstation to a 10-Gigabit switch in a crowded server room, cable performance and safety are paramount. The LogiLink Cat.6A S/FTP LSZH Patch Cable delivers exactly that: a dependable 5-meter link with full shielding and a halogen-free jacket. Built with copper-clad aluminum conductors and a stranded design, it balances cost efficiency with the bandwidth required for 10GBASE-T networks.

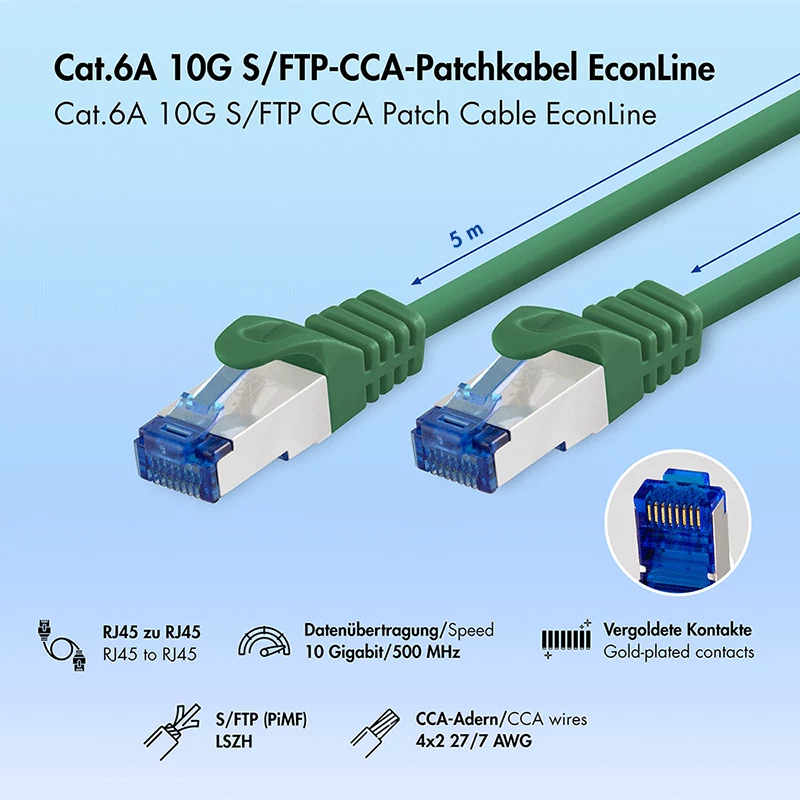

Key specifications

• Category: Cat.6A (Class EA), supporting up to 500 MHz bandwidth

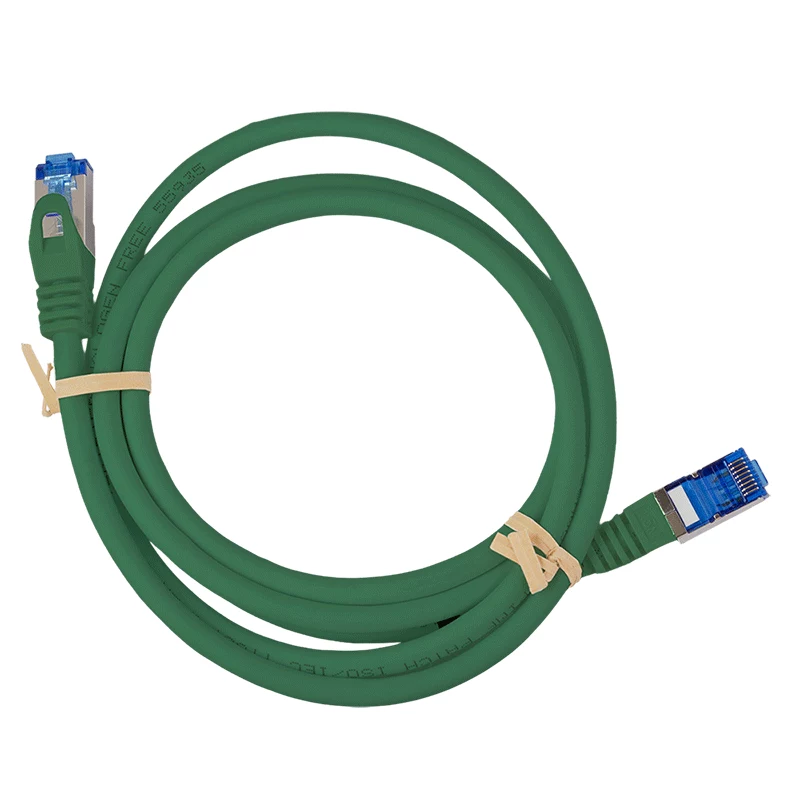

• Length: 5 meters (16.4 ft), ideal for rack-to-device connections
• Shielding: S/FTP (PIMF) – individually foiled pairs plus overall braid for superior EMI/RFI rejection
• Conductor material: CCA (copper-clad aluminum), AWG 26/7 stranded
• Jacket: LSZH (low smoke zero halogen) – emits minimal smoke and no toxic halogens in case of fire
• Connectors: RJ45 male to RJ45 male, gold-plated contacts (50µ") for reliable connectivity
• Wiring: TIA/EIA 568B, straight-through pinout
• Data rate: up to 10 Gbps (10GBASE-T)
• Compliance: RoHS, CE

Why choose it

The EconLine series from LogiLink offers an excellent price-to-performance ratio without compromising on essential features. The S/FTP shielding ensures stable 10-Gigabit transmission even in electrically noisy environments, while the LSZH jacket makes it suitable for public buildings, offices, and anywhere fire safety regulations demand low-smoke, halogen-free cabling. The green color aids in quick identification and organization.

Ideal use cases

• Connecting servers, switches, and patch panels in data centers and wiring closets
• High-speed workstation links for CAD, video editing, or large data transfers
• Office networks where LSZH materials are required by building codes
• Home or SOHO setups needing future-proof 10G connectivity

Good to know

The cable is part of LogiLink's EconLine, designed for cost-conscious buyers who still demand Cat.6A performance. The stranded CCA conductors provide adequate flexibility for frequent moves, though solid copper is generally preferred for permanent installations. Always verify that your equipment supports the required cable category and shielding type for optimal performance.
