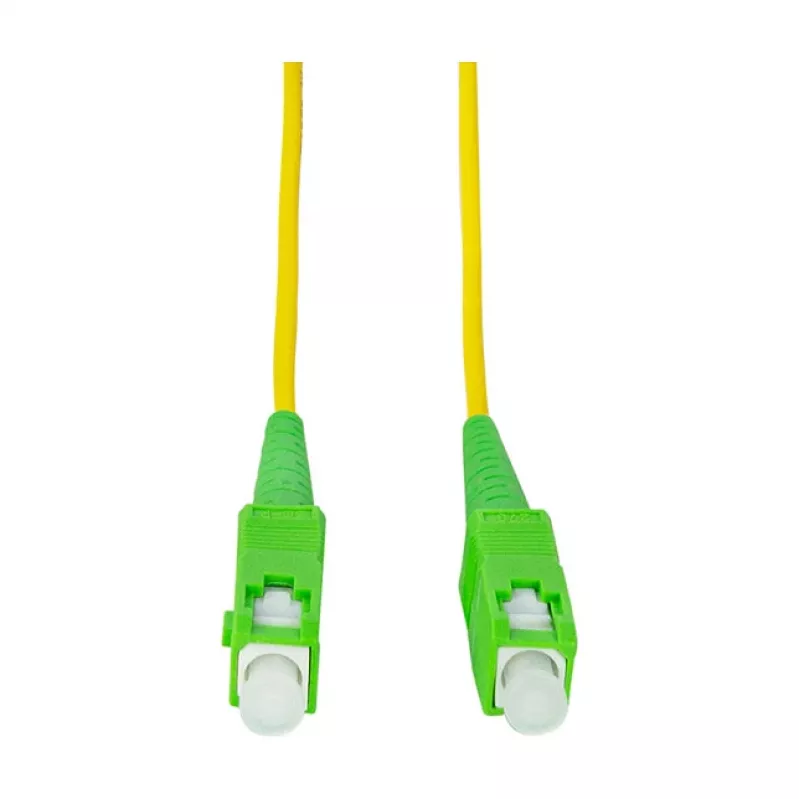

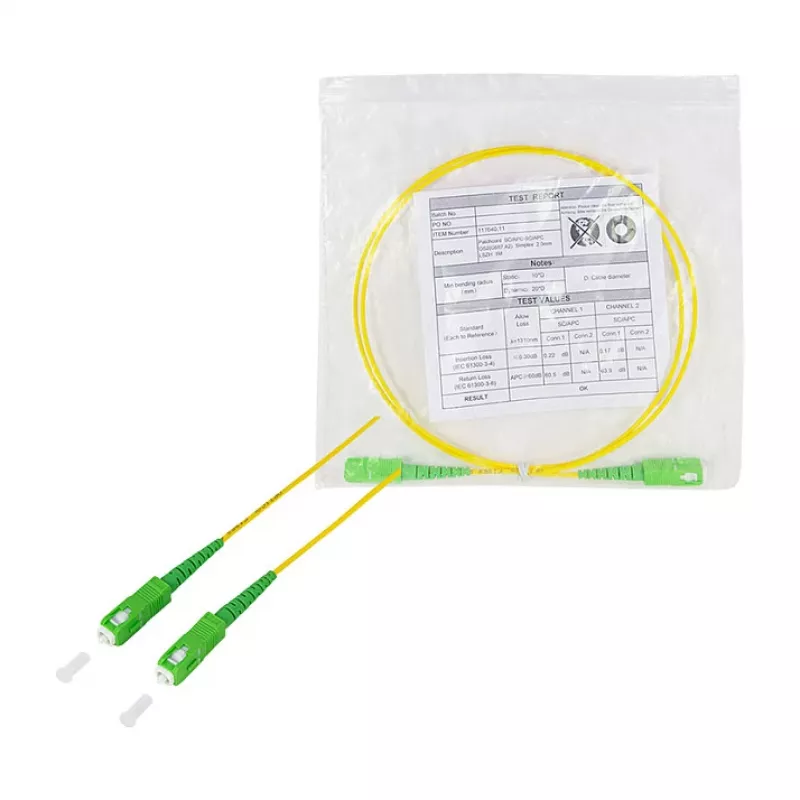

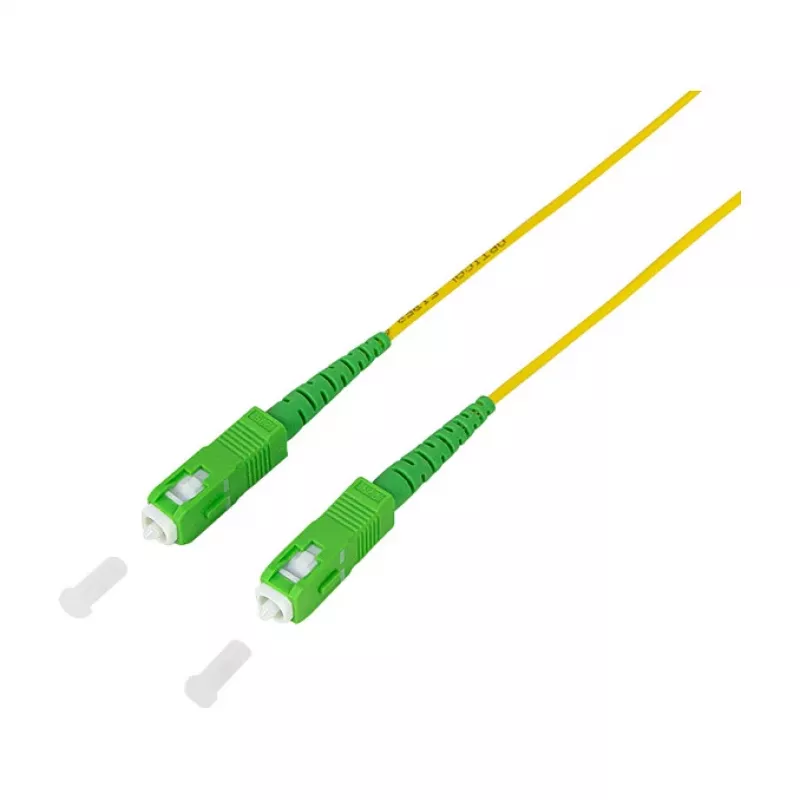

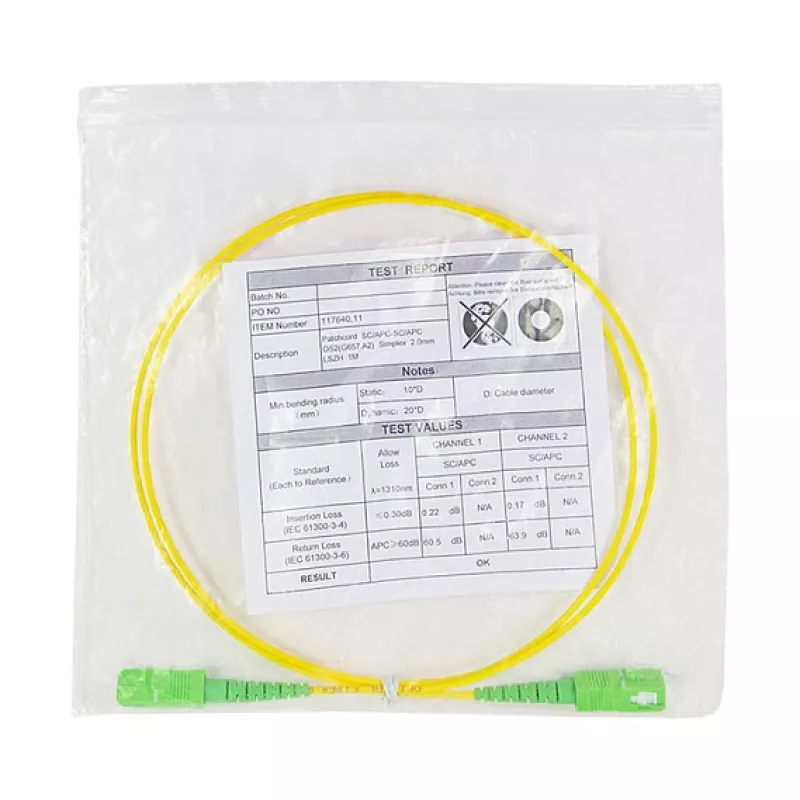

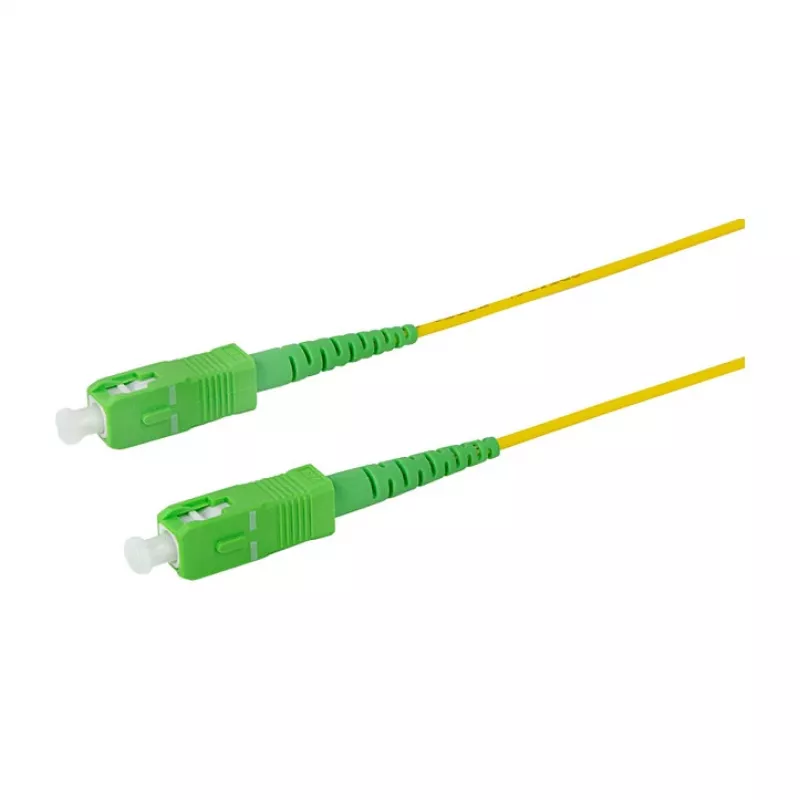

LogiLink Cavo patch in fibra ottica – simplex, OS2 SM G.657.A2, SC/APC su SC/APC, 1 m, giallo

With a minimum bend radius of just 5 mm, this LogiLink simplex fibre optic patch cable delivers exceptional flexibility without compromising signal integrity. Engineered to OS2 single-mode standard with G.657.A2 bend-insensitive fibre, it is an ideal choice for high-density data centres, FTTH deployments, and enterprise LAN environments.

Overview

The cable features a 9/125 µm core/cladding, ensuring tight tolerances and excellent long-haul transmission characteristics. Terminated with SC/APC connectors on both ends, it delivers low insertion loss and high return loss for reliable, stable connections. The LSZH (Low Smoke Zero Halogen) jacket in yellow not only meets safety regulations but also provides durability for everyday use.

What stands out

• Bend-insensitive G.657.A2 fibre – install in tight spaces with confidence.
• Ultra-low insertion loss (≤0.3 dB) and high return loss (≥60 dB) for superior signal quality.
• Robust SC/APC ceramic ferrule connectors for accurate alignment.
• Simplex design – perfect for single-fibre applications.
• LSZH jacket – reduces toxic fumes in case of fire.

Technical details

• Cable length: 1 m
• Fibre type: OS2 Single-Mode 9/125 µm
• Standard: ITU-T G.657.A2
• Connectors: SC/APC to SC/APC
• Insertion loss: ≤0.3 dB
• Return loss: ≥60 dB
• Minimum bend radius: 5 mm
• Operating temperature: -20°C to +70°C
• Jacket material: LSZH, Yellow
• Diameter: 3.0 mm
• Compliance: RoHS, CE

Our verdict

For professionals seeking a reliable, high-performance single-mode patch cord, this LogiLink cable is a top contender. Its bend-insensitive fibre and robust connectors make it a smart choice for demanding installations.
