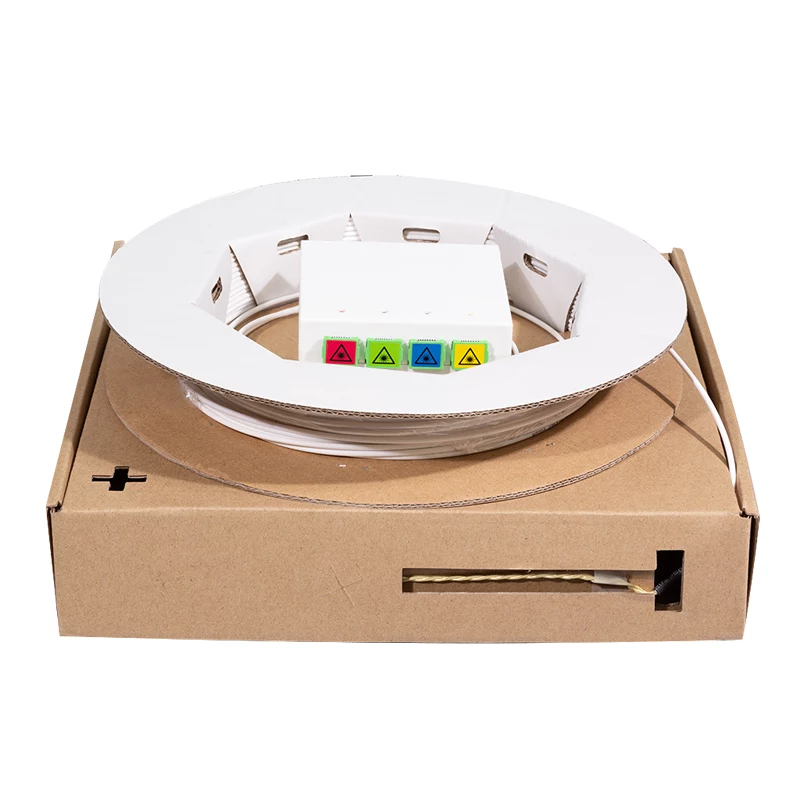

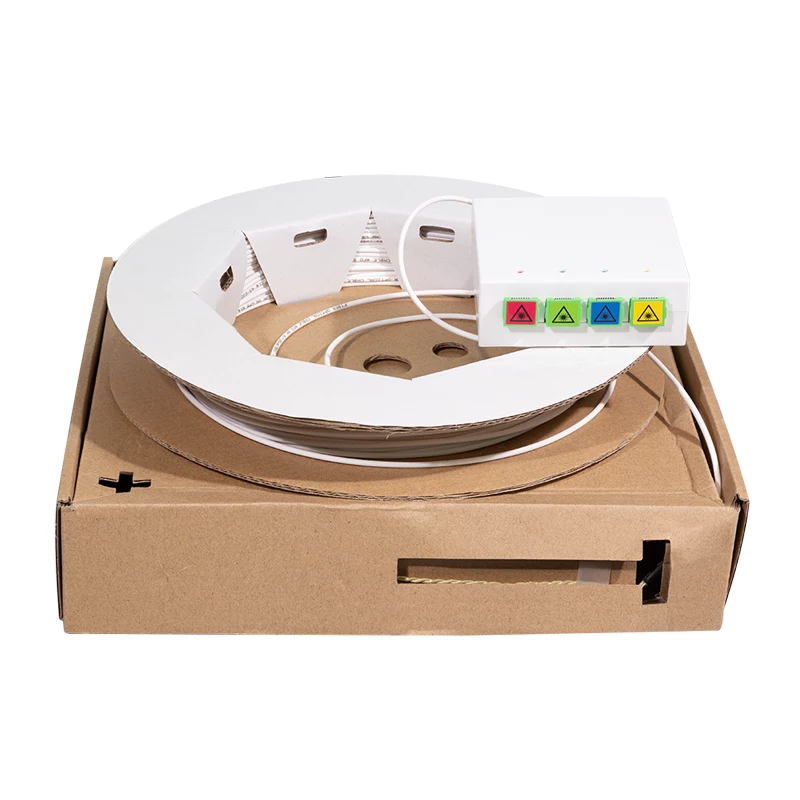

LogiLink FB4SC50 scatola di terminazione FTTH con cavo OS2 Singlemode SC/APC 50 m, bianco

With an insertion loss of ≤ 0.2 dB and return loss of ≥ 60 dB, this LogiLink FTTH termination box ensures a clean, low-attenuation optical link for high-speed fiber-to-the-home installations. The pre-terminated 50 m OS2 singlemode cable with SC/APC connectors provides a reliable, plug-and-play connection between the fiber entry point and your ONT or router.

Overview

The LogiLink FB4SC50 combines a 4-port SC/APC termination box with a 50 m LSZH jacketed drop cable, all pre-assembled and ready for indoor deployment. Designed for FTTH applications, it accommodates up to four SC/APC adapters, allowing flexible splicing and distribution. The white, low-smoke zero-halogen jacket meets strict fire safety requirements, making it suitable for residential and commercial buildings. The cable is a 9/125 µm OS2 singlemode fiber, optimized for 1310 nm and 1550 nm wavelengths, supporting current and future PON standards.

What stands out

• Pre-terminated 50 m cable with SC/APC connectors on both ends – no field termination needed
• Low insertion loss (≤ 0.2 dB) and high return loss (≥ 60 dB) for excellent signal integrity

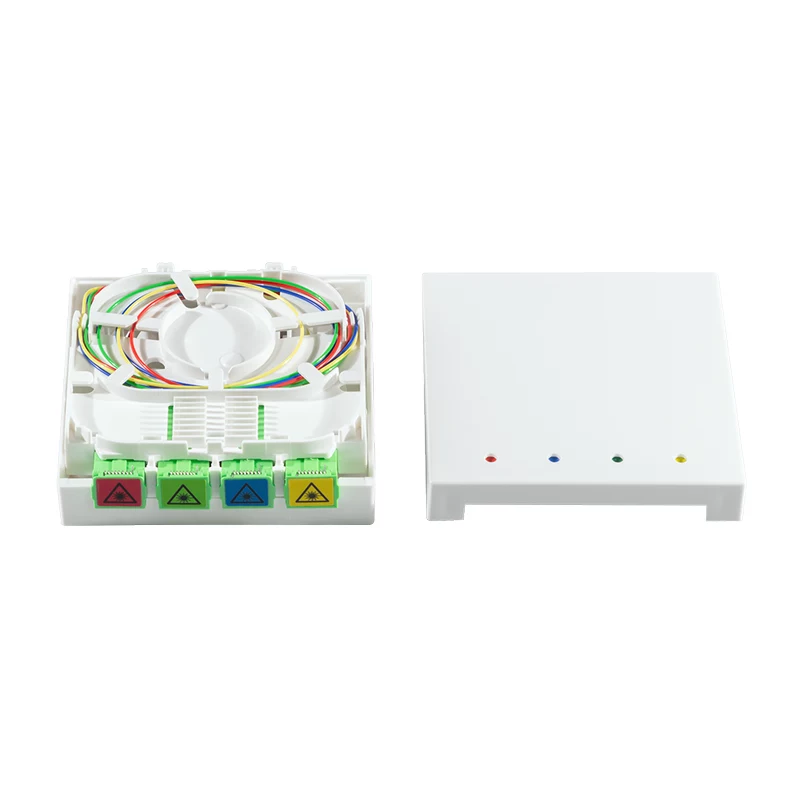

• 4 x SC/APC adapter ports in the termination box for flexible fiber management
• LSZH white jacket – low smoke, zero halogen, flame retardant
• OS2 singlemode fiber (9/125 µm) supports 1310 nm and 1550 nm
• Compact and lightweight design for easy wall mounting

Technical details

• Brand: LogiLink
• Model: FB4SC50
• MPN: FB4SC50
• EAN: 4052792066562
• Cable type: Fiber optic patch cable
• Fiber type: Singlemode OS2 (9/125 µm)
• Connector A: SC/APC
• Connector B: SC/APC
• Connector configuration: Simplex
• Cable length: 50 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: White
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 60 dB
• Operating temperature: -20°C to +70°C
• Cable diameter: 3.0 mm
• Polishing type: APC (Angled Physical Contact)
• Standards compliance: RoHS, CE
• Application environment: Indoor
• Wavelength support: 1310 nm, 1550 nm

Our verdict

A complete, ready-to-install FTTH solution that saves time and ensures reliable optical performance. The pre-terminated cable and robust termination box make it ideal for professional installers and DIY enthusiasts alike.
