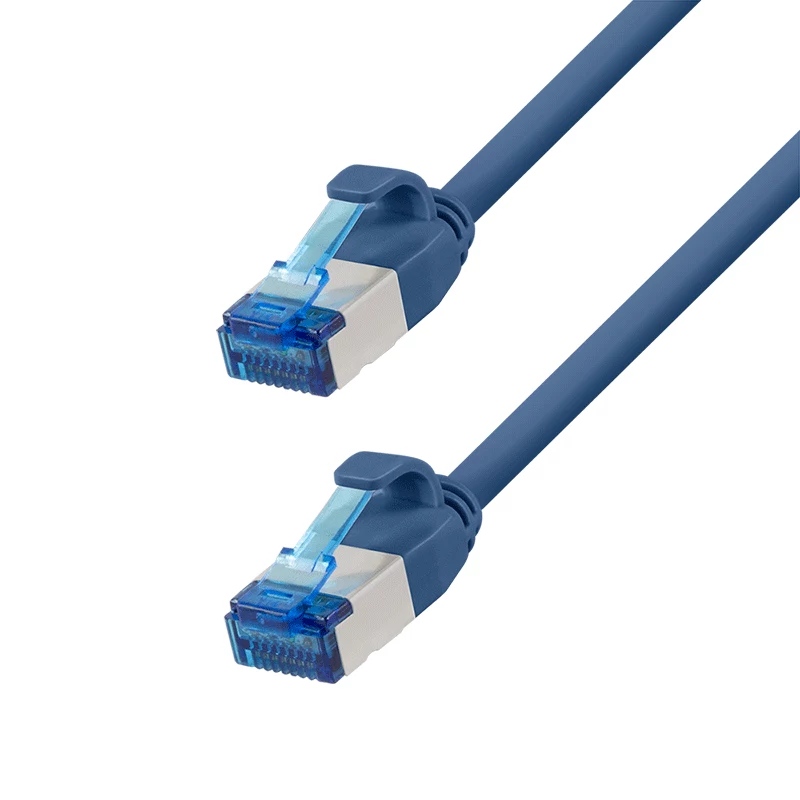

LogiLink SlimLine cavo patch Cat.6A S/FTP LSZH, blu, 3 m

In a crowded server room, where every rack unit counts and airflow is critical, the LogiLink SlimLine Cat.6A patch cable proves its worth. Its ultra-slim 3.8 mm outer diameter and flexible LSZH jacket allow for neat, high-density patching without sacrificing performance. This 3-meter blue cable delivers reliable 10 Gigabit Ethernet connectivity for demanding network environments.

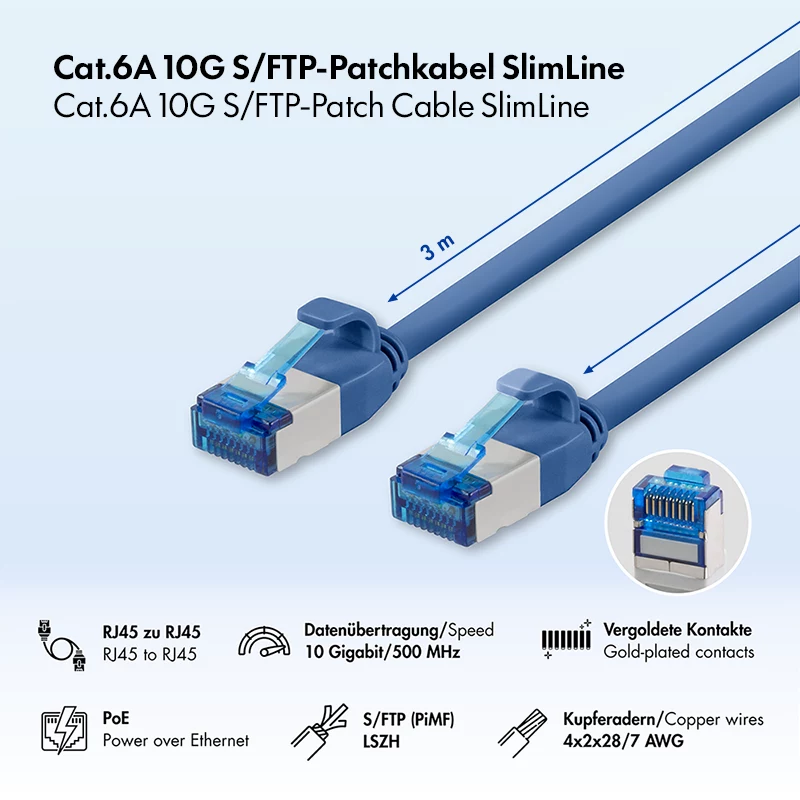

Key specifications

• Cable type: Cat.6A S/FTP (PiMF), shielded patch cable
• Length: 3 meters
• Colour: Blue
• Connectors: RJ45 male to RJ45 male, gold-plated contacts (50µ")
• Conductor: Stranded copper, AWG 30/7
• Bandwidth: 500 MHz
• Data rate: 10 Gbps (10GBASE-T)
• Jacket: LSZH (Low Smoke Zero Halogen), halogen-free and flame retardant

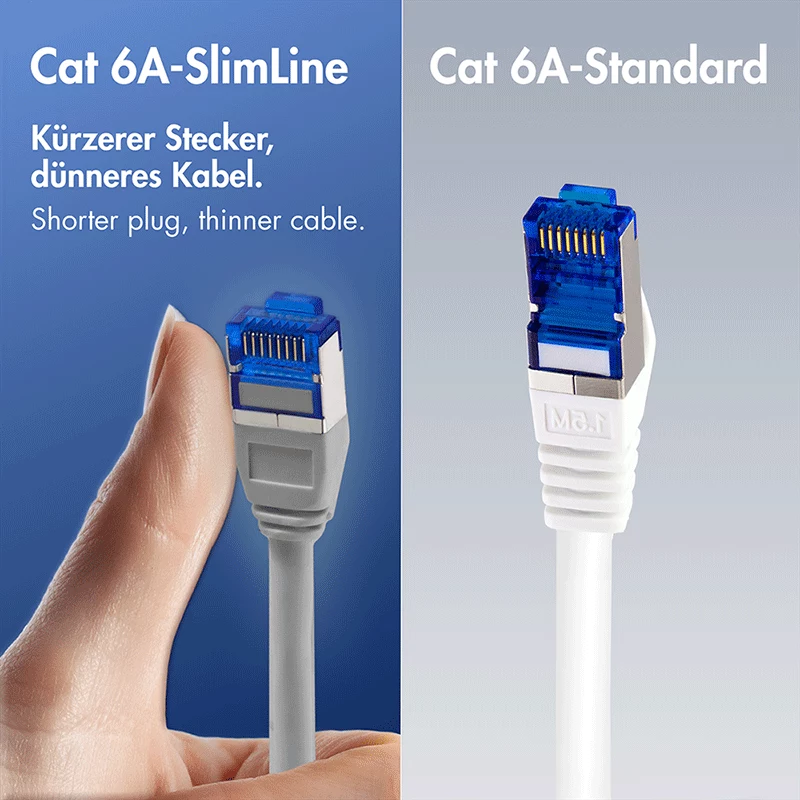

• Outer diameter: 3.8 mm (SlimLine)
• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, PoE++
• Operating temperature: -20°C to +60°C

Why choose it

The SlimLine design reduces cable bulk by up to 40% compared to standard Cat.6A cables, improving airflow and making cable management easier in high-density installations. The S/FTP shielding with individually foiled pairs (PiMF) provides excellent protection against alien crosstalk and EMI, ensuring stable 10G performance. The LSZH jacket emits low smoke and no toxic halogens in case of fire, making it suitable for public buildings and enclosed spaces. Gold-plated contacts resist corrosion and maintain reliable connectivity over time.

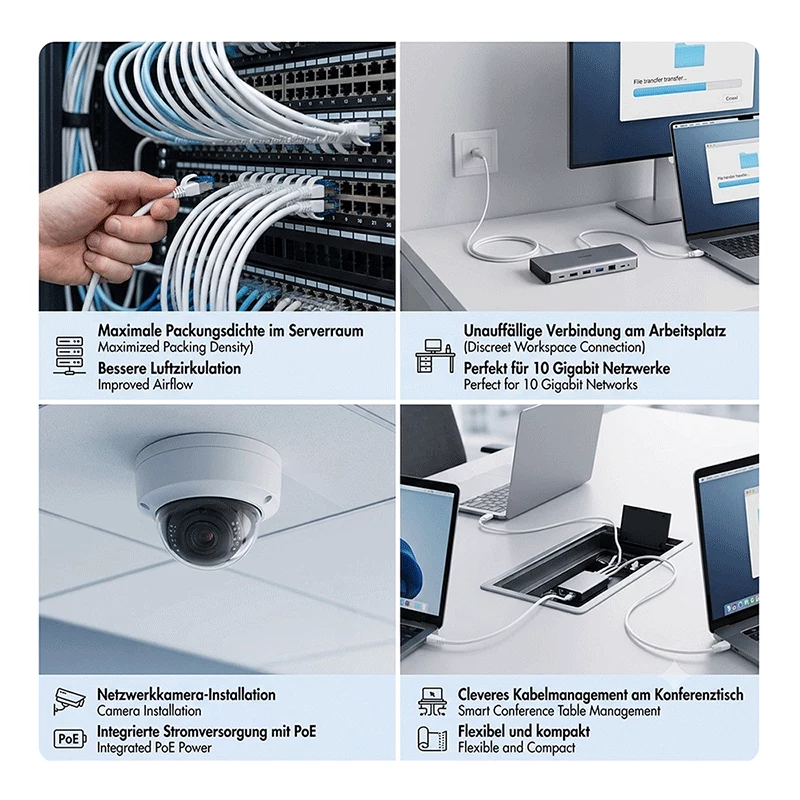

Ideal use cases

• Data centers and server rooms with high port density
• Connecting servers, switches, and patch panels in 10G networks
• Office environments where LSZH materials are required
• PoE applications such as IP cameras, VoIP phones, and wireless access points
• Structured cabling in commercial buildings

Good to know

This cable is backward compatible with Cat.6, Cat.5e, and lower categories. The stranded conductors provide flexibility for frequent bending and re-routing. The slim profile allows for more cables per cable manager and reduces congestion in racks. The blue colour aids in network identification and organization.
