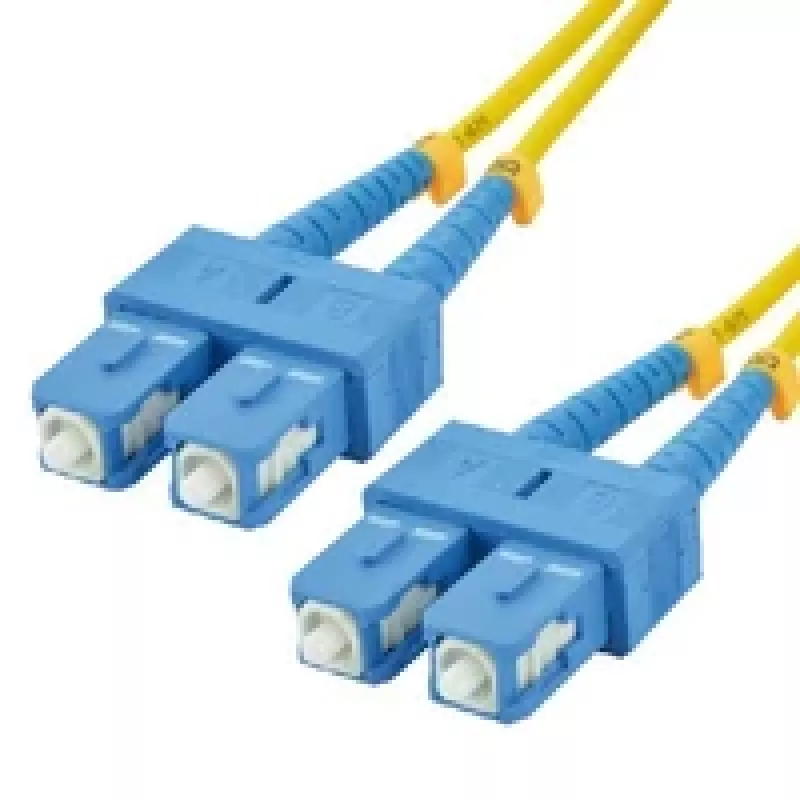

MCL Samar FJOS2/SCSC-1M Cavo patch in fibra ottica OS2 singlemode simplex SC/SC 1 m giallo

The MCL Samar FJOS2/SCSC-1M is a high-quality single-mode fibre optic patch cable designed for reliable data transmission in telecommunications, data centres, LAN, and FTTx networks. With a length of 1 meter and OS2 standard, this simplex cable features SC to SC connectors and a yellow LSZH jacket, ensuring low smoke and halogen-free operation for safety-conscious environments.

Advantages

This patch cable offers low insertion loss (<0.3 dB) and high return loss (>50 dB), ensuring excellent signal integrity. The LSZH jacket reduces toxic emissions in case of fire, making it ideal for indoor installations. Zirconia ceramic ferrules provide durability and precise alignment.

Suitable for

• Data centres
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx deployments

Key specifications

• Fibre mode: Single-mode
• Fibre standard: OS2
• Connector type: SC to SC
• Cable length: 1 m
• Core/cladding diameter: 9/125 µm
• Cable construction: Simplex
• Jacket colour: Yellow
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Ferrule material: Zirconia ceramic
• Insertion loss (typical): <0.3 dB
• Return loss (typical): >50 dB
• Operating wavelengths: 1310 nm, 1550 nm
• Attenuation at 1310nm: <0.35 dB/km
• Attenuation at 1550nm: <0.25 dB/km
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC ports and is suitable for both patch panels and direct connections.
