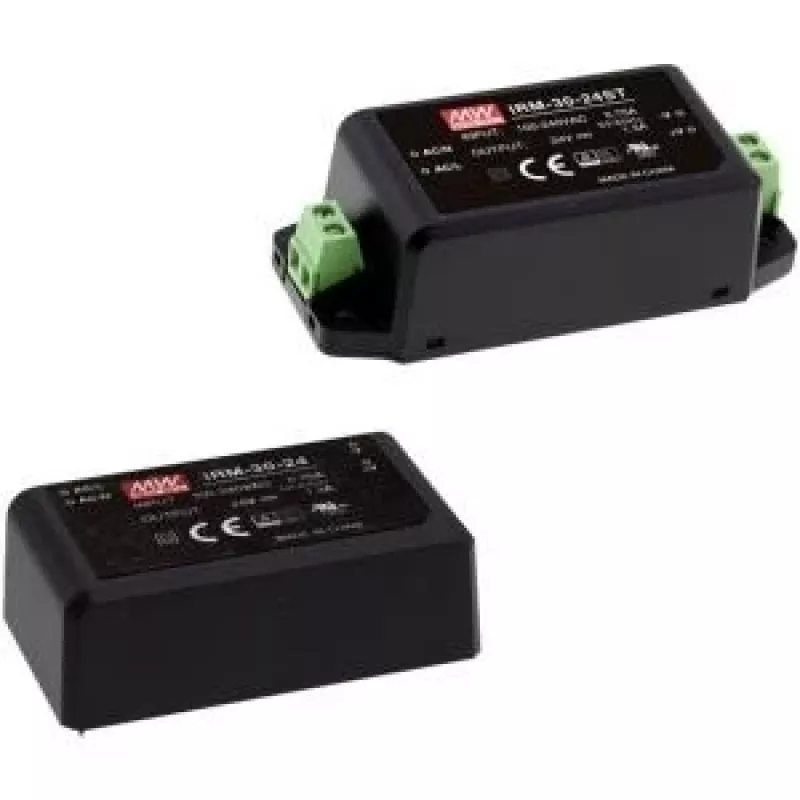

MEAN WELL IRM-30-24 - Modulo alimentatore AC/DC incapsulato 31,2W 24V 1,3A per montaggio PCB, ingresso 85-264VAC, efficienza 88,5%

Compact and reliable, the MEAN WELL IRM-30-24 is a fully encapsulated 30W AC/DC power module that delivers a regulated 24V DC output with 1.3A current capability. Unlike open-frame supplies, its potted construction protects against dust, moisture, and vibration, making it ideal for industrial controls, IoT devices, and space-constrained builds. The universal 85-264VAC input and wide frequency range (47-440Hz) ensure global compatibility without switches or adjustments.

Highlights

• 31.2W output power with 24V DC at up to 1.3A
• Universal AC input: 85-264VAC, 47-440Hz
• High efficiency up to 88.5% and low no-load consumption (<0.1W)
• Fully encapsulated PCB mount module with free air convection cooling
• Protections: short circuit, overload, over voltage
• Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004
• Wide operating temperature range: -30°C to +70°C
• 3000VAC isolation between input and output

In daily use

Installation is straightforward: solder the module directly onto your PCB or use a suitable socket. The IRM-30-24 operates silently with no fan, relying on convection cooling. Its hold-up time of 40ms at full load ensures stable output during brief input interruptions. The low standby power makes it suitable for energy-conscious applications, while the robust encapsulation extends service life in harsh environments.

Full specifications

• Output power: 31.2W
• Output voltage: 24V DC
• Output current: 1.3A
• Input voltage: 85-264VAC
• Input frequency: 47-440Hz
• Input current: 0.75A at 115VAC, 0.5A at 230VAC
• Efficiency: 88.5%
• Hold-up time: 40ms (230VAC full load)
• No-load power consumption: <0.1W
• Isolation voltage: 3000VAC
• Operating temperature: -30°C to +70°C
• Protection: short circuit, overload, over voltage
• Safety standards: UL62368-1, TUV EN62368-1, EAC TP TC 004
• Mounting: PCB mount
• Cooling: free air convection

Final note

For engineers and integrators seeking a dependable, globally certified power solution in a minimal footprint, the IRM-30-24 delivers consistent performance with minimal design effort.
