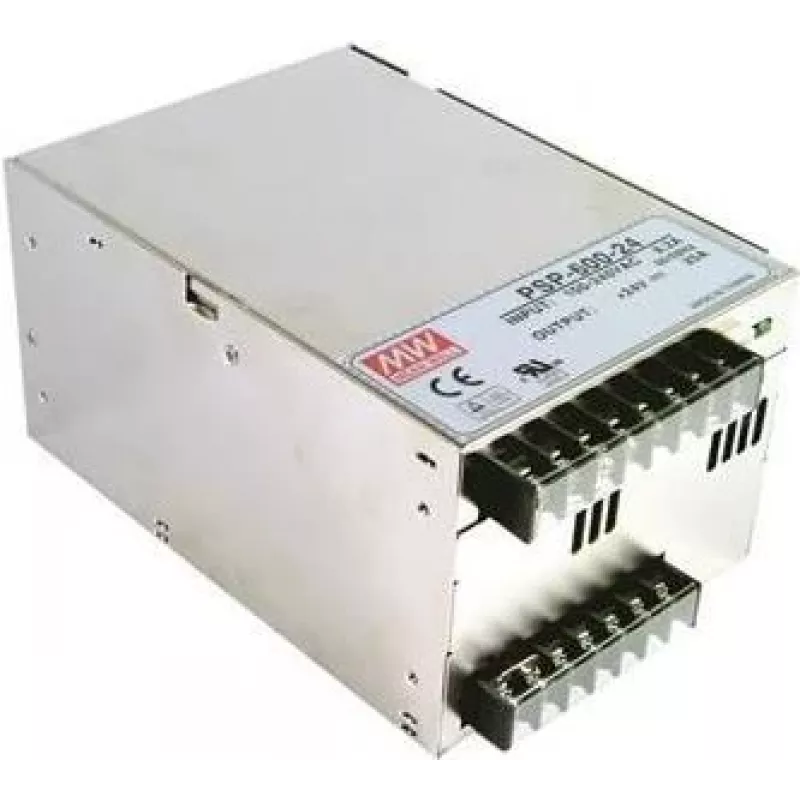

MEAN WELL PSP-600-24 alimentatore chiuso 600W 24V 25A con PFC

The MEAN WELL PSP-600-24 is a high-performance enclosed AC/DC power supply delivering a robust 600W output at 24V DC with a current rating of 25A. Its active power factor correction and wide input voltage range make it ideal for industrial automation, control systems, and demanding electronic applications.

Advantages

Built with a durable metal enclosure and a built-in DC fan with ON/OFF control, the PSP-600-24 ensures reliable cooling and quiet operation under varying loads. Active PFC improves energy efficiency and reduces harmonic distortion, while comprehensive protections—including short circuit, overload, over voltage, and over temperature—safeguard both the power supply and connected equipment. The unit supports remote sense and parallel operation (up to 3 units), offering flexibility for system expansion and voltage drop compensation.

Suitable for

• Industrial automation and control systems
• Test and measurement equipment
• LED lighting and signage
• Telecommunications infrastructure
• General electronic projects requiring stable 24V DC power

Key specifications

• Output: 24 VDC, 25 A, 600 W
• Input: 90–264 VAC (127–370 VDC), 47–63 Hz
• Efficiency: up to 88.5%
• Active PFC, remote sense, parallel capability (up to 3 units)
• Protections: short circuit, overload, over voltage, over temperature
• Cooling: built-in DC fan with ON/OFF control
• Operating temperature: -20 to +70 °C
• Safety: UL60950-1, TUV EN60950-1, CB, CE
• Isolation: 3 kVAC (input to output)
• MTBF: >100,000 hours

Recommendations

For reliable 24V power in industrial environments, the PSP-600-24 offers proven performance, robust protection, and flexible integration. Its compact size and high power density make it an excellent choice for space-constrained applications.
