METZ CONNECT 11051025 modulo relè di potenza 24 V DC, 1 CO, 16 A, guida DIN, nero/arancione

With a robust 16 A switching capacity and 4000 VA maximum switching power, this METZ CONNECT power relay module delivers dependable control for demanding applications. The 24 V DC coil and single changeover contact (1 CO / SPDT) make it a versatile choice for automation and building technology.

Overview

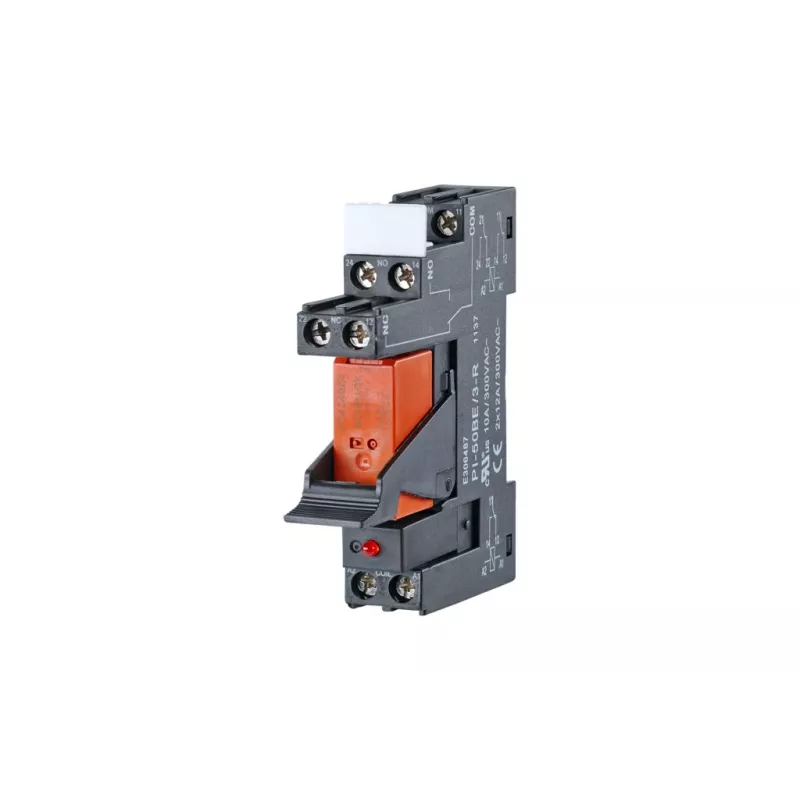

The METZ CONNECT 11051025 is a power relay module designed for DIN rail mounting (TS35). It features screw terminals for secure wiring, a green LED status indicator, and a freewheeling diode for coil transient suppression. The contact material is silver nickel (AgNi), ensuring long electrical life under load.

What stands out

• High switching capacity: 16 A / 250 V AC, up to 4000 VA
• Compact DIN rail housing in black/orange polyamide
• Integrated freewheeling diode protects control circuits
• Clear green LED for operational status
• Wide operating temperature range: -25 °C to +70 °C

Technical details

• Coil voltage: 24 V DC
• Contact configuration: 1 changeover (SPDT)
• Rated contact current: 16 A
• Max. switching voltage: 250 V AC
• Max. switching capacity: 4000 VA
• Contact material: AgNi

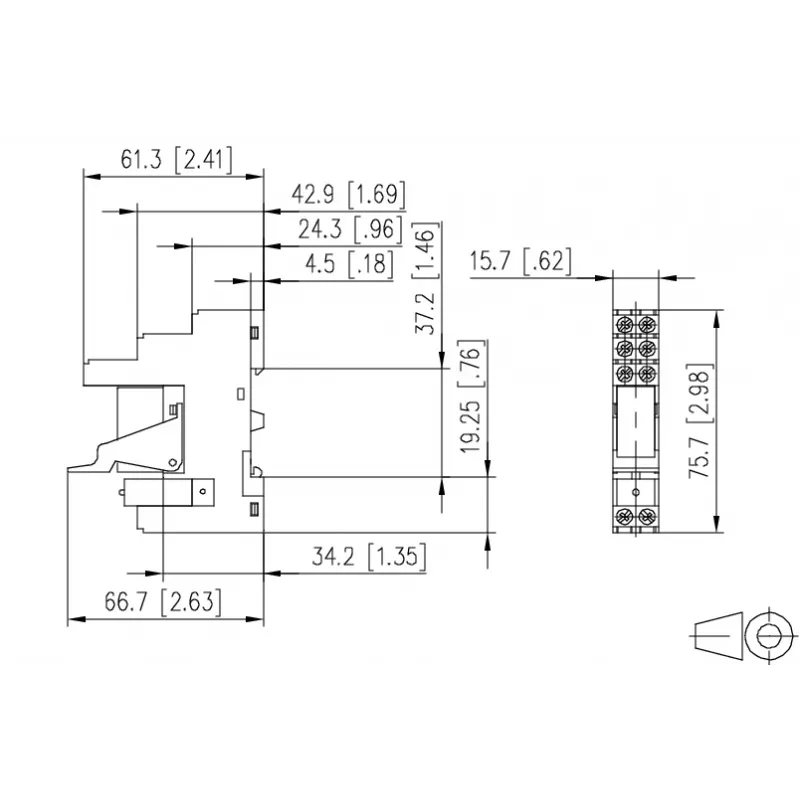

• Mounting: DIN rail TS35

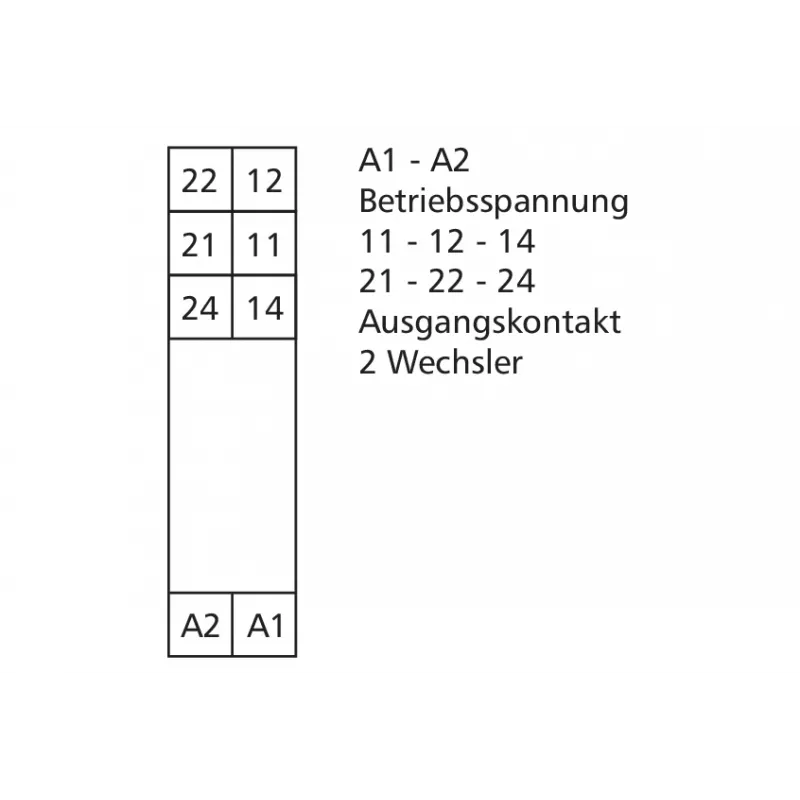

• Connection: screw terminals
• Insulation voltage coil/contact: 4 kV AC
• Operating temperature: -25 °C to +70 °C
• Housing material: polyamide (PA)
• Color: black/orange

Our verdict

A reliable, industrial-grade relay module with clear status indication and built-in coil protection—ideal for control panels and building automation.
