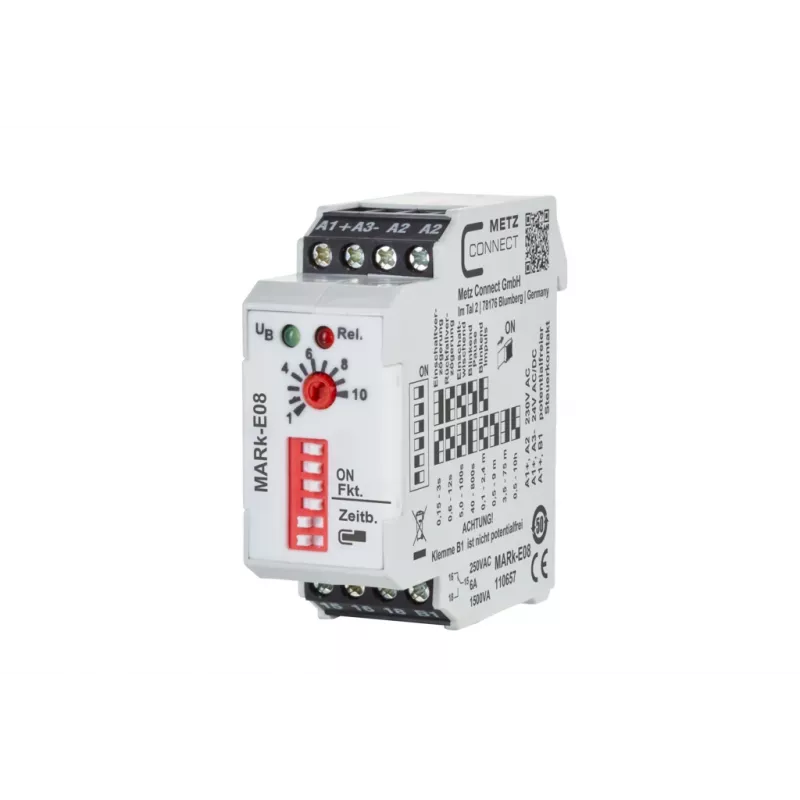

METZ CONNECT 110657 relè di potenza bianco 24V AC/DC 2 CO 16A guida DIN

With a robust 16 A switching capacity and a compact 1 TE (17.5 mm) DIN rail footprint, the METZ CONNECT 110657 power relay delivers dependable control for demanding electrical loads. Its 2 changeover contacts handle up to 4000 VA, making it ideal for industrial and building automation.

Overview

The METZ CONNECT 110657 is a versatile power relay engineered for 24 V AC/DC coil operation. It features two changeover contacts, each rated for 16 A at 250 V AC, and is designed for easy DIN rail mounting. The white housing with IP40 protection ensures durability in control cabinets, while screw terminals provide secure wiring.

What stands out

• High switching capacity: 4000 VA (AC1) and 1000 VA (AC3)
• LED status indicator for quick operational checks
• Compact modular design: only 1 TE (17.5 mm) wide
• Long mechanical life: 10 million operations
• Wide operating temperature range: -25 to +55 °C

Technical details

• Coil voltage: 24 V AC/DC
• Contact configuration: 2 CO (changeover)
• Rated contact current: 16 A
• Rated contact voltage: 250 V AC
• Number of poles: 2-pole
• Mounting type: DIN rail
• Switching capacity (AC1): 4000 VA
• Switching capacity (AC3): 1000 VA
• Operating temperature range: -25 to +55 °C
• Protection class (housing): IP40
• Protection class (terminals): IP20

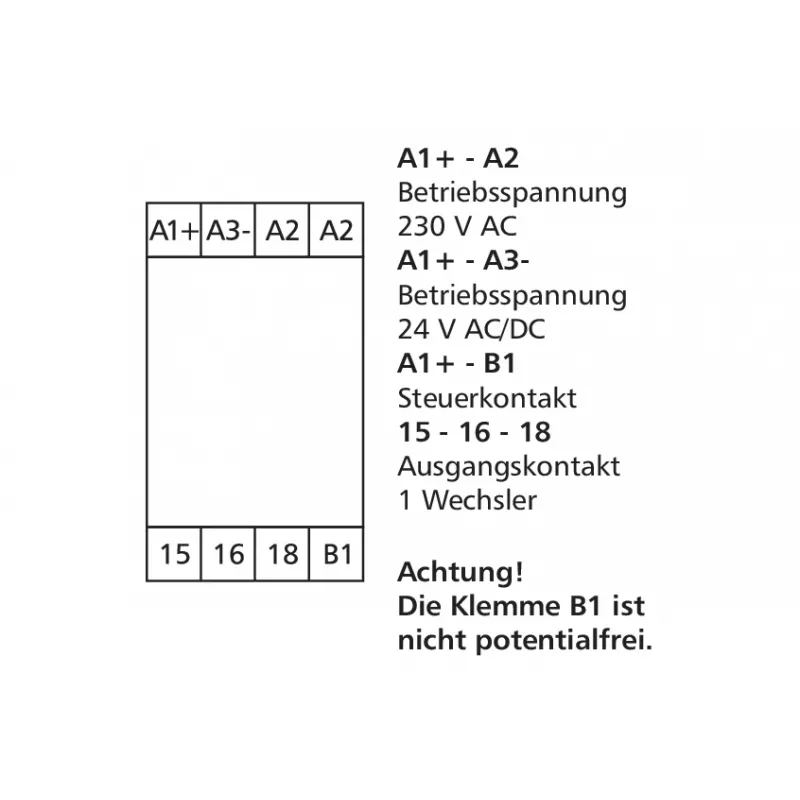

• Terminal type: Screw terminals
• Status indicator: LED
• Coil power consumption (AC): 2.5 VA
• Coil power consumption (DC): 1.5 W
• Electrical life: 100,000 operations (at rated load)
• Mechanical life: 10,000,000 operations
• Housing color: White
• Module width: 1 TE (17.5 mm)

Our verdict

A reliable and space-saving power relay that combines high switching performance with easy installation and clear status indication—perfect for automation projects requiring dependable 24 V control.
