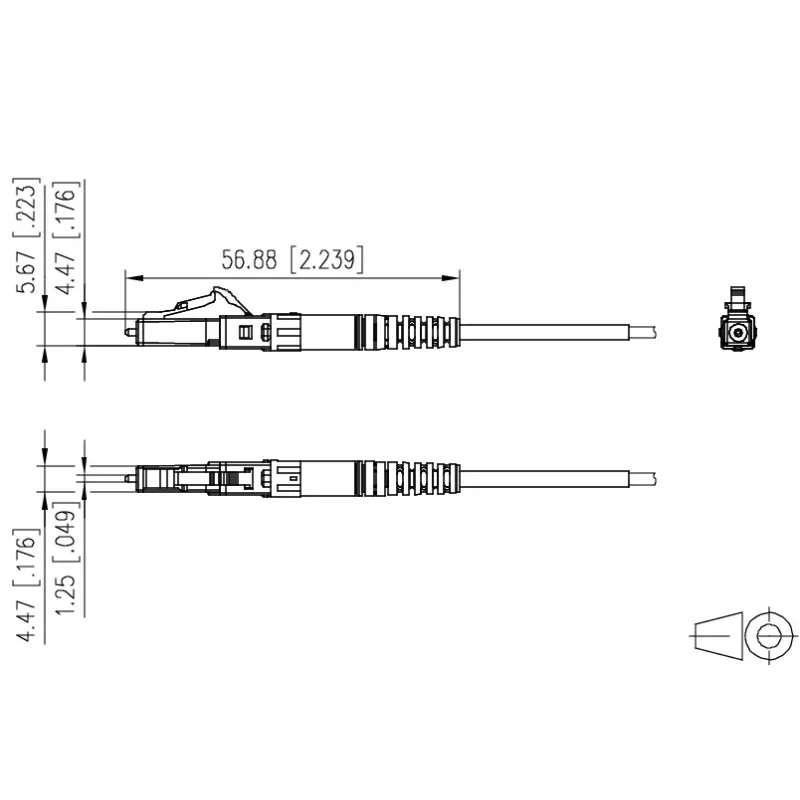

METZ CONNECT 1509QKJA002C-E LC duplex OS2 cavo patch single-mode verde confezione da 20

The METZ CONNECT 1509QKJA002C-E is a high-quality LC duplex patch cable designed for single-mode OS2 fiber networks. With green connectors and a 20-piece pack, this cable ensures reliable and efficient data transmission for demanding applications.

Advantages

Precision-engineered with zirconia ceramic ferrule and UPC polish for low insertion loss and high return loss. Durable plastic housing ensures long-lasting performance. Suitable for data centers, telecommunications, LAN, and FTTx environments.

Suitable for

• Data centers
• Telecommunications networks
• Local area networks (LAN)
• FTTx installations

Key specifications

• Connector type: LC-Duplex
• Fiber mode: Single-mode
• Fiber type: OS2
• Connector color: Green
• Quantity per pack: 20 pieces
• Ferrule material: Zirconia ceramic
• Polishing type: UPC
• Insertion loss (typical): < 0.2 dB
• Return loss (typical): > 50 dB
• Mating cycles: > 500
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
• Housing material: Plastic
• Compliance: IEC 61754-20, TIA/EIA-604-10 (FOCIS 10)

Recommendations

For optimal performance, ensure proper handling and storage. Compatible with standard LC adapters and equipment.
