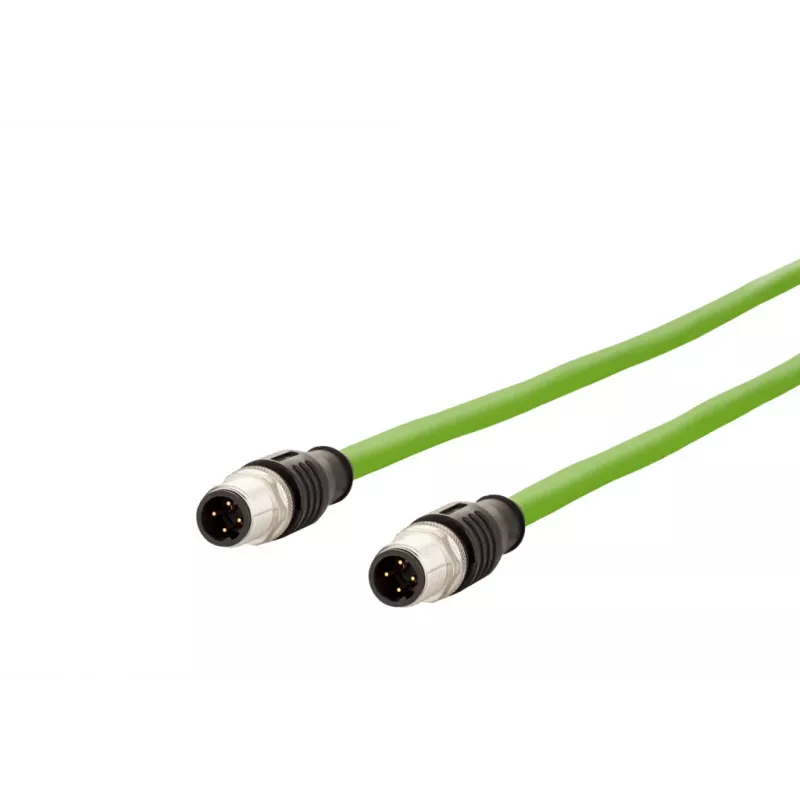

METZ CONNECT cavo patch Ethernet industriale M12 codifica D, 4 poli connettore maschio su connettore maschio, 5m, PUR verde

When automation environments punish ordinary patch cables with oil, vibration, and constant flexing, this METZ CONNECT M12 cable keeps its grip. The D-coded 4-pin connectors lock into place with a threaded collar, so the link stays stable even when machinery is shaking. A tough PUR jacket shrugs off abrasion and most industrial chemicals, while the green RAL 6018 colour makes it easy to spot in a crowded cabinet. This is not a generic office patch lead; it is built for the factory floor.

Highlights

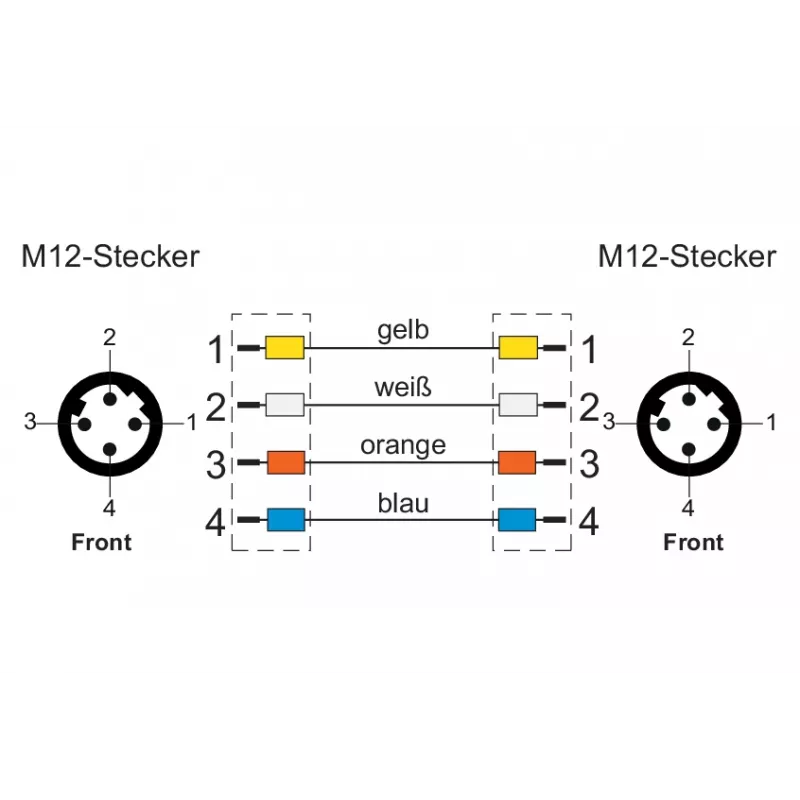

• M12 D-coded connectors on both ends, 4-pin male to 4-pin male, per IEC 61076-2-101
• Overall braid shield rejects electromagnetic interference from motors and drives
• PUR (polyurethane) outer jacket rated for harsh industrial use, green RAL 6018
• IP67 protection when mated, so dust and temporary immersion won't break the link
• Supports 10/100 Mbit/s Fast Ethernet over stranded copper conductors (AWG 26/7)
• 5-metre length suits machine-to-switch or sensor-to-I/O connections

In daily use

Route this cable through cable chains or along moving gantries without worrying about jacket cracking. The 4.7 mm outer diameter stays flexible even at -30 °C, and the braided shield keeps data clean up to 80 °C. Because both ends are identical D-coded males, you can use it to extend an existing M12 trunk or connect directly between two M12 D-coded female ports. The threaded coupling prevents accidental disconnection, a common failure point in high-vibration areas.

Full specifications

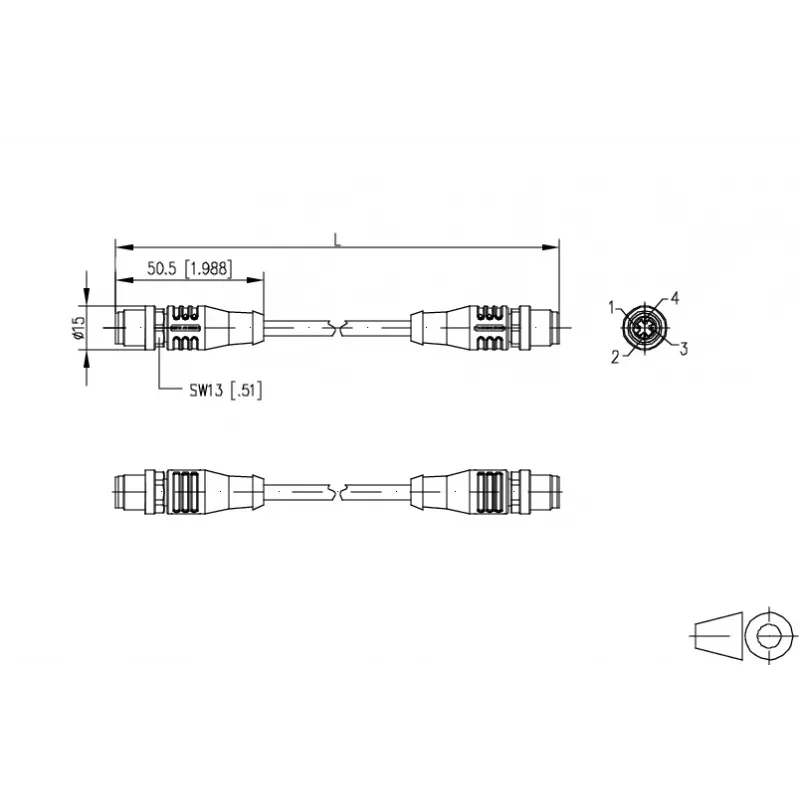

• Connector 1: M12 D-coded, male, 4-pin
• Connector 2: M12 D-coded, male, 4-pin
• Cable length: 5 m
• Jacket material: PUR (polyurethane)
• Colour: Green (RAL 6018)

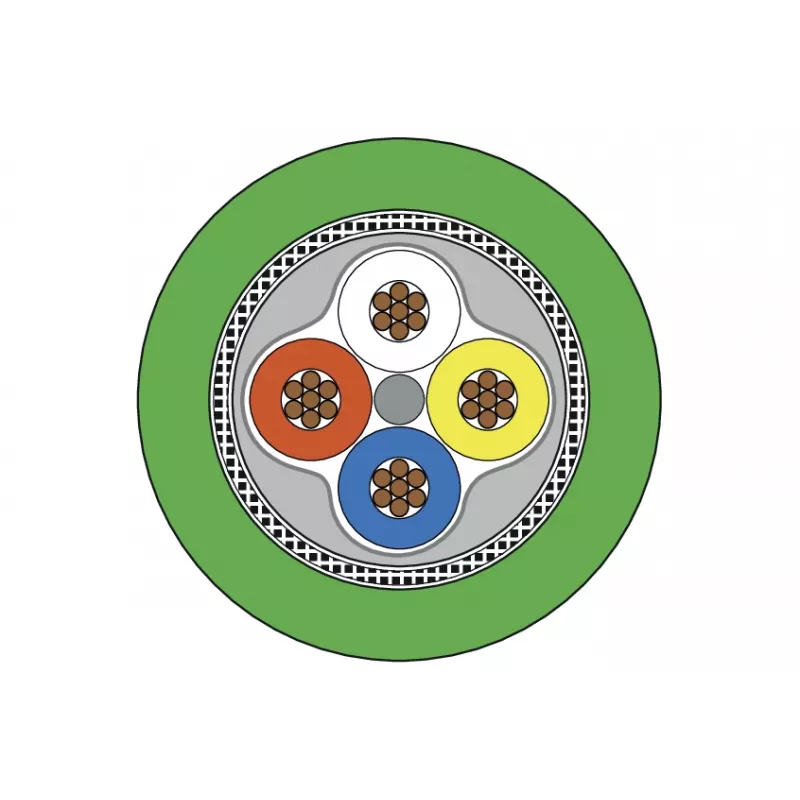

• Shielding: Overall braid shield
• Data transfer rate: 10/100 Mbit/s (Fast Ethernet)
• Conductor: Stranded copper, AWG 26/7
• Outer diameter: 4.7 mm
• IP rating (mated): IP67
• Operating temperature: -30 °C to +80 °C
• Standards: IEC 61076-2-101, UL Listed

Final note

For reliable data transmission in demanding industrial settings, this METZ CONNECT cable delivers the durability and secure locking you need.
