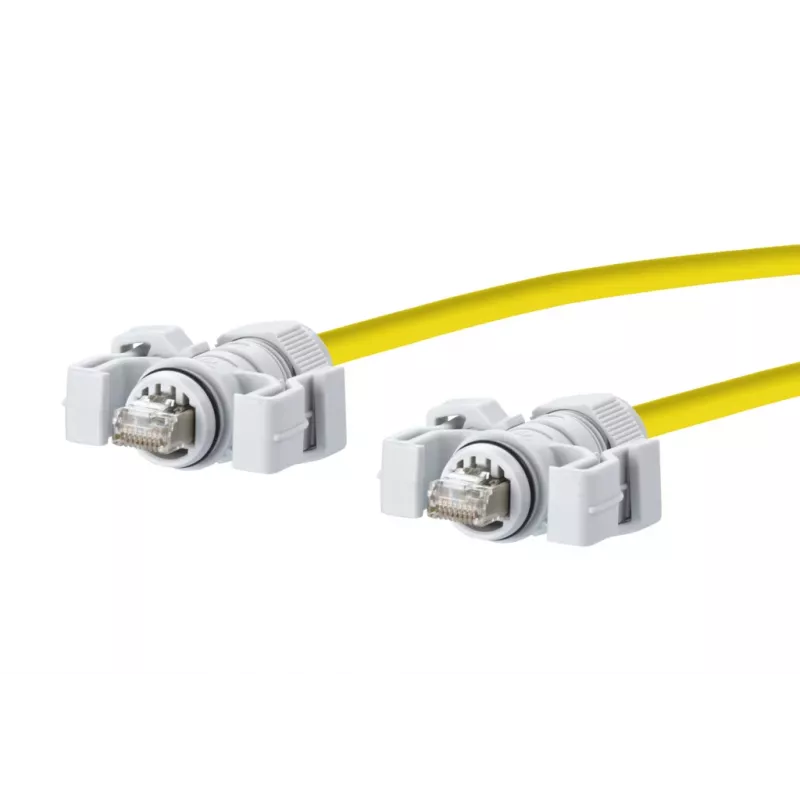

METZ CONNECT E-DAT Industry Cavo patch V6 IP67 Cat6 SF/UTP 15 m giallo

The METZ CONNECT E-DAT Industry Patch Cable V6 IP67 is a high-performance network cable designed for demanding industrial environments. With a length of 15 meters and Cat6 SF/UTP shielding, it ensures reliable data transmission up to 10 Gbit/s. The robust IP67-rated connectors provide protection against dust and water, making it ideal for harsh conditions.

Advantages

This patch cable offers exceptional durability and performance. The SF/UTP shielding minimizes electromagnetic interference, while the gold-plated RJ45 connectors ensure optimal signal integrity. The IP67 rating guarantees protection against dust and temporary immersion in water, making it suitable for outdoor and industrial use.

Suitable for

• Industrial Ethernet networks
• Outdoor installations
• Harsh environments requiring IP67 protection
• High-speed data transmission up to 10 Gbit/s

Key specifications

• Cable Type: Network Cable
• Cable Category: Cat6
• Shielding Type: SF/UTP (S/FTP)
• Cable Length: 15 m
• Cable Color: Yellow
• Connector Type: RJ45 Male to RJ45 Male
• Conductor Material: Copper
• Conductor Gauge: 26 AWG
• Jacket Material: PVC
• Data Transfer Rate: Up to 10 Gbit/s
• Bandwidth: 250 MHz
• Connector Plating: Gold-plated
• Cable Construction: Stranded

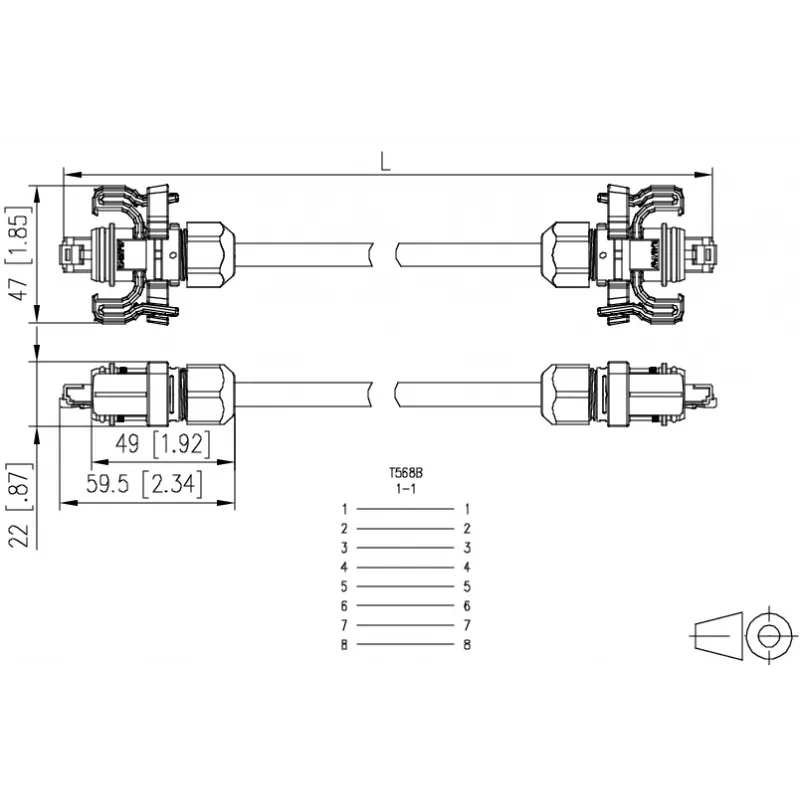

• Wiring Standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance in industrial networks, pair this cable with compatible IP67-rated connectors and switches. Ensure proper cable management to maintain signal integrity.
