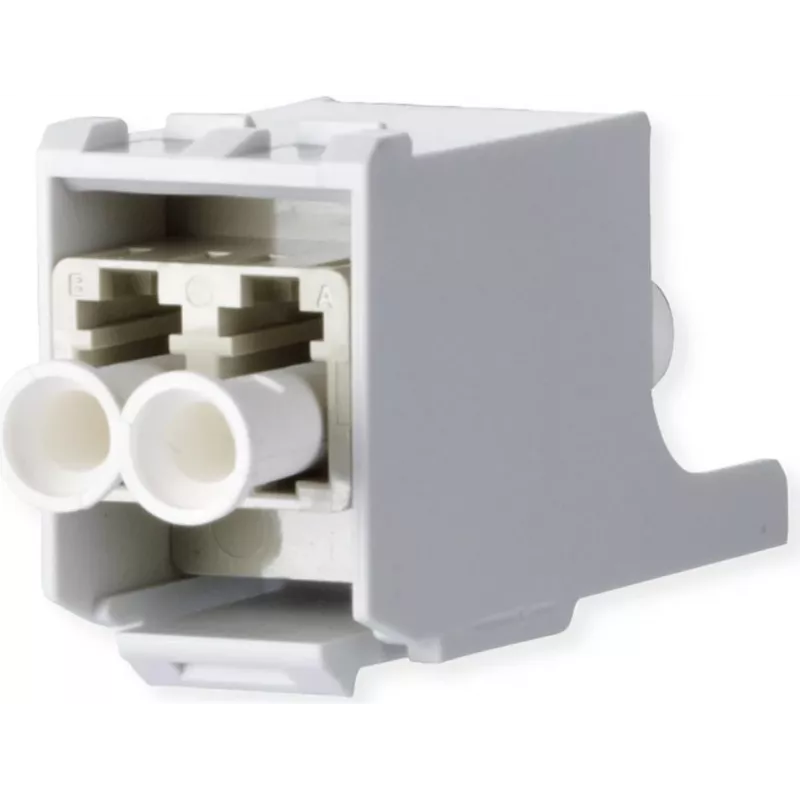

METZ CONNECT modulo LC duplex multimodale OpDAT, ferula in ceramica, beige

The METZ CONNECT OpDAT LC Duplex Multimode Module (model 1509107B-I) is a high-quality fiber optic module designed for use in patch panels and distribution boxes. Featuring a ceramic ferrule and beige connector color, this module ensures reliable performance for multimode applications.

Advantages

This module offers low insertion loss (<0.5 dB typical) and high return loss (>20 dB typical), ensuring excellent signal integrity. The durable PBT housing and ceramic ferrule provide over 500 mating cycles, making it a long-lasting solution for network infrastructure.

Suitable for

• Fiber optic patch panels
• Distribution boxes
• Data center cabling
• Telecommunications networks

Key specifications

• Connector Type: LC Duplex
• Fiber Type: Multimode (OM2)
• Ferrule Material: Ceramic
• Connector Color: Beige
• Number of Ports: 1 (LC Duplex)
• Number of Fibers: 2
• Housing Material: PBT
• Insertion Loss: <0.5 dB typical
• Return Loss: >20 dB typical
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61754-20, TIA/EIA-604-10

Recommendations

For optimal performance, pair this module with compatible LC duplex patch cables and ensure proper cleaning of connectors before installation.
