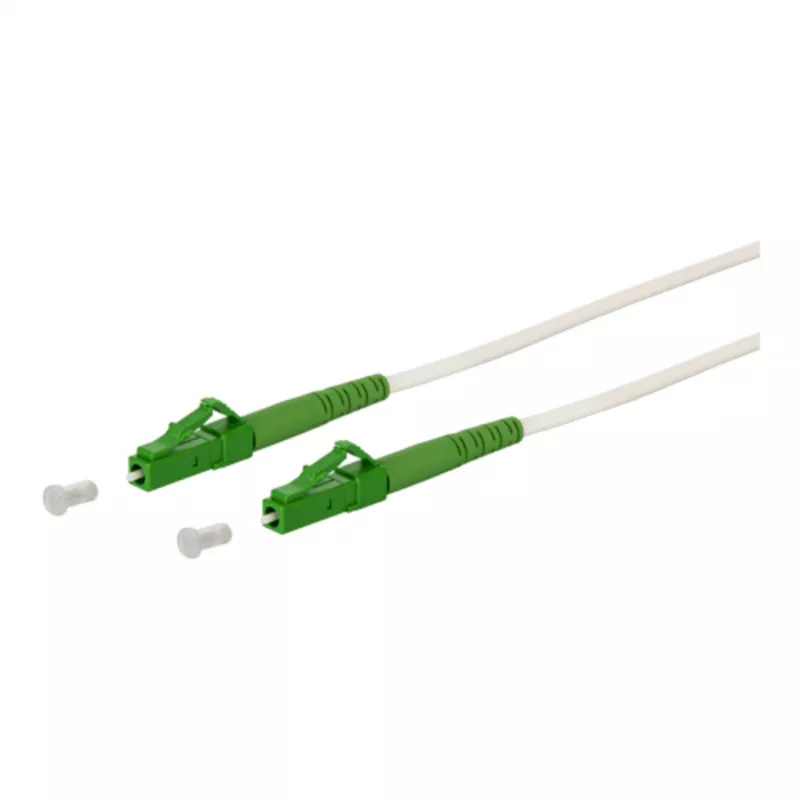

METZ CONNECT OpDAT cavo patch in fibra ottica LC APC a LC APC monomodale OS2 3 m bianco

The METZ CONNECT OpDAT fiber optic patch cable is a high-performance single-mode (OS2) patch cable designed for reliable data transmission in FTTH, LAN, and data center environments. With LC APC connectors on both ends, a 3-meter length, and a white LSZH jacket, this cable ensures low insertion loss and high return loss for critical network applications.

Advantages

This patch cable offers exceptional signal integrity with insertion loss ≤ 0.3 dB and return loss ≥ 60 dB, thanks to the APC polish. The LSZH jacket provides safety in enclosed spaces by emitting low smoke and no halogen in case of fire. The 2.8 mm diameter cable is flexible yet durable, suitable for patch panel connections and direct equipment linking.

Suitable for

• Fiber-to-the-home (FTTH) installations
• Local area networks (LAN) requiring single-mode fiber
• Data center interconnects
• Telecommunications and CATV networks

Key specifications

• Connector Type: LC APC to LC APC
• Fiber Type: Single-Mode (OS2) 9/125 µm
• Cable Length: 3 meters
• Color: White
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for backbone and horizontal cabling in structured cabling systems. Pair with METZ CONNECT patch panels and outlets for a complete solution.
