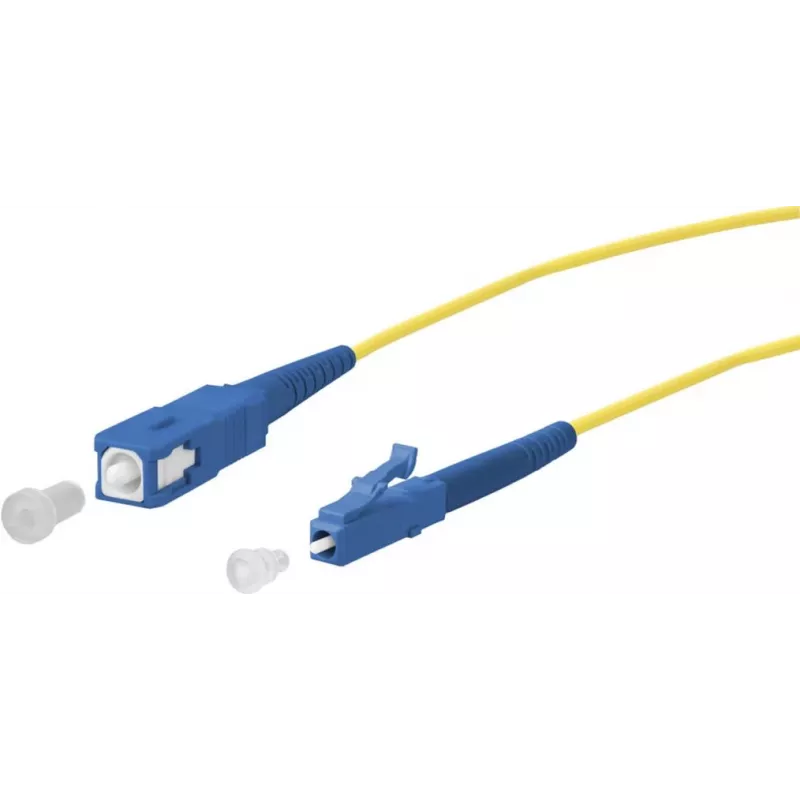

METZ CONNECT OpDAT cavo patch SC-S/LC-S OS2 3,0 m

The METZ CONNECT OpDAT patch cable is a high-performance fiber optic patch cord designed for reliable single-mode transmission in data centers, telecommunications, and enterprise networks. With SC to LC connectors, OS2 fiber class, and a duplex configuration, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (≥50 dB) ensure excellent signal quality. The LSZH jacket provides safety in enclosed spaces, and the 3.0 mm diameter cable offers flexibility while maintaining durability. Compliant with RoHS and REACH standards.

Suitable for

• Fiber optic network connections between patch panels, switches, and transceivers
• Single-mode applications requiring OS2 performance
• Data centers, telecom rooms, and enterprise cabling

Key specifications

• Connector A: SC/UPC
• Connector B: LC/UPC
• Fiber mode: Single-mode OS2
• Cable length: 3.0 m
• Jacket material: LSZH, yellow
• Insertion loss: ≤0.3 dB per connector
• Return loss: ≥50 dB per connector
• Operating temperature: -10°C to +60°C

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for high-speed data transmission up to 10 Gbps and beyond.
