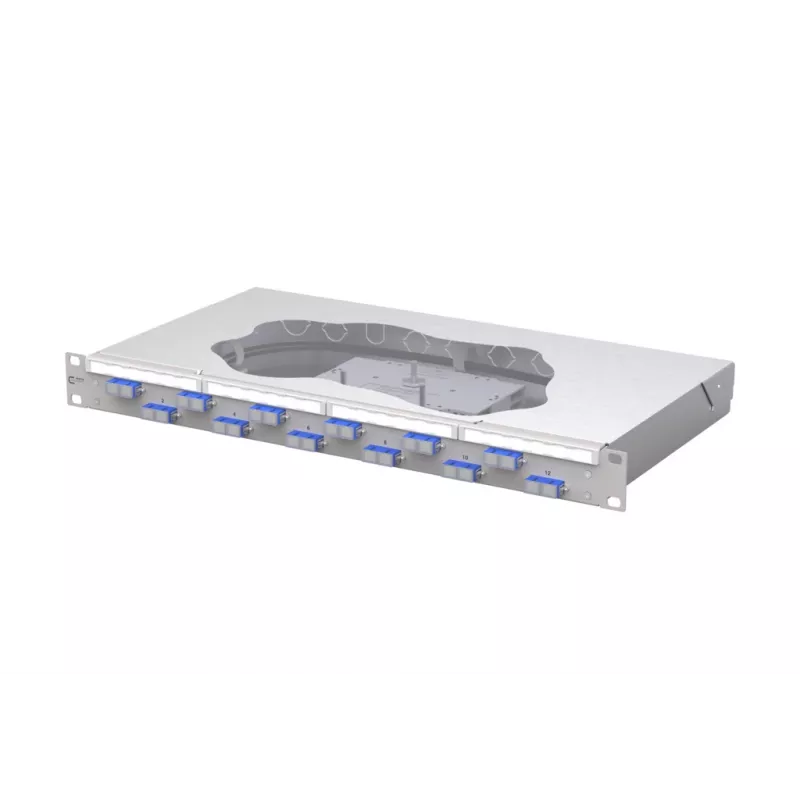

METZ CONNECT OpDAT fix patch panel di giunzione in fibra ottica, 12x SC-Duplex OS2, 1U, grigio chiaro 150459E212-F

Fiber optic splice patch panel for 19-inch rack mounting, providing 12 SC-Duplex ports for 24 fibers in a 1U form factor. The panel integrates a splice tray for heat shrink splice protectors and comes with 2-meter pigtails of bend-insensitive G.657.A1 fiber, enabling reliable termination of OS2 singlemode cables.

Advantages

Compact 1U design saves rack space while offering high port density. Pre-installed pigtails and integrated splice tray simplify installation. Powder-coated steel housing ensures durability in demanding environments.

Suitable for

• Data centers and server rooms requiring high-density fiber termination
• Enterprise networks deploying OS2 singlemode backbone cabling
• Telecommunications distribution frames

Key specifications

• Connector type: 12x SC-Duplex (24 fibers)
• Fiber type: Singlemode OS2 (E9/125 µm)
• Pigtail length: 2.0 m, G.657.A1 bend-insensitive

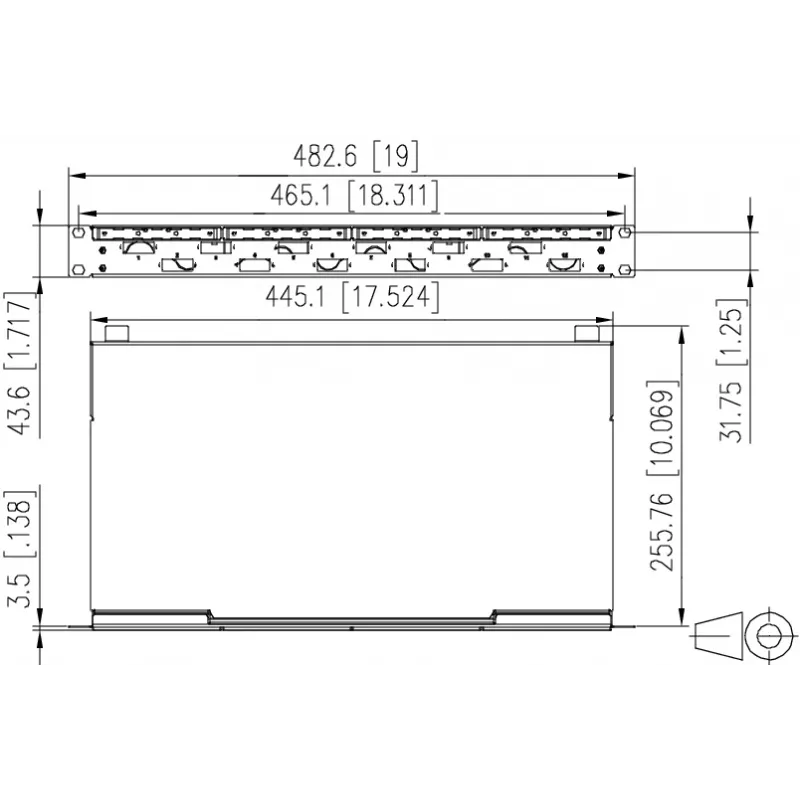

• Mounting: 19-inch rack, 1U height
• Housing: Steel sheet, powder-coated, light grey (RAL 7035)
• Cable entry: 2x PG16 cable glands, 2x blind plugs
• Operating temperature: -20 °C to +70 °C

Recommendations

For reliable fiber management, use with fusion splicer and heat shrink splice protectors. Ensure proper strain relief at cable entry points.
