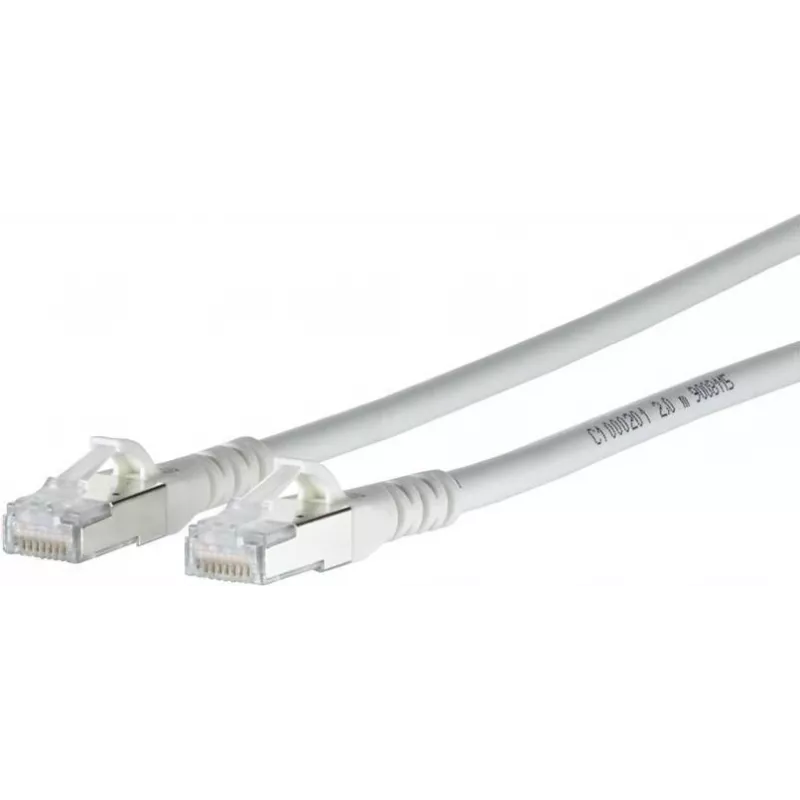

METZ CONNECT Patchcord C6 A262RJ45 7.5WH 1308457588-E - cavo patch Ethernet - Cat.6 - U/UTP - 7,5 m - bianco

The METZ CONNECT Patchcord C6 A262RJ45 7.5WH is a high-performance Ethernet patch cable designed for reliable network connections in professional environments. With Category 6 certification, it supports data transfer rates up to 10 Gigabit Ethernet, making it ideal for demanding applications such as data centers, server rooms, and enterprise networks.

Advantages

This patch cable offers excellent signal integrity and minimal crosstalk thanks to its U/UTP (unshielded twisted pair) design and 26/7 AWG stranded copper conductors. The molded, snagless boot protects the RJ45 connectors and prevents cable snags during installation. It also supports Power over Ethernet (PoE, PoE+, PoE++), allowing both data and power transmission over a single cable.

Suitable for

• Connecting computers, switches, routers, and other network devices
• Structured cabling in offices, data centers, and industrial settings
• High-speed applications requiring up to 10 Gbps
• PoE devices such as IP cameras, wireless access points, and VoIP phones

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: Cat.6
• Shielding: U/UTP
• Length: 7.5 meters
• Colour: White
• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Wiring Standard: TIA/EIA 568B
• Conductor Material: Copper (Cu)
• Conductor Type: Stranded
• AWG: 26/7
• Jacket Material: PVC
• Frequency Range: Up to 250 MHz
• Data Transfer Rate: Up to 10 Gbps
• PoE Support: Yes (PoE, PoE+, PoE++)
• Connector Boot: Molded, Snagless
• Operating Temperature: -20°C to +60°C
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Recommendations

For optimal performance, use this cable with Cat.6 compatible network equipment. Ensure proper cable management to avoid bending beyond the recommended radius. This cable is not halogen-free; if required, consider LSZH alternatives.
