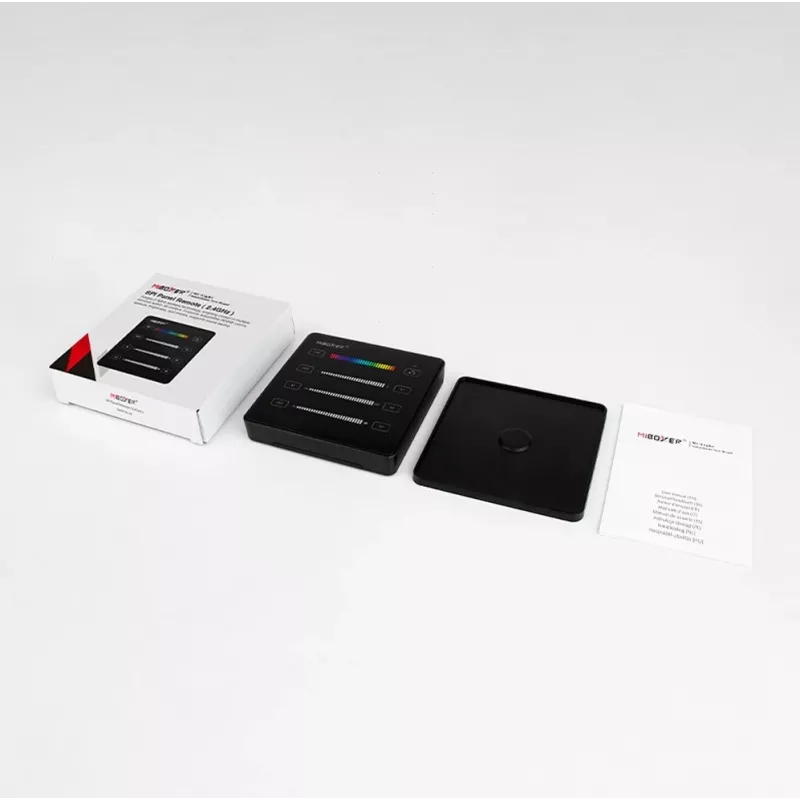

Miboxer Pixel LED Smart Panel Controller RGB/RGBW/RGB+CCT nero (B6) B6 (nero)

Managing addressable LED strips often means juggling multiple remotes or a phone app, and basic controllers can't handle the variety of pixel chips on the market. The Miboxer B6 Pixel LED Smart Panel Controller solves this by putting precise control of RGB, RGBW, and RGB+CCT strips behind a sleek tempered-glass touch panel, with 2.4GHz RF for wireless convenience.

Who is it for

This controller is for installers and advanced DIYers building dynamic lighting scenes with pixel LED strips. It fits standard 86-type wall boxes, making it a clean replacement for traditional switches in residential or commercial spaces.

Main features

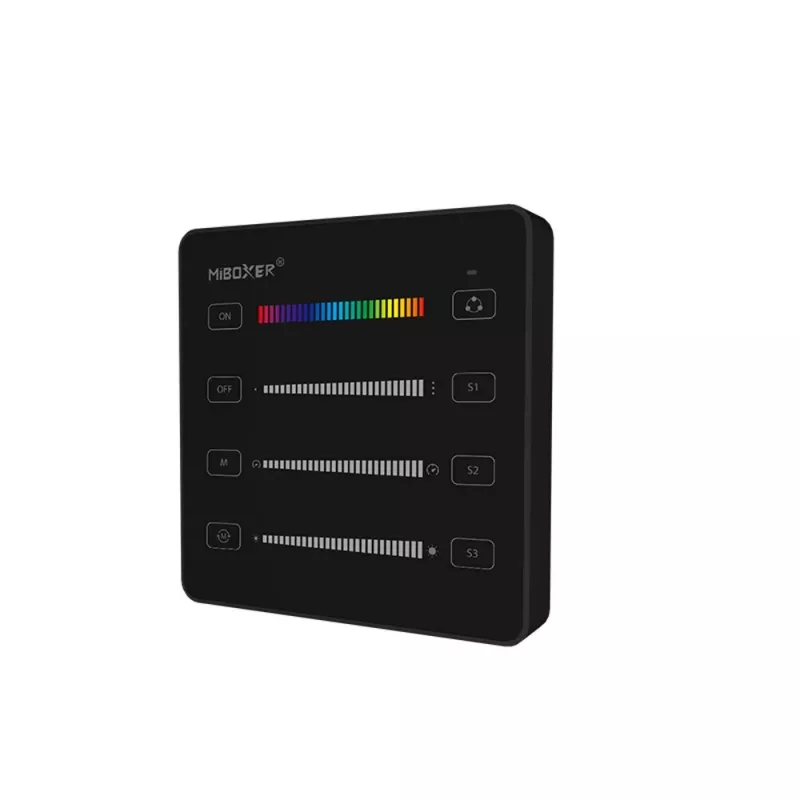

• Capacitive touch panel with high-strength tempered glass, available in black
• Supports RGB, RGBW, and RGB+CCT (dual white) LED strips via SPI signal
• Controls up to 2048 pixels with a wide range of IC chips: WS2811, WS2812, WS2813, WS2815, SK6812, TM1809, UCS1903, LPD6803, LPD8806, APA102, P9813, DMX512 (TTL)
• 2.4GHz RF wireless control up to 30 meters, compatible with MiBoxer/MiLight 2.4GHz remotes and gateways (WL-Box1/WL-Box2) for app and voice control
• Adjust brightness, saturation, color temperature, dynamic modes, and static colors
• Power-off memory recalls last settings
• Input voltage DC 5-24V, standby power consumption under 1W, reverse polarity protection

Specifications

• Product type: Pixel LED Smart Panel Controller
• Control method: Capacitive touch panel, 2.4GHz RF wireless
• Output signal: SPI
• Control zones: 1
• Max control pixels: 2048
• Supported IC chips: WS2811, WS2812, WS2813, WS2815, SK6812, TM1809, UCS1903, LPD6803, LPD8806, APA102, P9813, DMX512 (TTL)
• Wireless frequency: 2.4GHz
• RF control distance: up to 30 meters
• Panel material: high-strength tempered glass
• Installation: wall-mounted, standard 86-type wall box compatible
• Color: black
• Operating temperature: -20°C to 60°C
• Input voltage: DC 5-24V
• Standby power consumption: <1W
• Protection: reverse polarity protection
• Memory function: yes (power-off memory)
• Compatibility: MiBoxer/MiLight 2.4GHz series, WL-Box1/WL-Box2 gateway

Tips

Pair the B6 with a MiBoxer 2.4GHz remote or the WL-Box gateway to unlock app control and voice commands via Amazon Alexa or Google Assistant. Ensure your LED strip's IC chip is listed above for full compatibility.
