Microconnect FIB447002 cavo InfiniBand/fibra ottica 2 m LC giallo

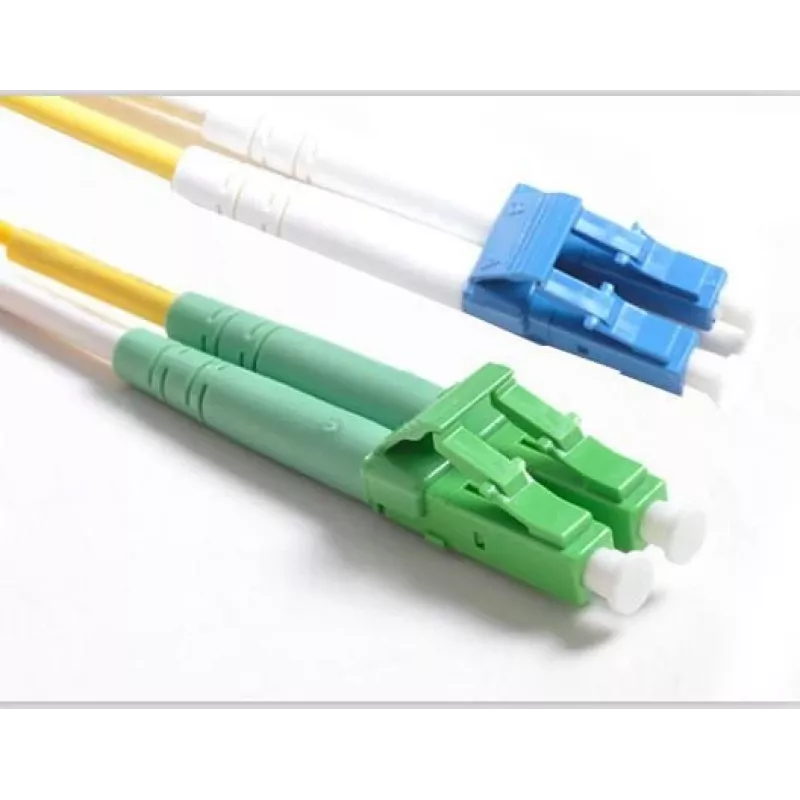

The Microconnect FIB447002 is a 2 m single mode fibre optic patch cable with LC to LC connectors and OS2 (9 µm) fibre. Designed for enterprise networks, telecom rooms, server farms and cloud storage networks, this yellow cable provides low-loss, high-speed transmission for 1G/10G/40G/100G Ethernet and InfiniBand connections. It is suitable for link distances up to 10 km at 1310 nm and up to 40 km at 1550 nm and is constructed with LSZH jacket material that meets common industry standards (IEC, EIA/TIA or Telcordia).

Advantages

The LC OS2 fibre with 9 µm core diameter ensures minimal attenuation and stable performance over long distances. The 2 m length and LC to LC connectors make the cable easy to route and connect in patch panels and equipment with LC ports. The yellow LSZH jacket helps with visual identification and reduces smoke and toxic gas emission in case of fire, complying with typical telecom and data centre requirements.

Suitable for

• Enterprise LAN and campus networks
• Telecom rooms and data centre rack connections
• Server farms and cloud storage interconnects
• 1G/10G/40G/100G Ethernet and InfiniBand links
• Long-distance fibre links (up to 10 km @1310 nm, up to 40 km @1550 nm)

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB447002
• Length: 2 m
• Connectors: LC — LC
• Fibre type: OS2 (single mode), core 9 µm
• Colour: Yellow
• Jacket: LSZH
• Suitable for: 1G/10G/40G/100G Ethernet, InfiniBand
• Typical reach: up to 10 km @1310 nm, up to 40 km @1550 nm
• EAN: 5704327537205

How to use

Inspect connectors and fibre ends for cleanliness before installation. Route the 2 m LC—LC patch cable between LC ports on patch panels, switches or transceivers, avoiding tight bends and mechanical stress. Insert LC connectors until they click and verify link status on networking equipment. For optimal performance, use appropriate transceivers compatible with OS2 single mode fibre and observe manufacturer guidelines for connector mating and cleaning.

Recommendations

The cable is intended for indoor use in telecom rooms and data centres; avoid outdoor exposure unless additional protection is provided. Store and handle the fibre carefully to prevent bending below the minimum bend radius and clean connectors with approved fibre cleaning tools before mating.
