Microconnect KON522TL connettore RJ45 argento

Microconnect KON522TL connettore RJ45 argento
Microconnect KON522TL connettore RJ45 argento
Microconnect KON522TL connettore RJ45 argento
60 mesi
Microconnect KON522TL connettore RJ45 argento
Microconnect KON522TL connettore RJ45 argento
Microconnect KON522TL connettore RJ45 argento
19,86 €
PDF
PDF
Stock 53 Codice 1182213 Modello KON522TL Garanzia 5 anni

Spedizioni e resi

Consegna stimata lunedì 7 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

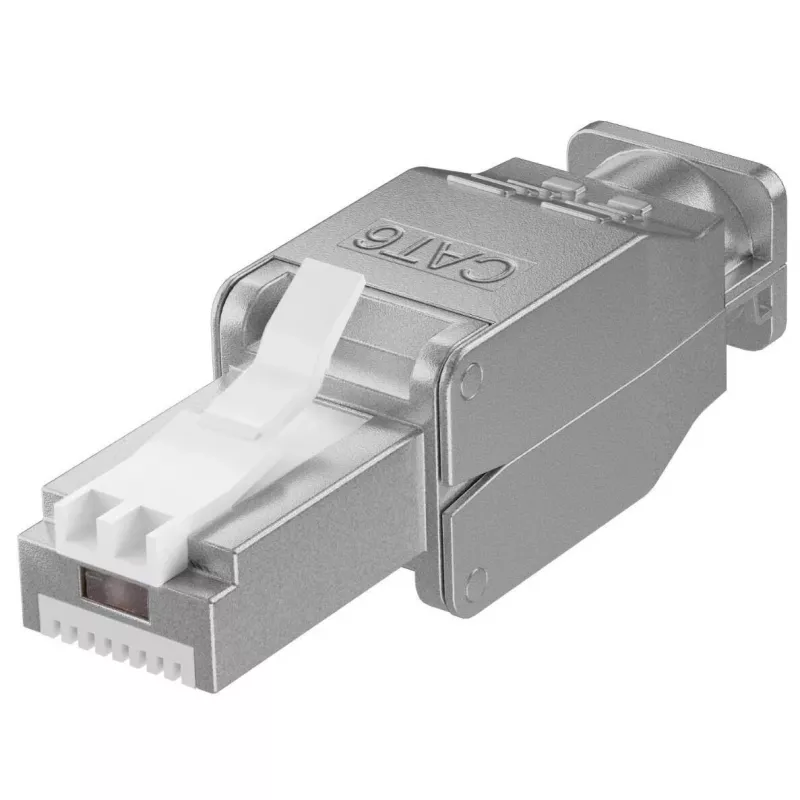

The Microconnect KON522TL is a silver RJ45 wire connector designed for CAT6 STP cables with support for both stranded and solid inner conductors (AWG 22–24). Lightweight and compact at 10 g, the single-piece pack suits individual network installations and small projects, providing a reliable physical interface for Ethernet cabling.

Advantages

The KON522TL supports CAT6 shielded (STP) cabling and accepts both stranded and solid conductors in the AWG 22–24 range, ensuring compatibility with common CAT6 wiring. Its silver finish and RJ45 form factor deliver standardised connectivity while the compact, single-unit packaging simplifies handling and storage.

Suitable for

  • Termination of CAT6 STP cables with AWG 22–24 stranded conductors
  • Termination of CAT6 STP cables with AWG 22–24 solid conductors
  • Small network installations and individual patching tasks

Key specifications

  • Brand: MicroConnect
  • Model: KON522TL
  • Connector: RJ45
  • Cable type: CAT6 STP (shielded)
  • Conductor compatibility: Stranded and solid, AWG 22–24
  • Colour: Silver
  • Weight: 0.01 kg (10 g)
  • MPN: KON522TL
  • EAN: 5706998848444

How to use

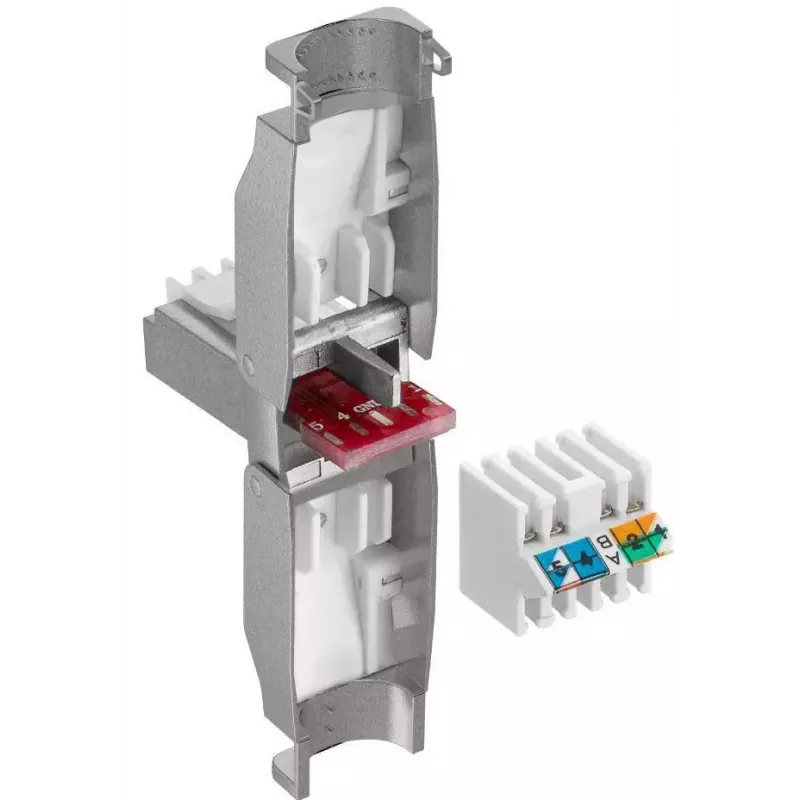

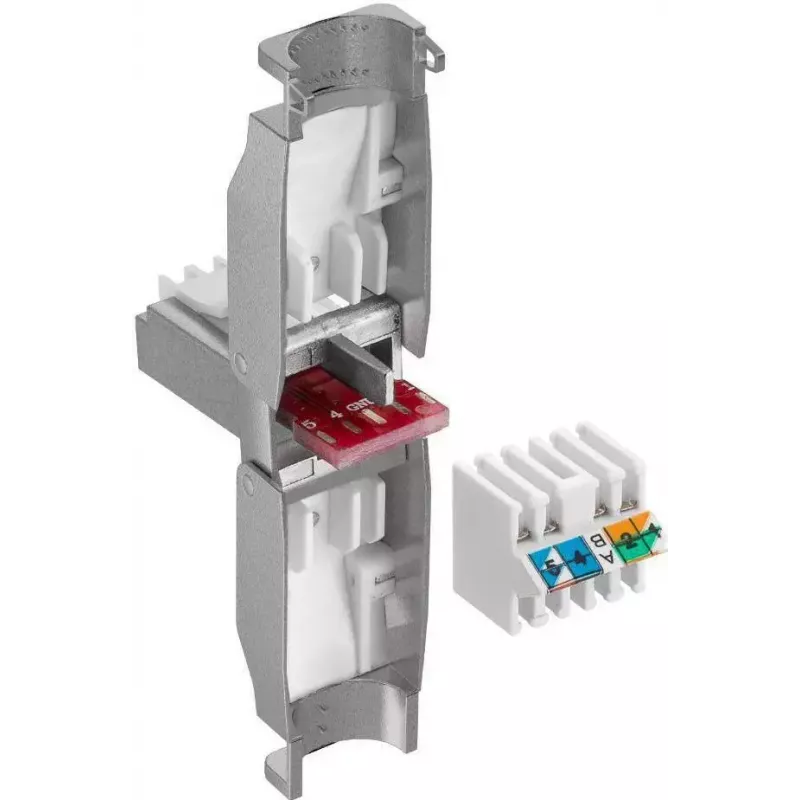

Prepare the CAT6 STP cable by stripping the outer jacket and exposing the shield according to standard practice. Untwist pairs to the minimum required length, then insert the individual conductors into the RJ45 connector following the chosen wiring scheme (e.g., T568A/B). Ensure the shield and drain wire are correctly positioned where required by the connector design. Crimp or terminate the connector with the appropriate tool compatible with the KON522TL to secure the contacts and shield connection.

Recommendations

Use a compatible crimping/termination tool and follow industry wiring standards (T568A/T568B). Verify conductor type (stranded or solid) before installation and test the terminated link with a network cable tester to confirm continuity and shielding effectiveness.
Punti salienti
  • Termination of CAT6 STP cables with AWG 22–24 stranded conductors
  • Termination of CAT6 STP cables with AWG 22–24 solid conductors
  • Small network installations and individual patching tasks
  • Brand: MicroConnect
  • Model: KON522TL
  • Connector: RJ45
  • Cable type: CAT6 STP (shielded)
  • Conductor compatibility: Stranded and solid, AWG 22–24
  • Colour: Silver
  • Weight: 0.01 kg (10 g)
  • MPN: KON522TL
  • EAN: 5706998848444

Specifiche

Specifiche
Altezza confezione
16 mm
Colore del prodotto
Silver
Connettori
RJ45
Larghezza confezione
157 mm
Peso
10 g
Peso confezione
20 g
Profondità confezione
119 mm
Quantità per confezione
1 pc(s)
Schermatura del cavo
U/UTP (UTP)
Sezione del conduttore (AWG)
22/24
Standard del cavo
Cat6

Brochure

Apri documento
Storico prezzi degli ultimi 6 mesi
Microconnect KON522TL connettore RJ45 argento
Attuale
19,86 €
Minimo 7 gg
19,61 €
Massimo 7 gg
19,86 €
Variazione 24 h
0,00 €   0%
Variazione 7 gg
+0,24 €   +1%
Variazione 30 gg
0,00 €   0%
