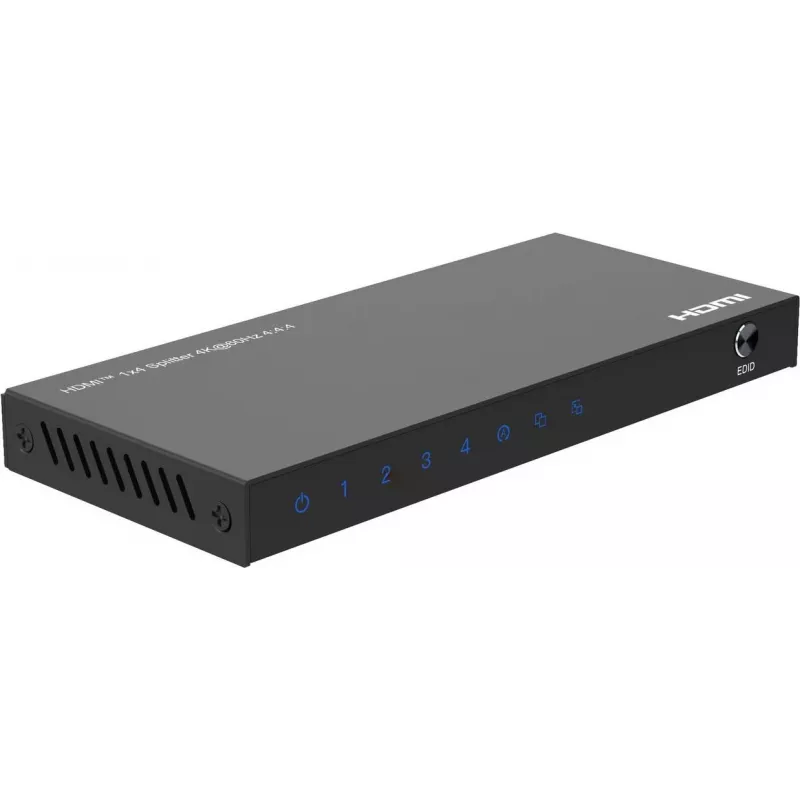

Microconnect MC-HDMISPLITTER0104-4K splitter HDMI 4K 1x4 - nero

Running out of HDMI ports on your TV or projector? The Microconnect MC-HDMISPLITTER0104-4K splits a single 4K HDMI source into four identical outputs, so you can show the same Ultra HD content on multiple displays simultaneously without signal degradation.

Who is it for

This splitter is ideal for digital signage, conference rooms, classrooms, retail displays, and home theaters where one source—like a media player, laptop, or set-top box—needs to feed up to four screens at once. It works with any HDMI 1.4 source and supports resolutions up to 3840 x 2160 at 30Hz.

Main features

• 1 HDMI input to 4 HDMI outputs
• Supports 4K Ultra HD (3840 x 2160) at 30Hz
• HDMI 1.4 and HDCP 1.4 compliant
• Data transfer rate up to 10.2 Gbps
• Plug and play – no drivers or software needed
• Durable steel housing for long-term reliability
• Includes external 5V DC power adapter

Specifications

• Input: 1 x HDMI Type A female
• Outputs: 4 x HDMI Type A female
• Maximum resolution: 3840 x 2160 pixels (4K UHD) @ 30Hz
• HDMI standard: 1.4
• HDCP version: 1.4
• Bandwidth: 10.2 Gbps
• Audio: HDMI pass-through (up to 7.1 channels)
• Power: External 5V DC adapter (included)
• Material: Steel
• Colour: Black
• Dimensions (W x D x H): 136.3 x 61.5 x 14.5 mm
• Package contents: HDMI splitter, power cable, manual, rubber feet

Tips

For best results, use high-quality HDMI cables that support 4K and keep total cable length under 5 meters per output. The splitter mirrors the same signal to all displays; it does not extend or switch between sources. If you need independent content on each screen, consider an HDMI matrix switch instead.
