Modulo keystone Hypertec 272870-HY piatto nero RJ-45

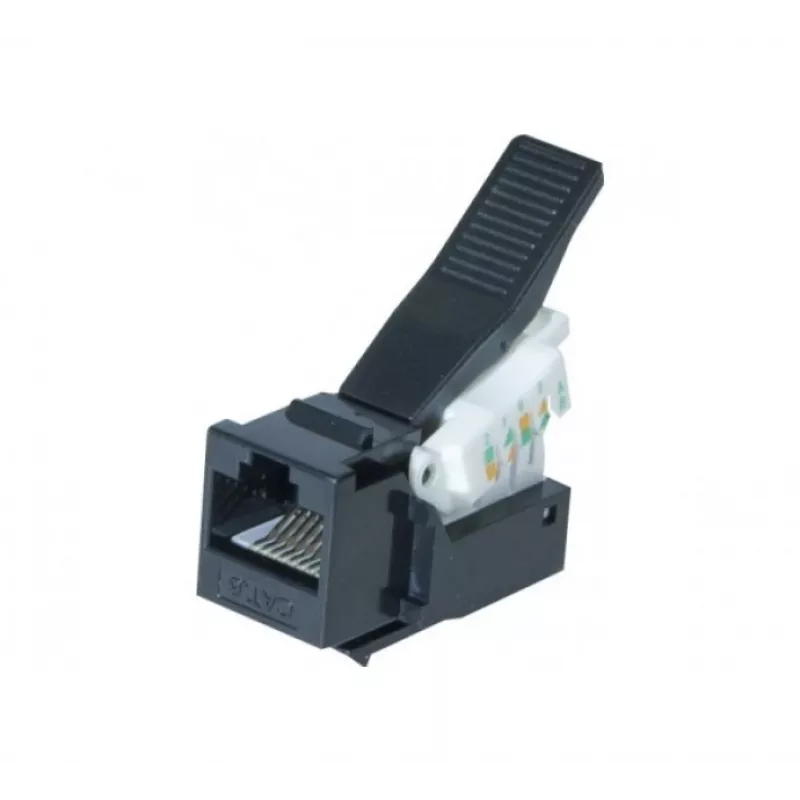

The Hypertec 272870-HY Keystone Module is a flat, short-sized Cat6 UTP insert in black with an integrated RJ-45 port. Designed for patch panels, wall plates and keystone housings, this compact module provides a straightforward way to terminate Cat6 unshielded twisted-pair cabling and integrate it into standard network outlets.

Advantages

This Keystone module has a low-profile flat construction that fits standard keystone openings and saves space in wall plates and patch panels. The RJ-45 interface supports Cat6 performance for Ethernet connections, and the module is supplied in a neutral black finish to match common faceplates. It is intended for easy installation and reliable mechanical and electrical contact when used with compatible keystone frames and jacks.

Suitable for

Key specifications

How to use

Prepare the Cat6 UTP cable by stripping the outer jacket and arranging the conductor pairs according to the intended wiring scheme (T568A or T568B). Punch down or terminate each conductor into the module following the module's wiring labels, then snap the keystone module into a compatible wall plate or patch panel until it locks. Connect an Ethernet patch cable to the RJ-45 port to complete the link and verify connectivity with standard network testing tools.

Recommendations

Use compatible keystone frames and high-quality Cat6 UTP cabling for reliable electrical performance. Observe local installation standards and test each link after termination to confirm signal integrity and correct wiring.
