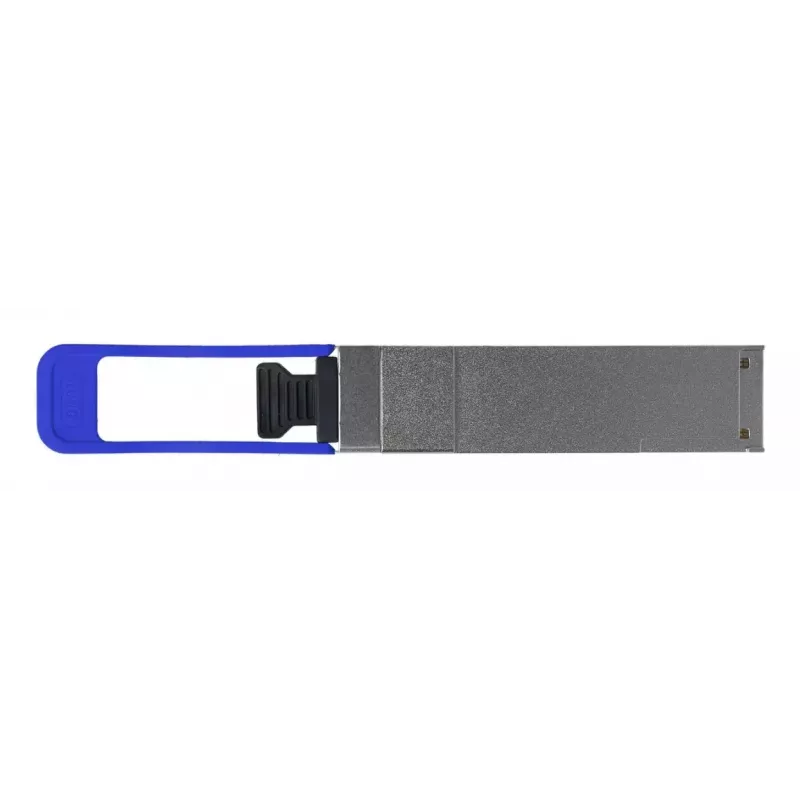

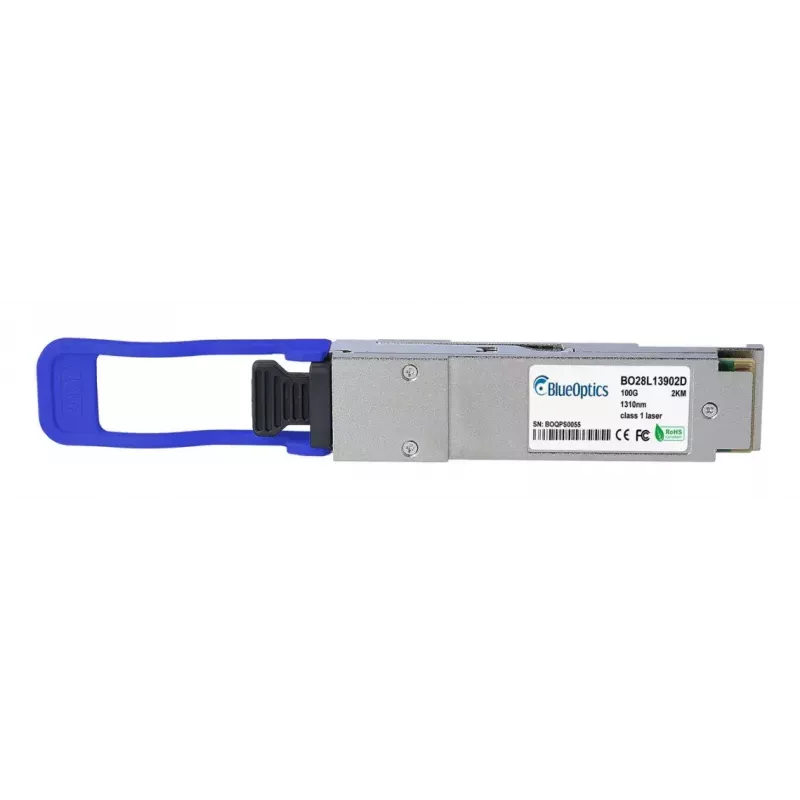

Modulo ricetrasmettitore in fibra ottica BlueOptics 10405-BO QSFP28 MTP/MPO

The BlueOptics 10405-BO QSFP28 MTP/MPO is a 100G-class fiber optic transceiver module designed for high-speed data transmission over single-mode fiber. The module uses a QSFP28 interface and an MTP/MPO multi-fiber connector and is housed in an aluminium enclosure with a net weight of approximately 40 g. It is intended for use in network equipment that accepts QSFP28 form-factor transceivers and supports 100G optical links with low-latency operation and robust physical design.

Advantages

The BlueOptics 10405-BO QSFP28 combines a compact QSFP28 form factor with an MTP/MPO connection to provide space-efficient, high-density optical links. The aluminium body offers mechanical durability and thermal dissipation. The module is compatible with standard QSFP28 interfaces and is suitable for installations where a small, lightweight transceiver with reliable optical performance is required. Built to industry MSA guidelines, it is intended to integrate into existing 100G network deployments that use MTP/MPO cabling.

Suitable for

• 100G uplinks between switches and routers in data centers
• High-density optical patch panels and cross-connects
• Server and storage interconnects that accept QSFP28 transceivers

Key specifications

• Interface type: QSFP28
• Connector: MTP/MPO multi-fiber connector
• Casing material: aluminium
• Weight: approximately 0.04 kg
• Supported medium: single-mode fiber (optical)

How to use

Insert the BlueOptics 10405-BO QSFP28 module into a compatible QSFP28 port on your switch, router or other network device following the host equipment manufacturer’s installation procedure. Connect an MTP/MPO-terminated single-mode fiber patch cord to the module’s connector, taking care to align polarity and fiber mapping according to your network design. Ensure the host device recognizes the transceiver and configure link settings as required by your network management system. Verify link status and optical power levels after installation.

Recommendations

Use quality single-mode MTP/MPO patch cords and proper cable management to maintain signal integrity and reach. Confirm that the host hardware supports QSFP28 transceivers and any digital diagnostics features you require. Handle the module with care to avoid contamination of the optical connector; keep protective dust caps on the connector when not in use.
