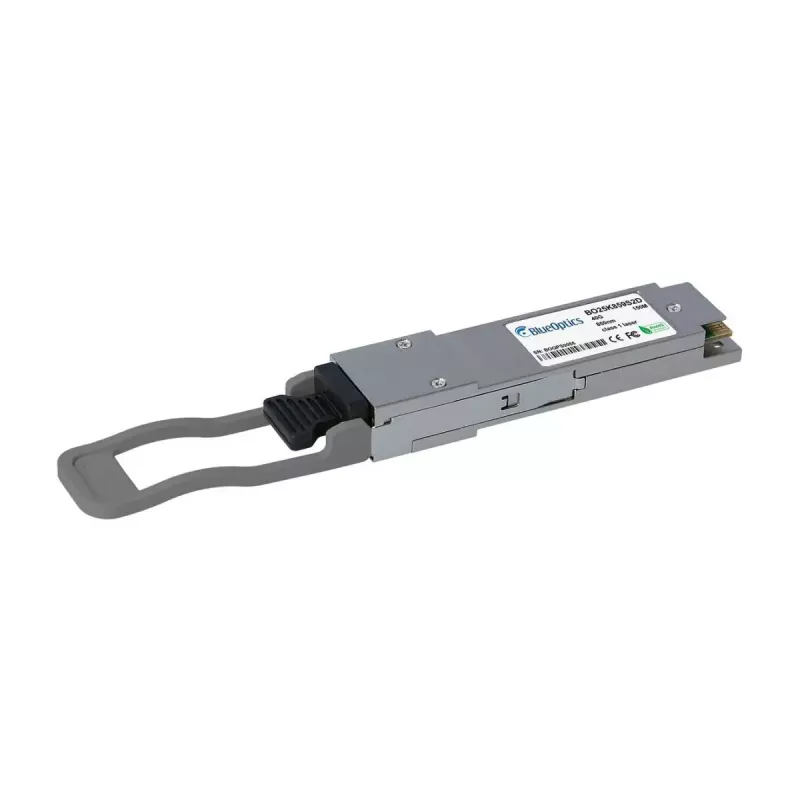

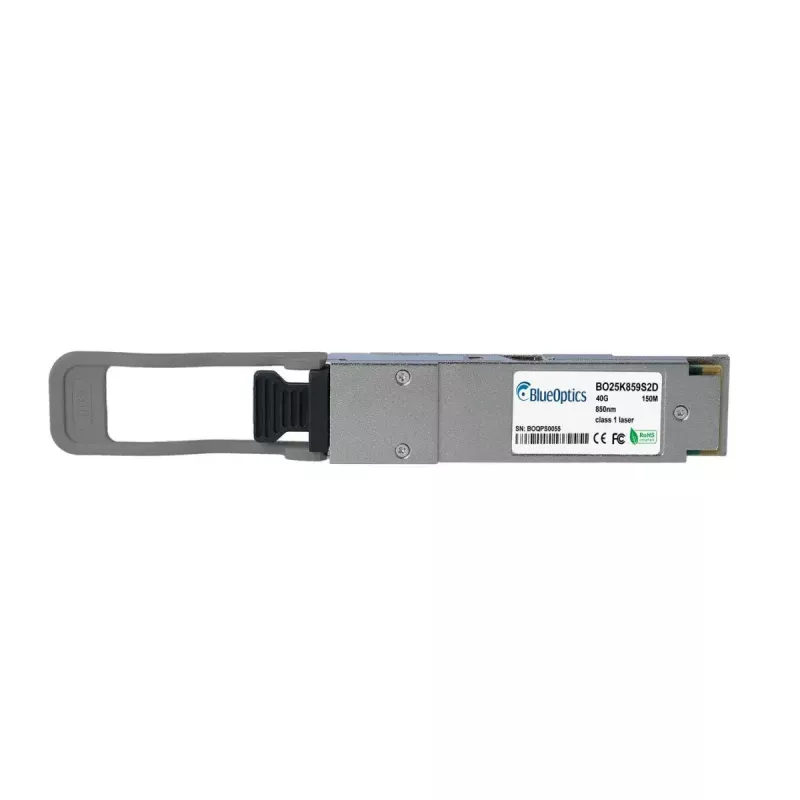

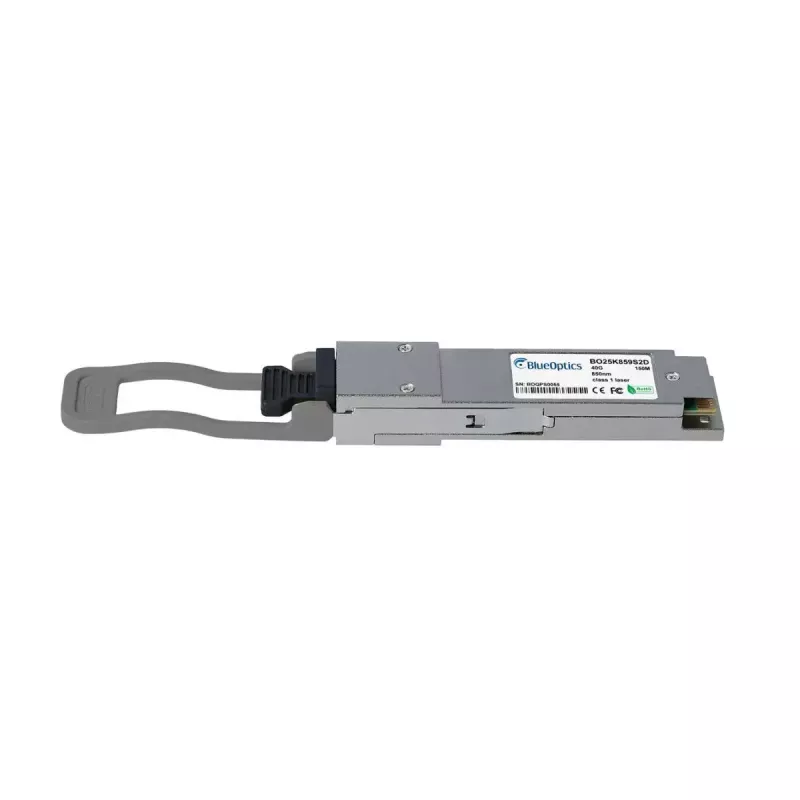

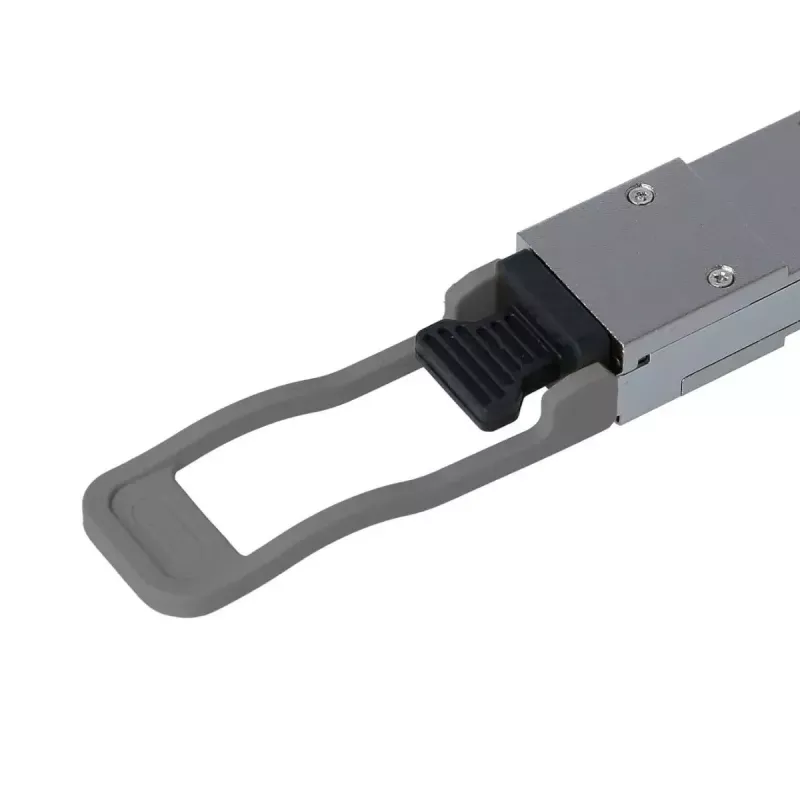

Modulo ricetrasmettitore in fibra ottica BlueOptics 57-1000339-01-BO 40000 Mbit/s QSFP

The BlueOptics 57-1000339-01-BO is a metal-bodied fiber optic transceiver module with a QSFP interface designed for 40 Gigabit Ethernet connections. It supports a maximum data transfer rate of 40000 Mbit/s over multimode fiber and uses LC duplex connectors. The module is intended for short-range optical links up to 100 m and is specified with a mean time between failures (MTBF) of 1,000,000 hours, providing a durable option for high-speed network environments.

Advantages

This transceiver combines a QSFP form factor with LC duplex fiber interfaces to provide compact, high-density 40 Gigabit Ethernet connectivity. The metal housing contributes to mechanical robustness and thermal stability in rack-mounted network equipment. With support for multimode fiber and a specified 100 m reach, the module is suitable for data center and server-rack interconnects where short-range, high-bandwidth links are required. The stated MTBF of 1,000,000 hours indicates an emphasis on long service life and reduced maintenance cycles.

Suitable for

• 40 Gigabit Ethernet links between switches and aggregation devices
• Short-reach server-to-switch and switch-to-switch connections in data centers (up to 100 m)
• High-density rack environments requiring QSFP interface modules

Key specifications

• Maximum data transfer rate: 40000 Mbit/s
• Maximum transfer distance: 100 m (multimode fiber)
• Ethernet interface type: 40 Gigabit Ethernet
• Fiber optic connector: LC duplex
• Housing material and colour: metal; grey/silver
• Weight: 0.04 kg
• Interface form factor: QSFP

How to use

Install the BlueOptics QSFP transceiver into a compatible QSFP port on your switch, router or network appliance following the host device manufacturer’s insertion and removal procedures. Connect LC duplex multimode fiber patch cords between transceivers or to a patch panel, ensuring correct polarity. Verify link status and speed on the host device and confirm that the platform supports 40 Gigabit Ethernet over the selected fiber type and reach. If the host system supports digital diagnostics, enable monitoring to view supply voltage, optical power and temperature data where available.

Recommendations

Use high-quality multimode LC patch cords and properly rated patch panels to achieve the specified 100 m reach. Match the transceiver optics to the multimode fiber type in your installation (OM3/OM4) and confirm host compatibility for QSFP modules and digital diagnostics if remote monitoring is required.
