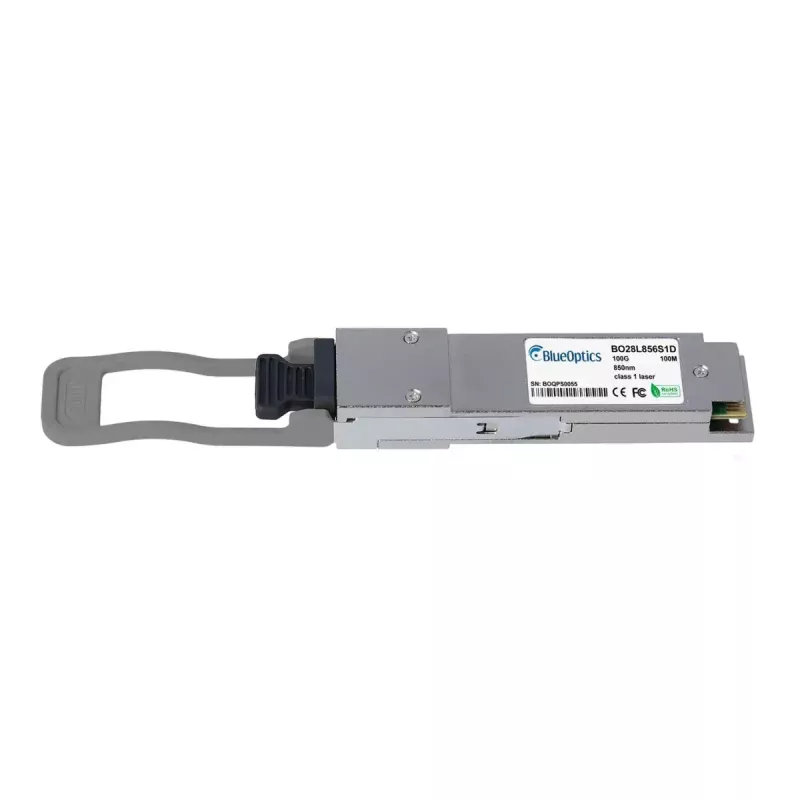

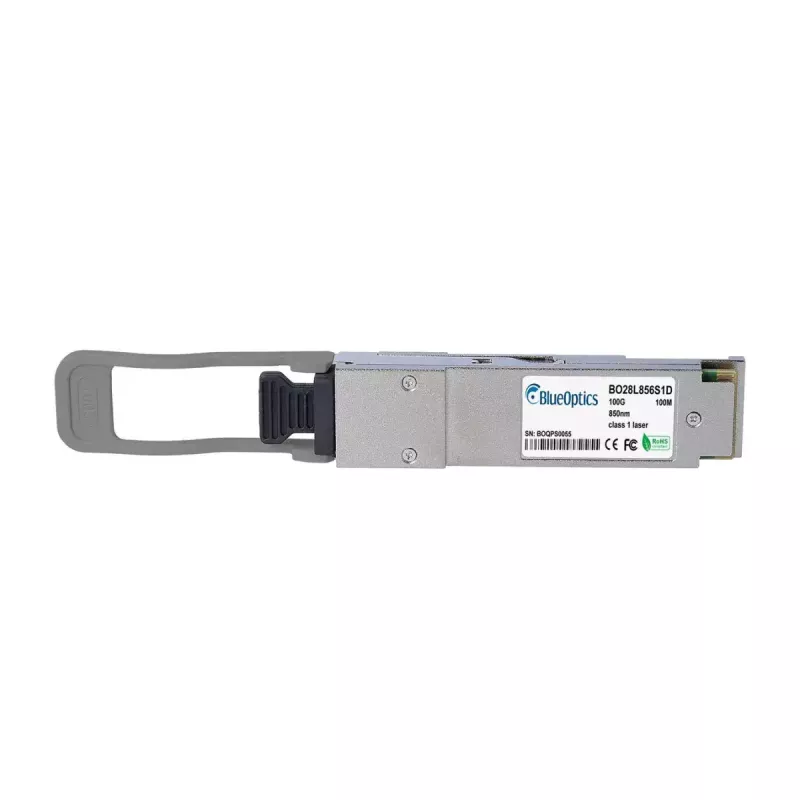

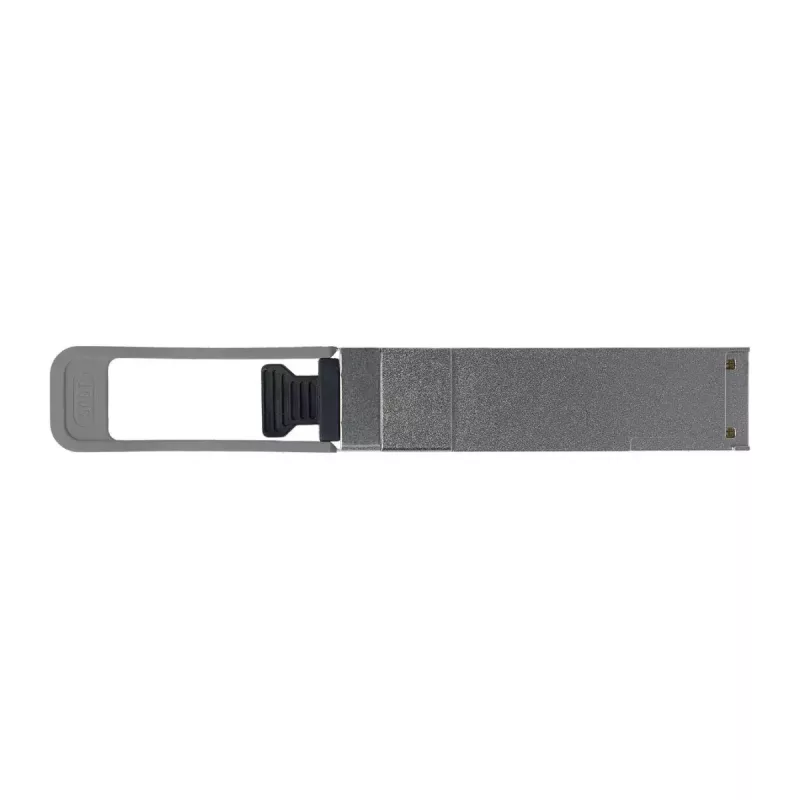

Modulo ricetrasmettitore in fibra ottica BlueOptics QSFP-100G-SRBD-BO QSFP28 LC alluminio 40g

The BlueOptics QSFP-100G-SRBD-BO is a 100G QSFP28 fiber optic transceiver module with an LC duplex interface and aluminium housing, designed for multimode fiber links. Engineered for high-speed data transmission, this module supports 100GBASE-SR2 applications and is compatible with equipment that accepts QSFP28 form-factor transceivers. It is lightweight (approximately 40 g) and intended for installation in switches, routers and other network devices that support QSFP28 pluggable optics.

Advantages

This transceiver implements the QSFP28 QSFP-100G-SRBD specification for short-range 100 Gbit/s multimode links and provides simultaneous transmit and receive channels via LC duplex connectors. It supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of parameters such as supply voltage, laser bias current, temperature and optical power. Manufactured to MSA-compliant mechanical and optical standards, the module uses industry-grade components to deliver long operational lifetime and stable performance in data center and enterprise environments.

Suitable for

Key specifications

How to use

Install the QSFP-100G-SRBD-BO into a compatible QSFP28 port following the host equipment manufacturer's hot-plug precautions. Connect LC duplex multimode fiber patch cords to the module's LC receptacles, ensuring correct transmit-to-receive alignment. Verify link parameters and DDM values via the host management interface if supported. Use appropriate fiber type and patching—OM3/OM4 multimode cables are commonly recommended for short-reach 100GBASE-SR2 links.

Recommendations

Ensure the target switch, router or other network device explicitly supports third-party QSFP28 transceivers and the DDM/DOM feature if you plan to use diagnostics. Use clean LC connectors and follow ESD and handling guidelines when installing the aluminium-housed transceiver. For best performance on 100GBASE-SR2 links, use OM3 or OM4 multimode fiber and keep link distances within the module's supported short-reach range.
