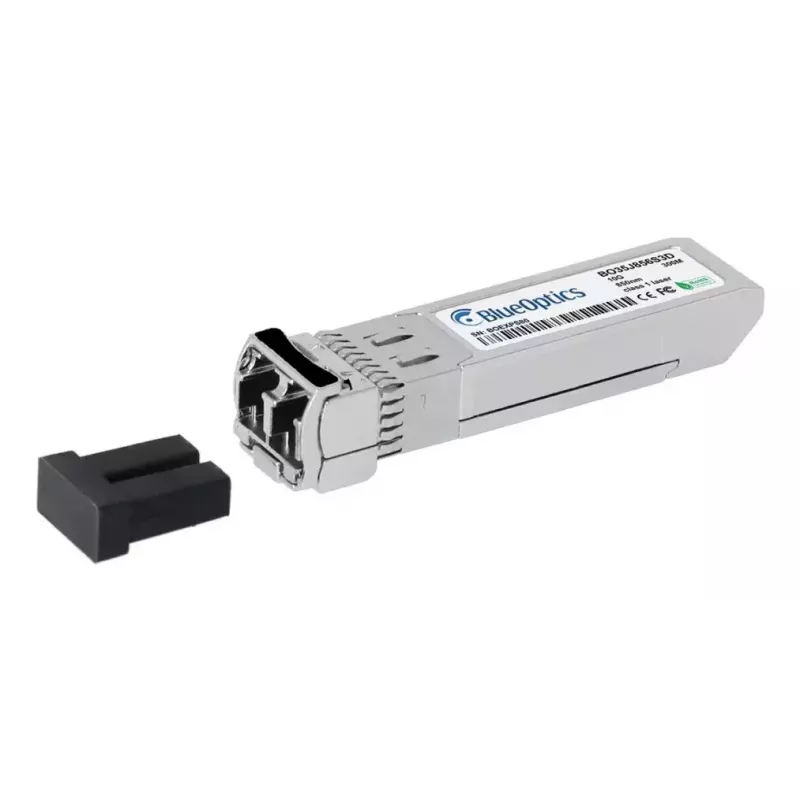

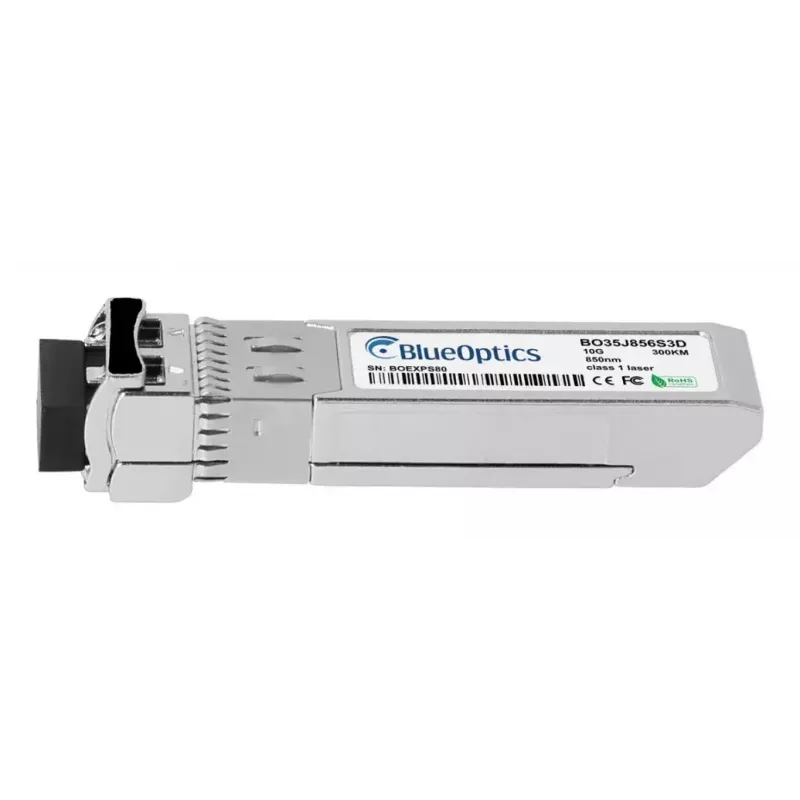

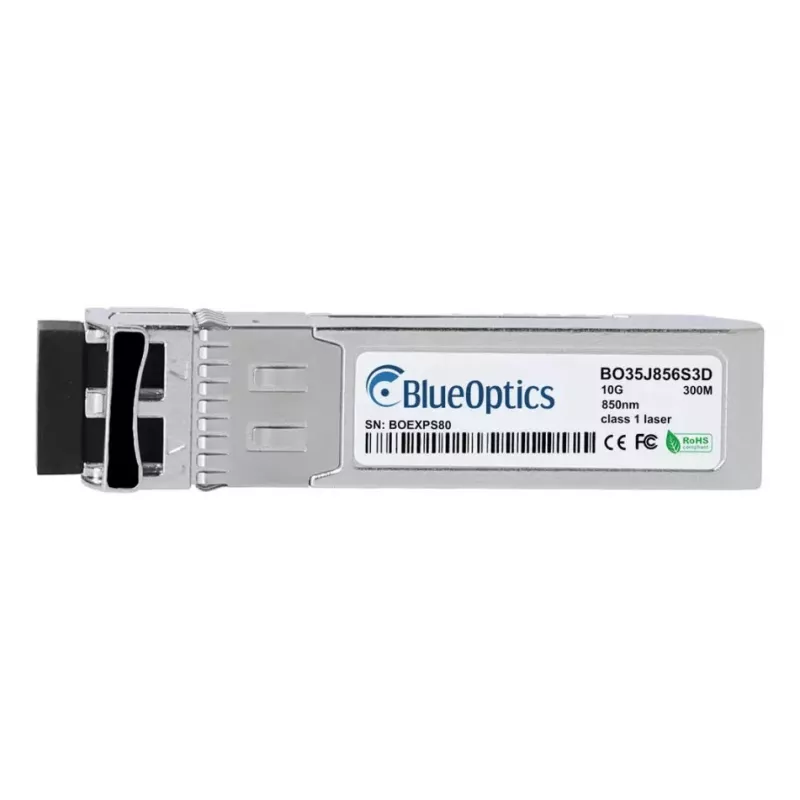

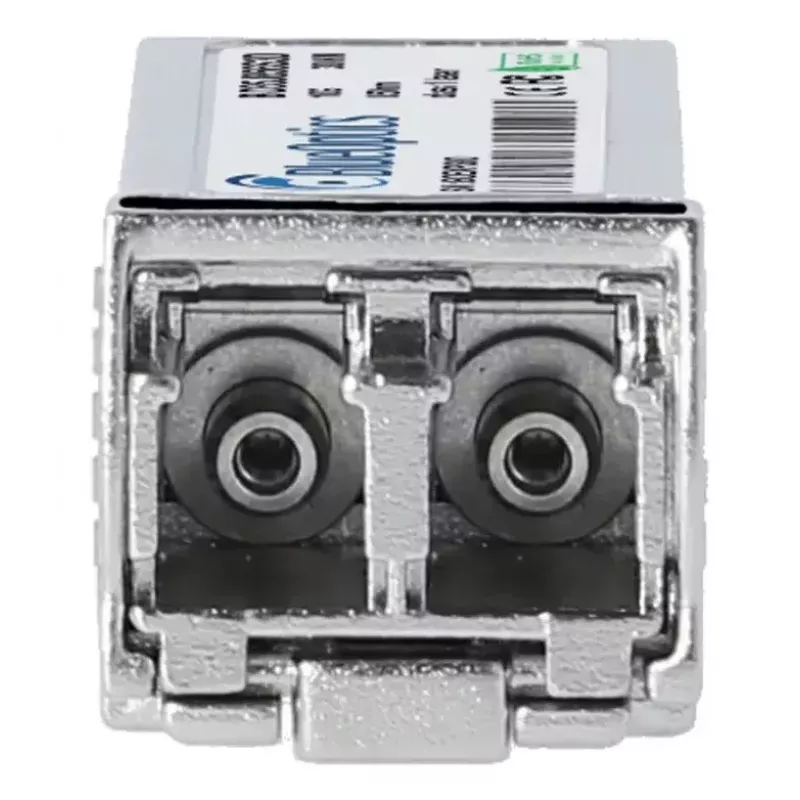

Modulo ricetrasmettitore in fibra ottica BlueOptics MP-S851X3-NCLM5-BO 10000 Mbit/s SFP+

The BlueOptics MP-S851X3-NCLM5-BO is a 10G SFP+ fiber optic transceiver module designed for high-speed multimode optical links. It supports a maximum data transfer rate of 10000 Mbit/s and uses an LC duplex connector with 850 nm transmitter and receiver wavelengths according to 10GBASE-SR specifications. The module is compliant with CE, RoHS and FCC standards and is suitable for installation in SFP+ ports of switches, routers, storage systems and other network devices that accept MSA-compatible 10GBASE-SR SFP+ modules.

Advantages

This SFP+ transceiver offers MSA-compliant form factor and LC duplex multimode connectivity enabling simple insertion into compatible ports. The integrated transmitter and receiver at 850 nm support short-range 10GBASE-SR links over multimode fiber while the module's tested compatibility with common hardware platforms reduces integration effort. Built from quality optical and electronic components, the transceiver includes digital diagnostics capability for real-time monitoring of supply voltage, laser current, transmit/receive power and temperature where supported by the host device.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP+ module into an empty SFP+ slot of an active network device until it clicks into place. Connect LC duplex multimode fiber patch cords to the module, ensuring correct orientation of transmit and receive fibers. If the host device supports digital diagnostics, enable access to DDM/DOM data in the device management interface to monitor operating parameters such as temperature, supply voltage and optical power. For safe removal, shut down the port according to the equipment manufacturer's procedure and gently extract the module using the release mechanism.

Recommendations

Use multimode fiber (OM3/OM4) for reliable 10GBASE-SR performance at the intended short-reach distances, keep fiber connectors clean, and verify DDM/DOM readings after installation. Confirm host device compatibility with MSA-compliant SFP+ modules prior to deployment and follow manufacturer guidance for hot-plugging and port enablement.
